2.9 Inch 4-Color E-Ink E-Paper Display SPI 384×168 Electronic Paper Display Module

2.9 Inch 4-Color E-Ink E-Paper Display SPI 384×168 Electronic Paper Display Module

$9.16 USD
$9.16 USD
Sale Sold out
2.9 Inch E Ink Display Solution
For product datasheet and technical support, welcome to contact us at support@youritech.com;
Regarding project mass production needs, please share the FORECAST to info@youritech.com for receiving volume discount pricing.
View full details

Product Introduction

Electronic Paper Display
2.9 Inch 4-Color E-Ink E-Paper Display 384×168 SPI Electronic Paper Display Module Overview

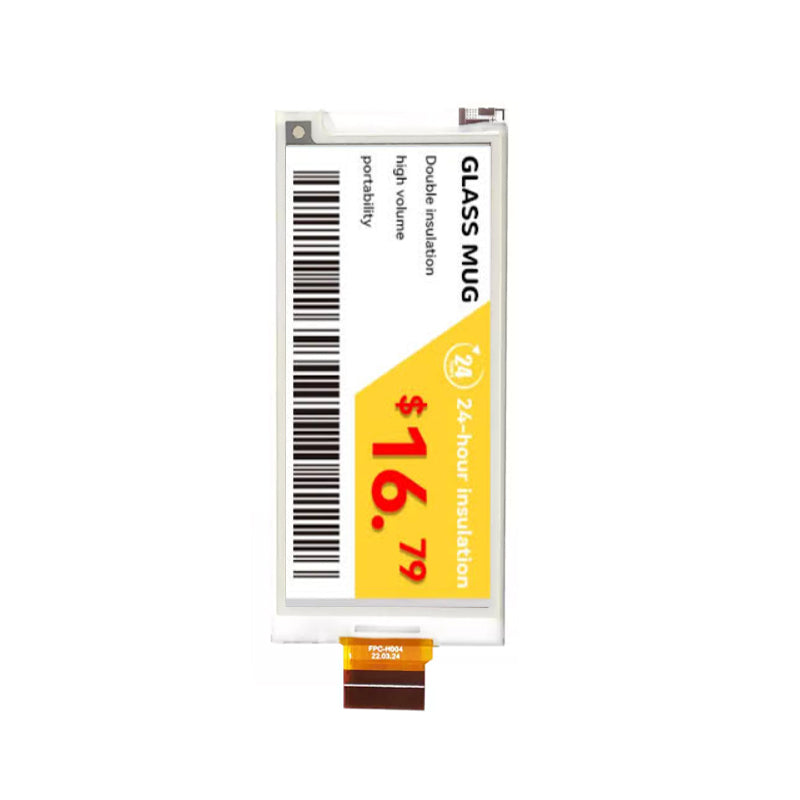

ET029EP03-Y is a 2.9 inch diagonal 4-color E-Ink E-Paper display module featuring electronic paper display (EPD) technology with black, white, red, and yellow color support for vivid and power-efficient image presentation. ET029EP03-Y supports a 384×168 resolution with a wide aspect ratio, delivering crisp text, icons, and graphics for applications such as electronic shelf labels, smart retail signage, industrial instruments, and IoT devices. The module adopts an SPI interface for simple system integration and ultra-low power operation. It features an active area of 67.58(W) × 29.57(H) mm, an outline dimension of 79.98(W) × 35.57(H) × 1.0(D) mm, and operates reliably within a 0°C to 40°C operating temperature range, with a storage temperature of -25°C to 60°C. Designed without a touch panel, the ET029EP03-Y provides a paper-like viewing experience with high contrast, a wide viewing angle, and bistable display performance, making it an ideal display solution for battery-powered electronic paper applications.
2.9 Inch 4-Color E-Ink E-Paper Display 384×168 SPI Electronic Paper Display Module
2.9 Inch E Ink Display  Specification

Part No. ET029EP03-Y Size 2.9 inch
Resolution 384 × 168 Display Mode EPD
Panel Interface SPI Touch Panel No

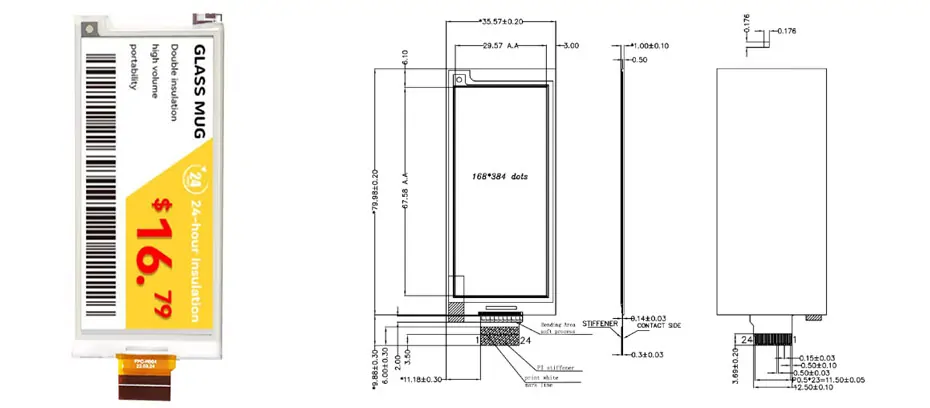

Outline Dimension 79.98 × 35.57 × 1.0 mm Active Area 67.58 × 29.57 mm
Viewing Angle (L/R/U/D) N/A Brightness N/A
Operation Temp. 0 ~ 40°C Storage Temp. -25 ~ 60°C

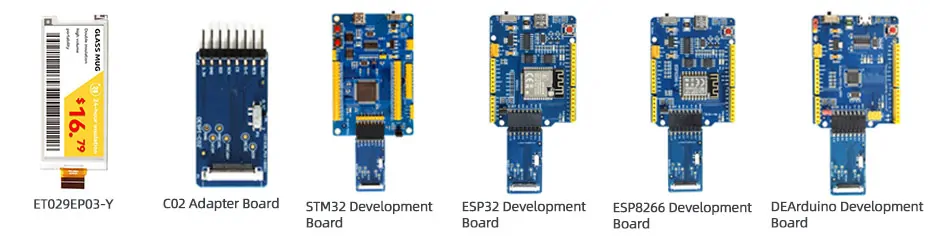

2.9 Inch E Ink Display Solution For Reference
ET029EP03-Y

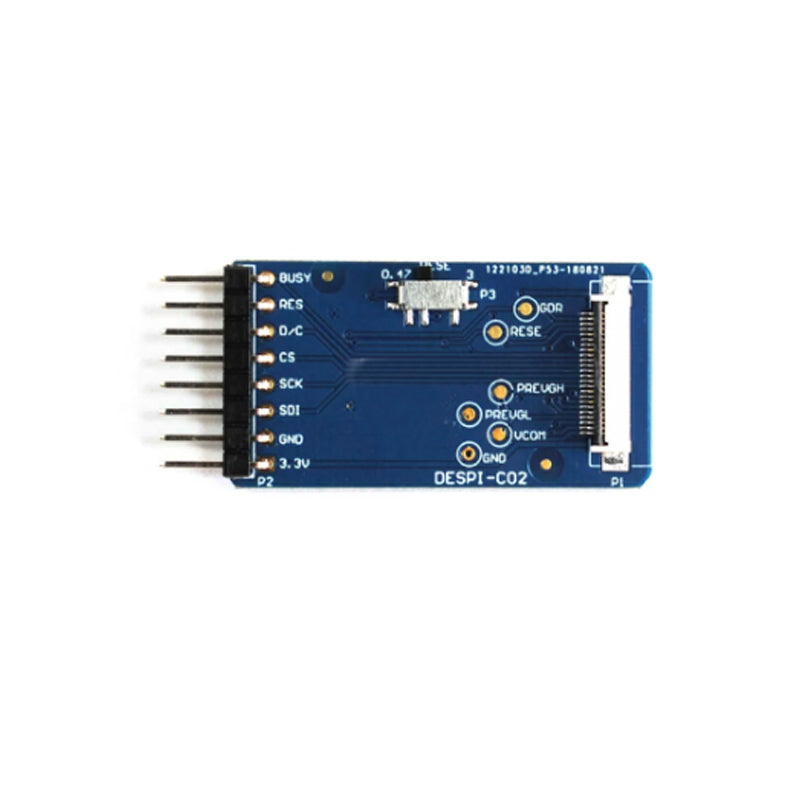

C02 Adapter Board

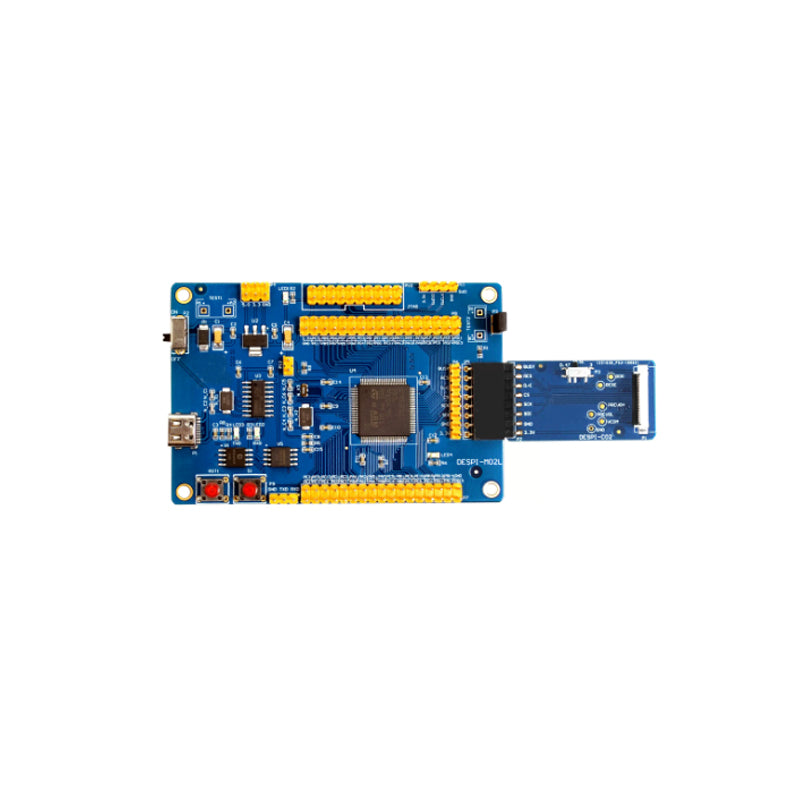

STM32 Development Board

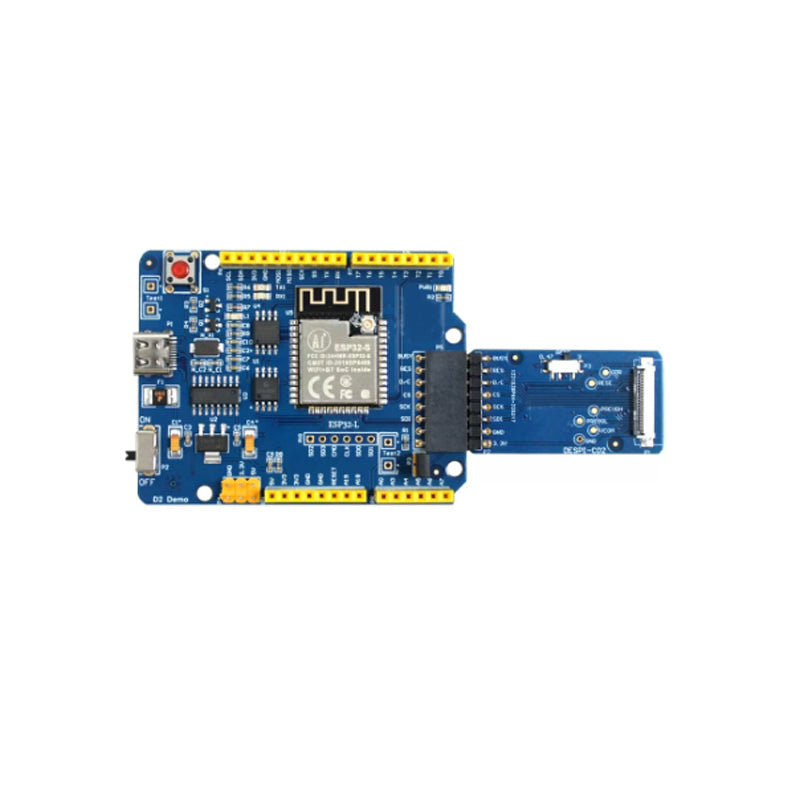

ESP32 Development Board

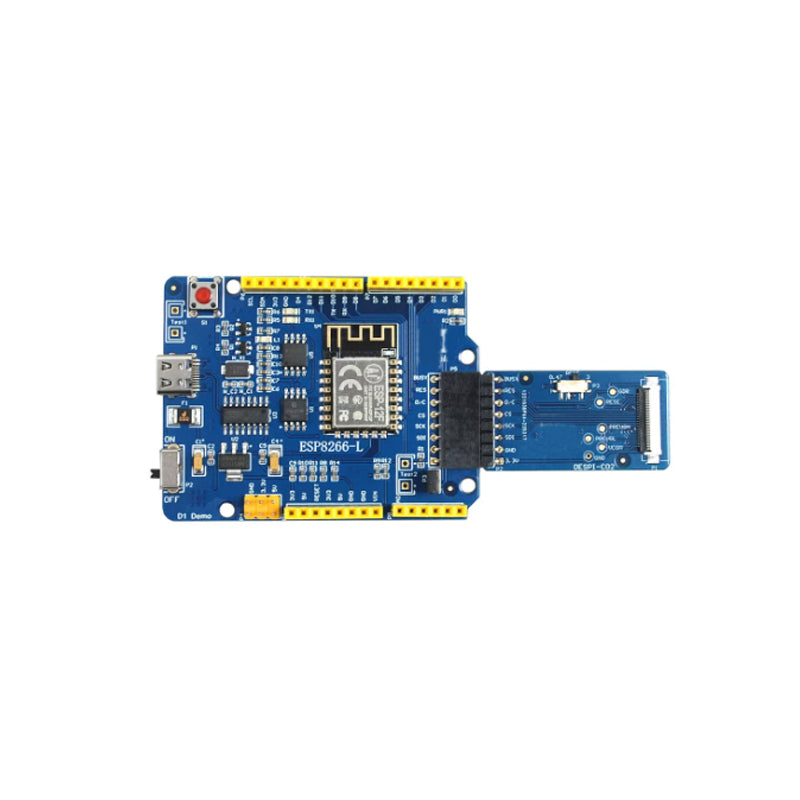

ESP8266 Development Board

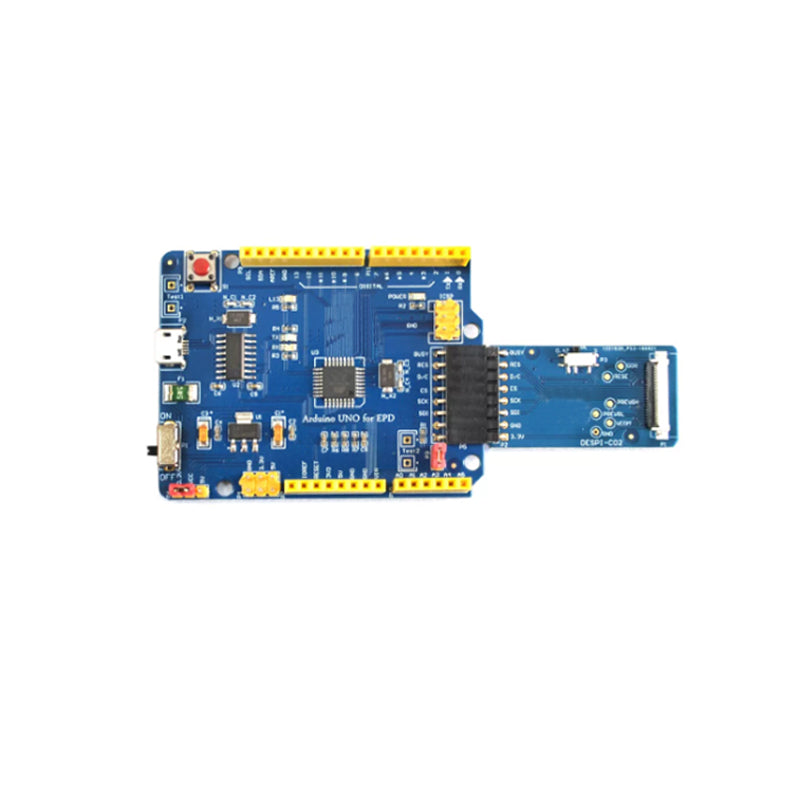

Arduino Development Board
2.9 Inch 4-Color E-Ink E-Paper Display 384×168 SPI Electronic Paper Display Module

Features For Youritech E-Paper Display
Features For Youritech E-Paper Display
Color E-Paper Module Features_07

Full-Color Display
-Rich, vibrant visuals for enhanced communication.
Ultra-Low Power
-Consumes power only during screen updates.
Sunlight Readable
-Clear visibility in bright outdoor environments.
Paper-Like Viewing
-Comfortable, glare-free reading experience.
No Backlight
-Uses ambient light to reduce power consumption.
Always-On Display
-Retains images without continuous power.
Wide Viewing Angle
-Consistent image quality from any direction.
Long Battery Life
-Ideal for battery-powered applications.
Thin & Lightweight
-Easy integration into compact devices.
Multiple Color Options
-Available in B/W/Red, B/W/Yellow, four-color, and full-color versions.

Applications For Youritech E-Paper Display

-Electronic Shelf Labels (ESL)
-Retail Digital Signage
-Smart Labels
-Advertising Displays
-Public Information Displays
-Transportation Signage
-Medical Information Displays
-Smart Home Control Panels
-Conference & Event Badges
-Industrial IoT Displays
