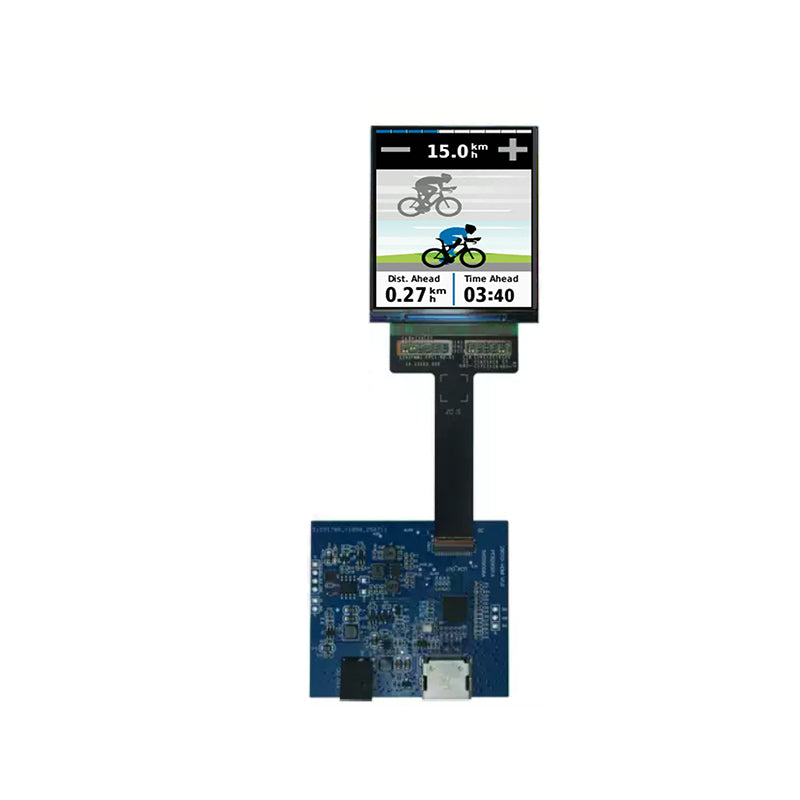

2.9 Inch AMOLED Display 1080x1200 MIPI With On Cell Capacitive Touch Flexible AMOLED

2.9 Inch AMOLED Display 1080x1200 MIPI With On Cell Capacitive Touch Flexible AMOLED

$170.22 USD
$170.22 USD
Sale Sold out
ET029AM01-K-HDMI
For product datasheet and technical support, welcome to contact us at support@youritech.com;
Regarding project mass production needs, please share the FORECAST to info@youritech.com for receiving volume discount pricing.
View full details

Product Introduction


2.9 Inch AMOLED Display Overview

ET029AM01-K-HDMI is a 2.95-inch AMOLED display module featuring a resolution of 1080 × 1200 pixels, delivering sharp images and detailed visual performance. It adopts AMOLED display technology and supports a full viewing angle, making it suitable for compact high-resolution display applications. In terms of mechanical specifications, it features an active area of 50.11(W) × 55.68(H) mm and an overall outline dimension of 52.91(W) × 62.58(H) × 11.00(D) mm, with a pixel pitch of 0.0232(H) × 0.0464(V) mm.ET029AM01-K-HDMI provides a typical brightness of 400 cd/m² and a contrast ratio of 10000:1, delivering clear images with rich contrast. It supports 16.7M colors and a 105% color gamut for vivid and accurate color reproduction. As a self-emissive display, AMOLED technology produces deep blacks and vibrant colors. The module utilizes an HDMI interface for convenient video signal input and features a plug-in connection. It is driven by the RM67295 display driver IC and operates with a DC 12V power supply. This model does not include touch functionality. ET029AM01-K-HDMI has a typical service life of 30,000 hours, an operating temperature range of -20°C to +60°C, and a storage temperature range of -30°C to +70°C.





Product Specifications – ET029AM01-K-HDMI
Parameter Specification Parameter Specification
Model Number ET029AM01-K-HDMI Display Size 2.95 inch
Display Technology AMOLED Resolution 1080 × 1200 pixels
Display Colors 16.7M Color Gamut 105%
Viewing Angle Full Viewing Angle Brightness 400 cd/m²
Contrast Ratio 10000:1 Pixel Pitch 0.0232(H) × 0.0464(V) mm
Active Area 50.11 × 55.68 mm Outline Dimensions 52.91 × 62.58 × 11.00 mm
Display Driver IC RM67295 Display Interface HDMI
Touch Function No Connector Type Plug-in
Operating Voltage DC 12 V Service Life 30,000 hours
Operating Temperature -20°C to +60°C Storage Temperature -30°C to +70°C



AMOLED Displays Technology

YOURITECH. Comprehensive Manufacturing of  Touchscreen, Driver Board Options

Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.

Youritech Production and Manufacturing



Customization & Manufacturing

We support customize and manufacturing based on your requirements,look forward to your contact if you need mass production or design, quick technical support and competitive price will be provided.

Quality is constant

Diligence, processes, and attention to detail are at the core of our business. Our operational framework is built on the 4Cs:
four pillars of quality that underpin our role as the world’s leading display panel designer and manufacturer.

SHIPPING & DELIVERY FAQS

1. Where is my product ship from?
All of products are shipped from China/HK.

2. How long will it take for my order to arrive?
It depends on the shipping method you choose, if you have requirements for the delivery time, please choose the fastest delivery shipping method (DHL).

3. When my order will be shipped out?
Normally, displays take 2–5 days and the HDMI/Demo board takes 1–2 weeks because it needs to be fully tested and configured. If stock is sufficient, we will ship immediately.

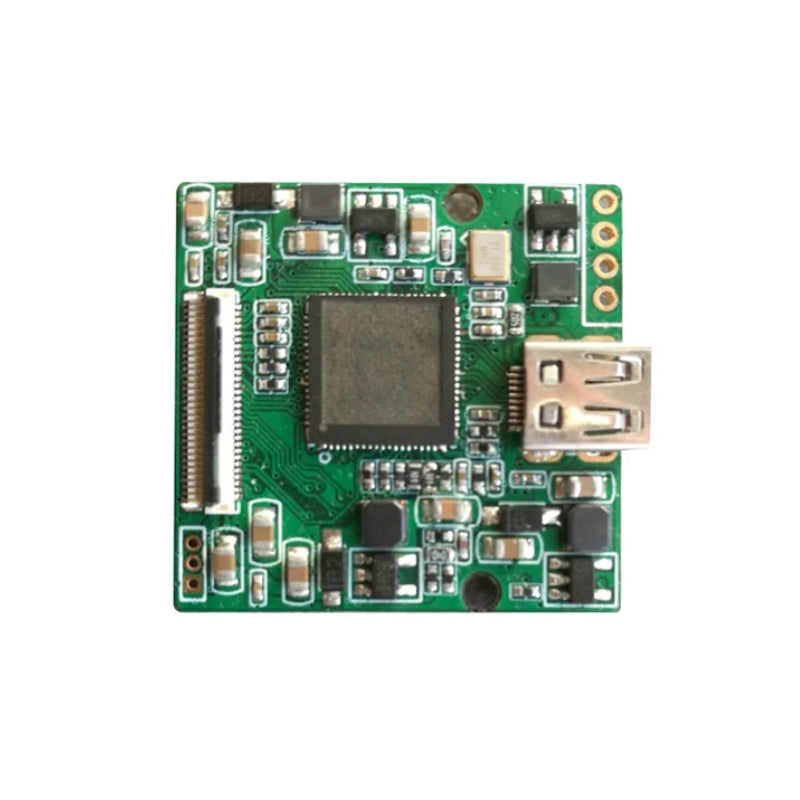

4. What`re the function of HDMI board and demo board?
The HDMI board converts HDMI input into the panel's native signal (MIPI/eDP/LVDS), provides power rails and backlight control, it typically doesn`t have touch functionality unless the SKU indicates.
The demo board is a development tool for quickly lighting up and evaluating a display.
