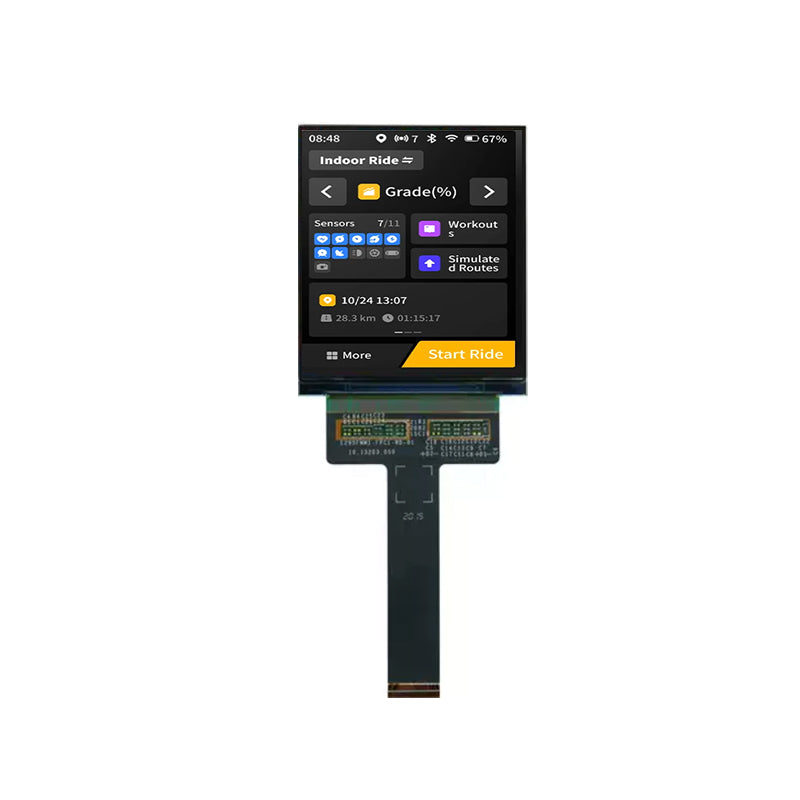

2.9 Inch AMOLED Screen 1080x1200 MIPI interface OLED Display Used For Industrial Control Medical Display Screens

2.9 Inch AMOLED Screen 1080x1200 MIPI interface OLED Display Used For Industrial Control Medical Display Screens

$150.08 USD
$150.08 USD
Sale Sold out
ET029AM01-K
For product datasheet and technical support, welcome to contact us at support@youritech.com;
Regarding project mass production needs, please share the FORECAST to info@youritech.com for receiving volume discount pricing.
View full details

Product Introduction


2.9 Inch AMOLED Display Overview

ET029AM01-K is a 2.95-inch AMOLED display module featuring a resolution of 1080 × 1200 pixels. It delivers a high-resolution visual experience with a 105% color gamut and supports 16.7M colors. In terms of mechanical specifications, it features an active area of 50.11(W) × 55.68(H) mm and an outline dimension of 52.91(W) × 62.58(H) × 0.65(D) mm, with a pixel pitch of 0.0232(H) × 0.0464(V) mm.ET029AM01-K provides a typical brightness of 400 cd/m² and a contrast ratio of 10000:1, delivering vivid colors and clear image details. It supports a full viewing angle for consistent visual performance from different viewing directions. As a self-emissive display, AMOLED technology delivers deep blacks and rich colors. The module utilizes a MIPI interface for display signal input and features a 39-pin plug-in connector with a 0.3 mm pin pitch. It is driven by the RM67295 display driver IC and operates at a typical voltage of 3.3V. ET029AM01-K has a typical service life of 30,000 hours, an operating temperature range of -20°C to +60°C, and a storage temperature range of -30°C to +70°C. This display module is suitable for compact electronic devices, wearable equipment, and other embedded applications requiring a high-resolution AMOLED display.





Product Specifications – ET029AM01-K
Parameter Specification Parameter Specification
Part No. ET029AM01-K Display Size 2.95 inch
Display Technology AMOLED Resolution 1080 × 1200
Touchscreen No Display Colors 16.7M
Color Gamut 105% Pixel Pitch 0.0232(H) × 0.0464(V) mm
Viewing Angle Full Viewing Angle Brightness 400 cd/m²
Contrast Ratio 10000:1 Driver IC RM67295
Panel Interface MIPI Pin Count 39 Pins
Pin Pitch 0.3 mm Touch Interface N/A
Connector Type Plug-in Outline Dimensions 52.91 × 62.58 × 0.65 mm
Active Area 50.11 × 55.68 mm Operating Voltage 3.3 V
Service Life 30,000 Hours Operating Temperature -20°C to +60°C
Storage Temperature -30°C to +70°C Touch Type None



AMOLED Displays Technology

YOURITECH. Comprehensive Manufacturing of  Touchscreen, Driver Board Options

Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.

Youritech Production and Manufacturing



Customization & Manufacturing

We support customize and manufacturing based on your requirements,look forward to your contact if you need mass production or design, quick technical support and competitive price will be provided.

Quality is constant

Diligence, processes, and attention to detail are at the core of our business. Our operational framework is built on the 4Cs:
four pillars of quality that underpin our role as the world’s leading display panel designer and manufacturer.

SHIPPING & DELIVERY FAQS

1. Where is my product ship from?
All of products are shipped from China/HK.

2. How long will it take for my order to arrive?
It depends on the shipping method you choose, if you have requirements for the delivery time, please choose the fastest delivery shipping method (DHL).

3. When my order will be shipped out?
Normally, displays take 2–5 days and the HDMI/Demo board takes 1–2 weeks because it needs to be fully tested and configured. If stock is sufficient, we will ship immediately.

4. What`re the function of HDMI board and demo board?
The HDMI board converts HDMI input into the panel's native signal (MIPI/eDP/LVDS), provides power rails and backlight control, it typically doesn`t have touch functionality unless the SKU indicates.
The demo board is a development tool for quickly lighting up and evaluating a display.
