2.9 Inch Black White Red E-Paper Display SPI 296×128 1.5s Partial Refresh Electronic Ink Display Module

Product Introduction

2.9 Inch Black White Red E-Paper Display 296×128 SPI 1.5s Partial Refresh Electronic Ink Display Module Overview

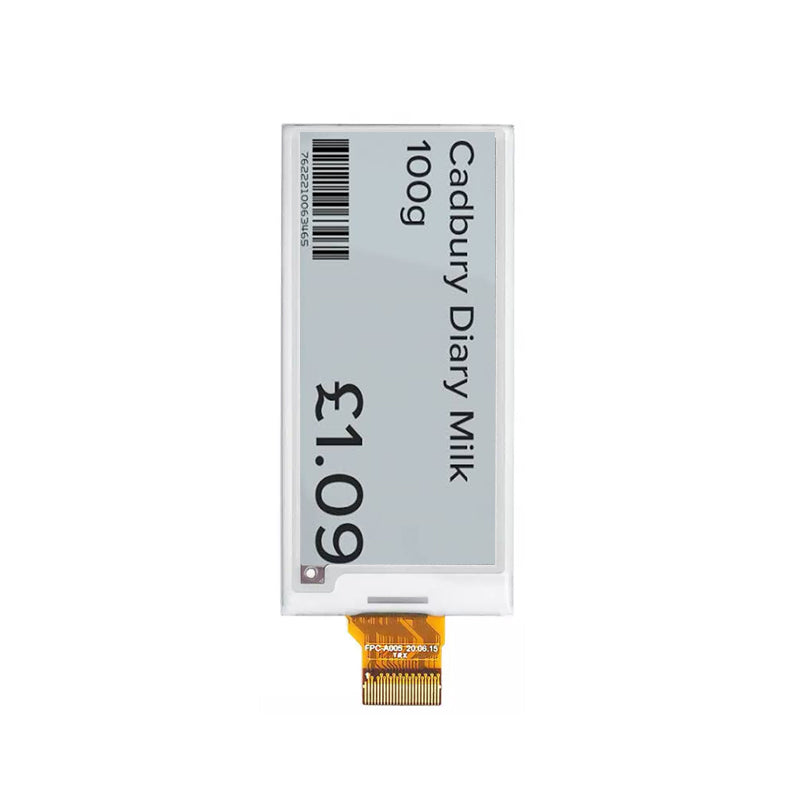

ET029EP02-Y is a 2.9 inch diagonal E-Paper (EPD) display module featuring black, white, and red electronic ink technology with ultra-low power consumption and excellent readability under ambient light. ET029EP02-Y supports a 296×128 resolution with a wide aspect ratio, delivering sharp text and graphics for applications such as electronic shelf labels, smart tags, industrial instruments, and IoT devices. It adopts an SPI interface for easy integration and supports a 1.5-second partial refresh, enabling faster screen updates while maintaining low power consumption. The module features an active area of 66.896(W) × 29.056(H) mm, an outline dimension of 79(W) × 36.7(H) × 1.2(D) mm, and operates reliably within a 0°C to 40°C operating temperature range, with a storage temperature of -25°C to 70°C. Designed without a touch panel, the ET029EP02-Y provides a paper-like viewing experience with high contrast, wide viewing angles, and bistable display performance, making it an ideal solution for battery-powered electronic ink applications.

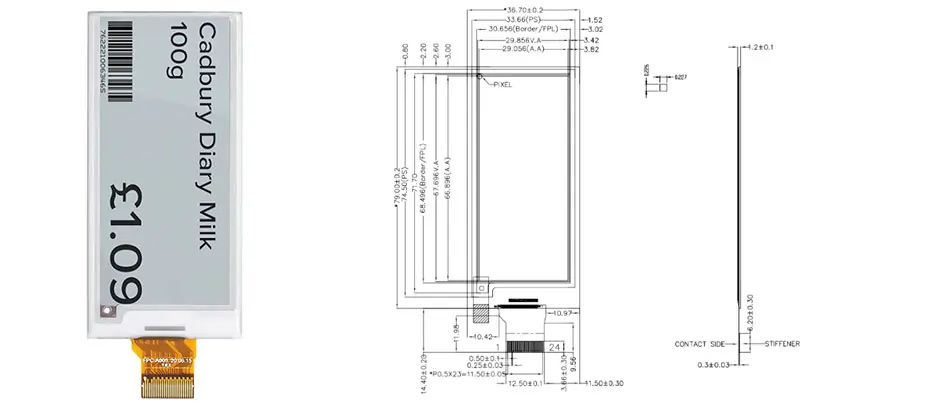

2.9 Inch E Ink Display  Specification

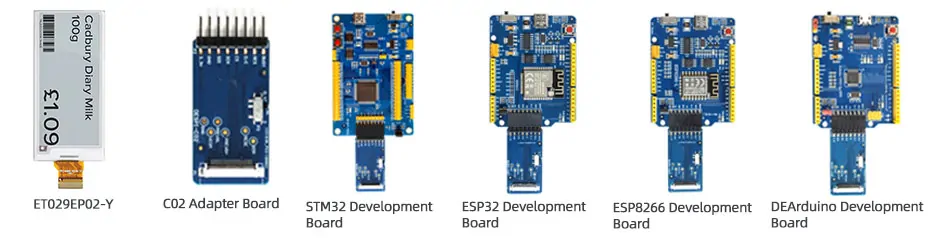

2.9 Inch E Ink Display Solution For Reference
ET029EP02-Y

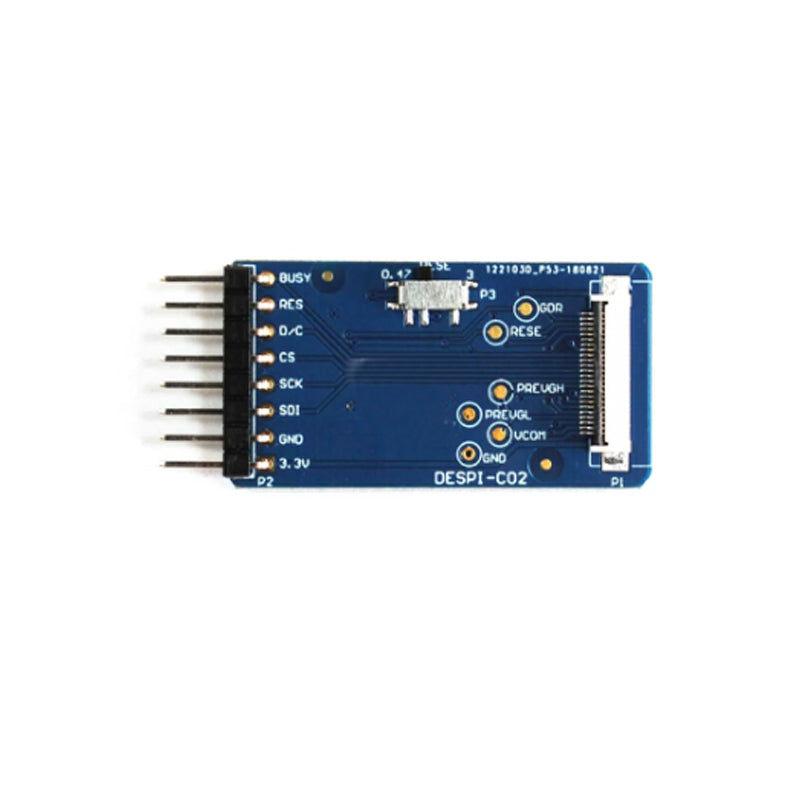

C02 Adapter Board

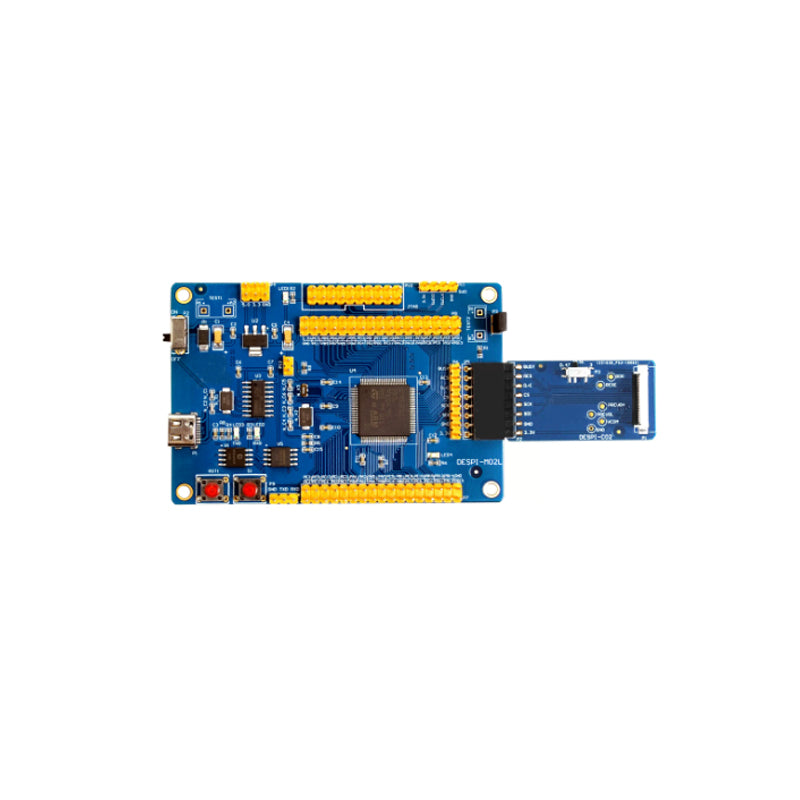

STM32 Development Board

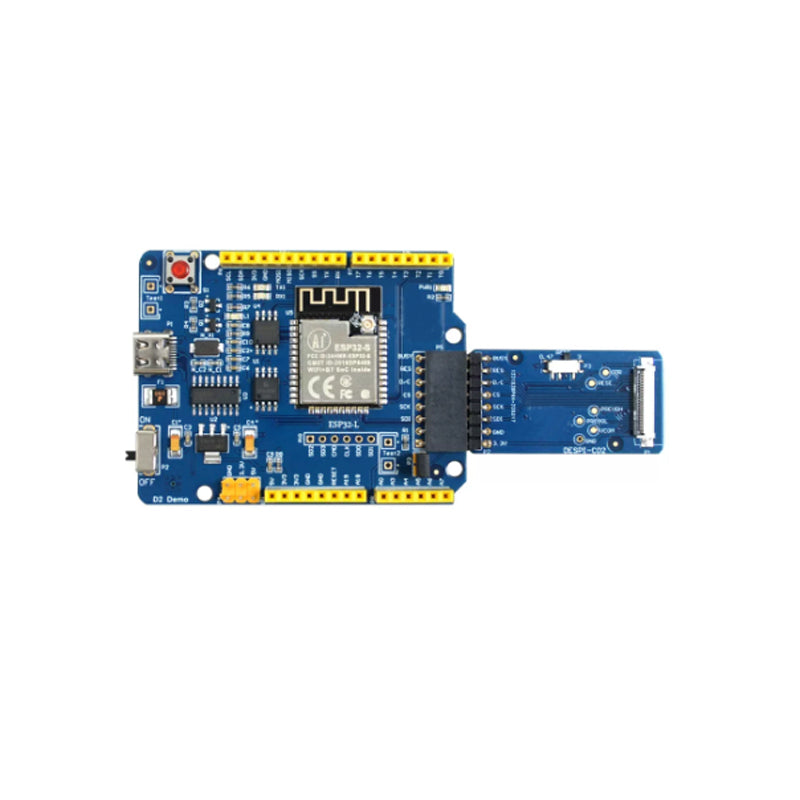

ESP32 Development Board

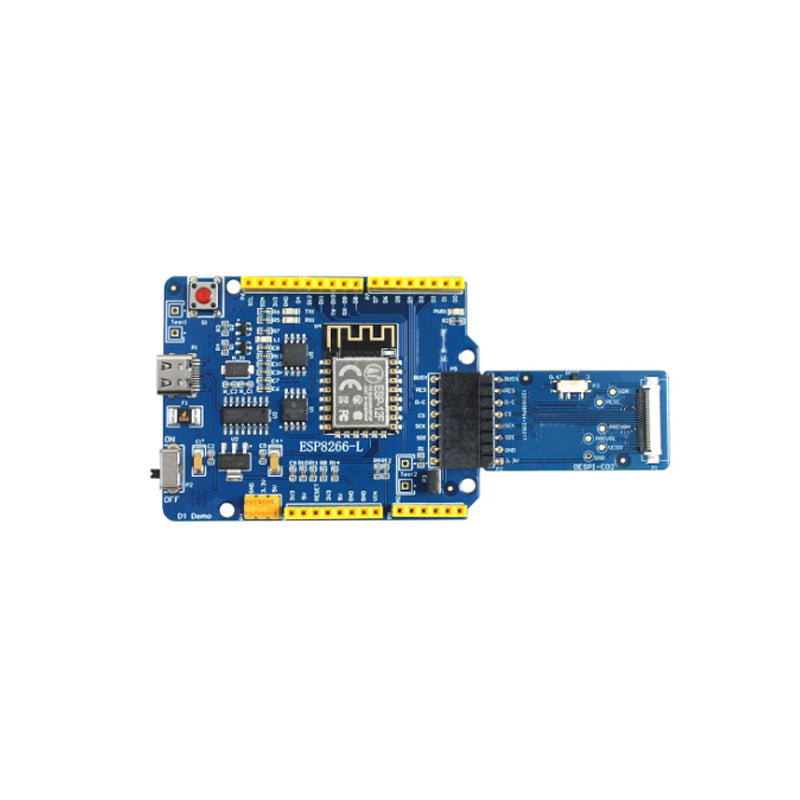

ESP8266 Development Board

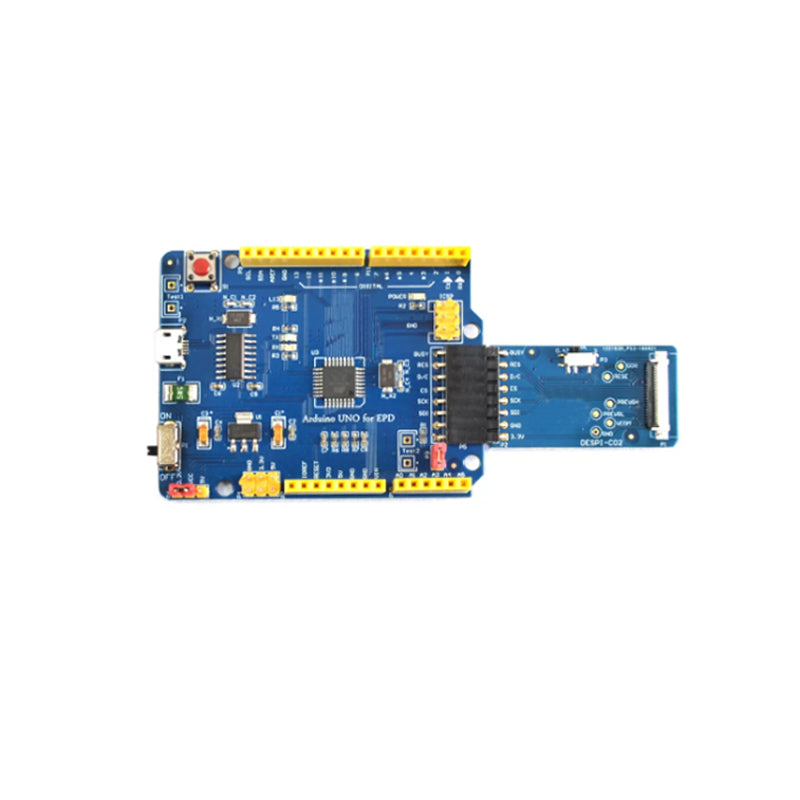

DEArduino Development Board

Features For Youritech E-Paper Display

Full-Color Display
-Rich, vibrant visuals for enhanced communication.
Ultra-Low Power
-Consumes power only during screen updates.
Sunlight Readable
-Clear visibility in bright outdoor environments.
Paper-Like Viewing
-Comfortable, glare-free reading experience.
No Backlight
-Uses ambient light to reduce power consumption.
Always-On Display
-Retains images without continuous power.
Wide Viewing Angle
-Consistent image quality from any direction.
Long Battery Life
-Ideal for battery-powered applications.
Thin & Lightweight
-Easy integration into compact devices.
Multiple Color Options
-Available in B/W/Red, B/W/Yellow, four-color, and full-color versions.

-Electronic Shelf Labels (ESL)
-Retail Digital Signage
-Smart Labels
-Advertising Displays
-Public Information Displays
-Transportation Signage
-Medical Information Displays
-Smart Home Control Panels
-Conference & Event Badges
-Industrial IoT Displays
