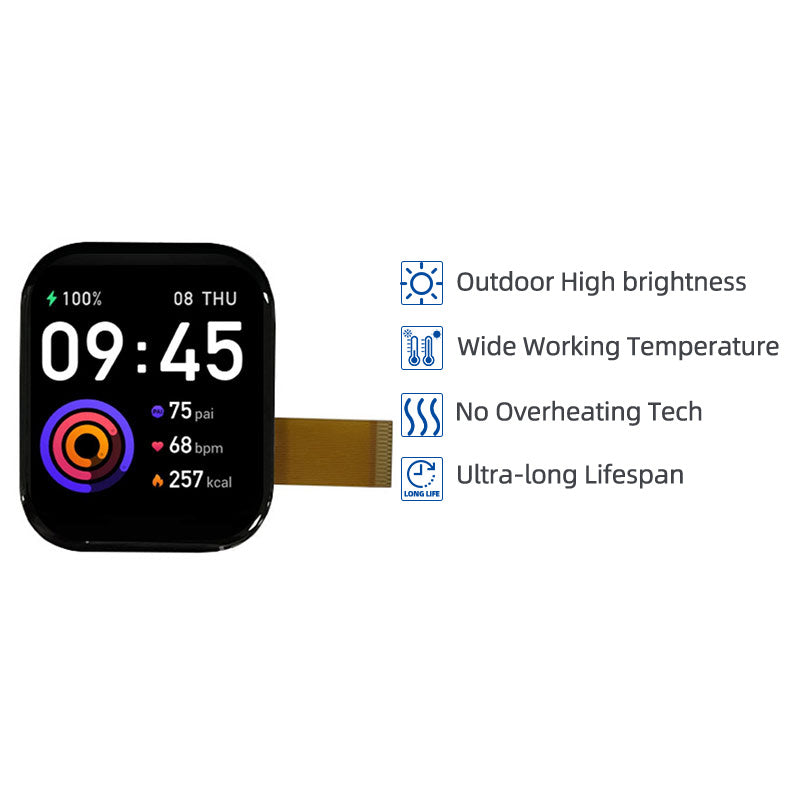

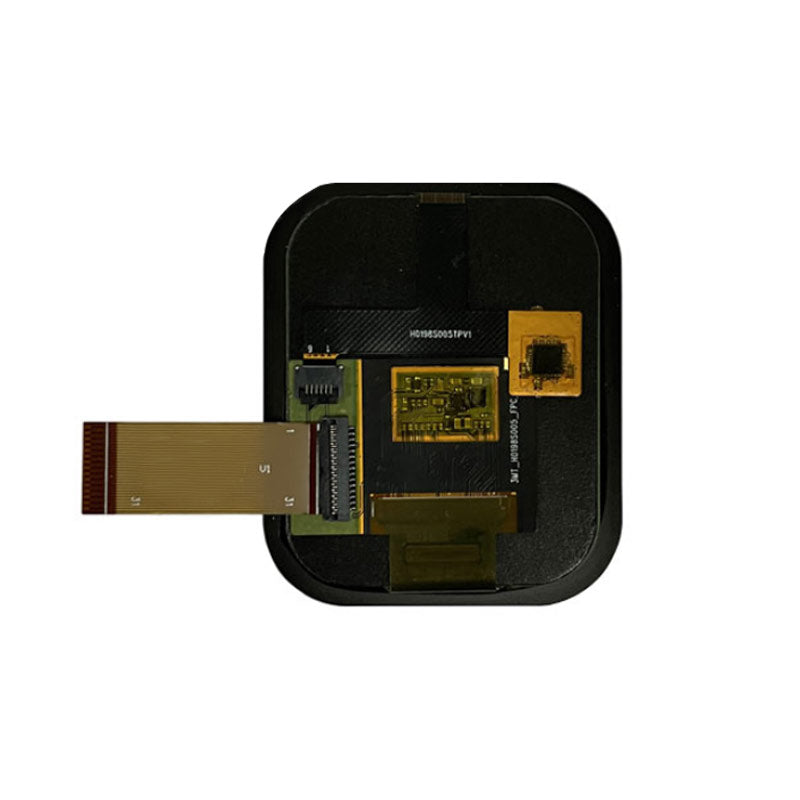

2 Inch High Brightness Display 800nits IPS 410x502 MIPI AMOLED Display With On-Cell Touch

2 Inch High Brightness Display 800nits IPS 410x502 MIPI AMOLED Display With On-Cell Touch

$12.80 USD
$12.80 USD
销售额 售罄
ET020AM03-HT
For product datasheet and technical support, welcome to contact us at support@youritech.com;
Regarding project mass production needs, please share the FORECAST to info@youritech.com for receiving volume discount pricing.

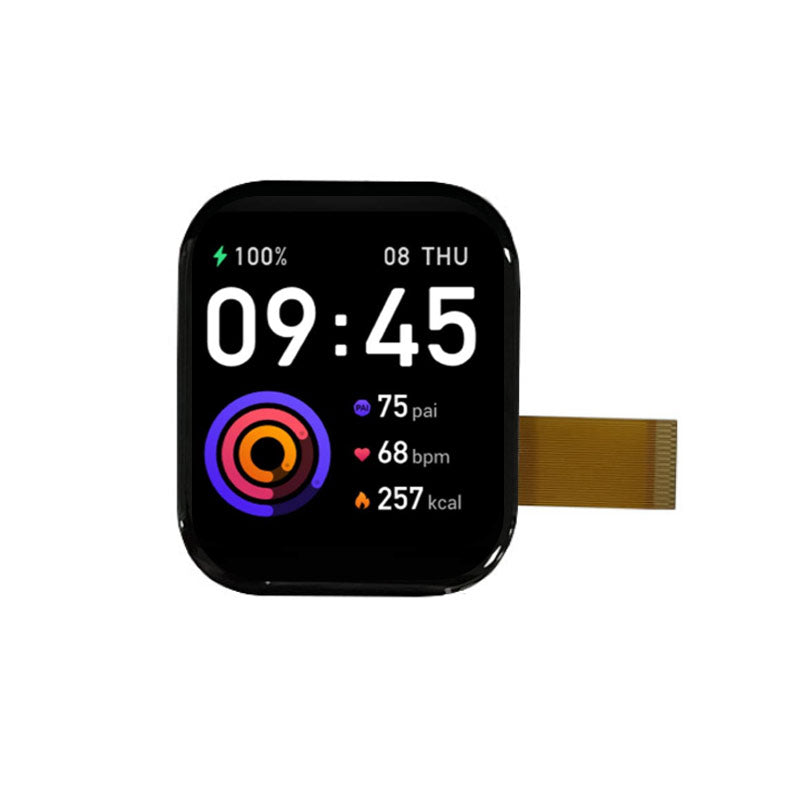

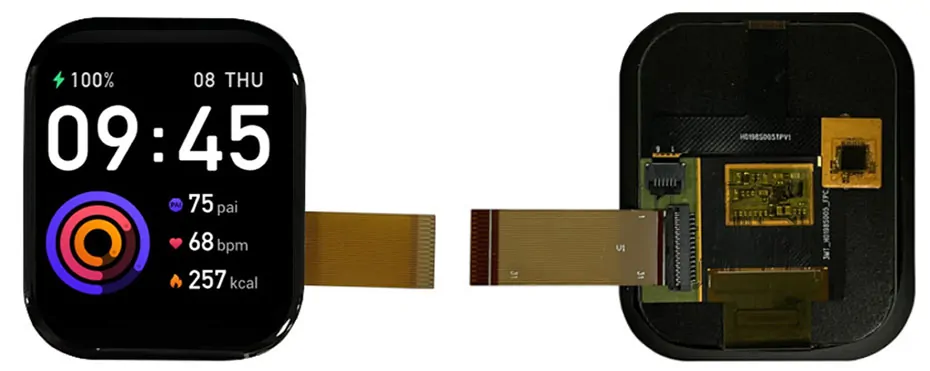

2 Inch High Brightness OLED Display Overview
ET020AM03-HT is a 2-inch diagonal high-brightness IPS AMOLED display with on-cell touch functionality. It features a 410×502 resolution with a MIPI interface and a transmissive AMOLED display mode. The active area measures 31.37(W)×38.4(H) mm, with an outline size of 33.07×41.05 mm. ET020AM03-HT delivers a typical brightness of 800 cd/m², viewing angles of 80°/80°/80°/80° (L/R/U/D), and operates over a temperature range of –20 °C to 70 °C (storage –30 °C to 80 °C).

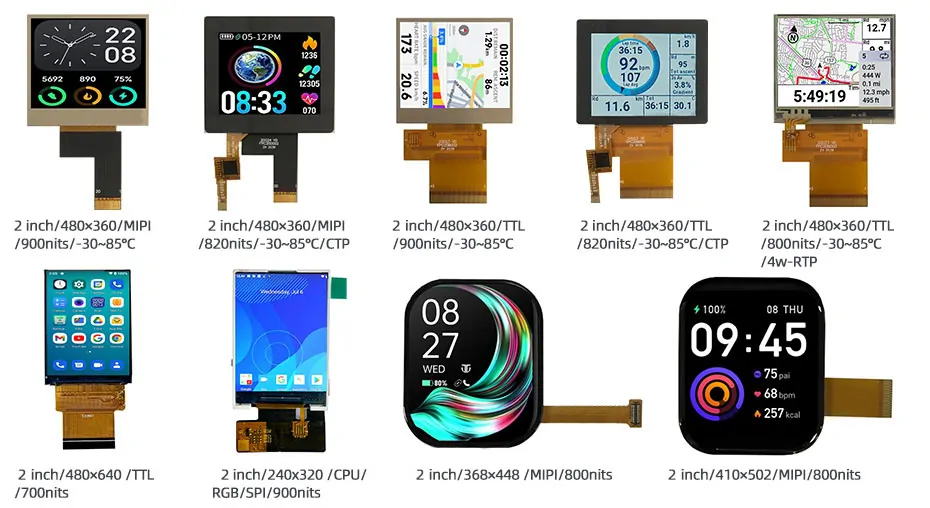

More 2 Inch High Brightness Display For Reference
ET020WQ30-K (LCD, 480x360, MIPI, 900nits, -30~85°C, 46.5x41.56mm)
ET020WQ30-KT (LCD, 480x360, MIPI, 820nits, -30~85°C, 54.5x47.56mm,Capacitive Touch)
ET020WQ20-K (LCD, 480x360, TTL, 900nits, -30~85°C, 46.5x41.56mm)
ET020WQ20-KT (LCD, 480x360, TTL, 820nits, -30~85°C, 54.5x47.56mm,Capacitive Touch)
ET020WQ20-KRT (LCD, 480x360, TTL, 800nits, -30~85°C, 46.5x41.56mm,4w-RTP)
ET020VG01-R (LCD, 480x640, TTL, 700nits, -20~70°C, 34.6x47.8mm)
ET020VG02-R (LCD, 240x320, CPU/RGB/SPI, 900nits, -20~70°C, 36.72x56.74mm)
ET020AM02-HT (OLED, 368x448, MIPI, 800nits, -20~70°C, 34.64x42.89mm,On-Cell Touch)
ET020AM03-HT (OLED, 410x502, MIPI, 800nits, -20~70°C, 33.07x41.05mm,On-Cell Touch)
Outdoor High Brightness Displays Technology
YOURITECH. Comprehensive Manufacturing of  Touchscreen, Driver Board Options

Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.

2 Inch High Brightness OLED Display Overview
ET020AM03-HT is a 2-inch diagonal high-brightness IPS AMOLED display with on-cell touch functionality. It features a 410×502 resolution with a MIPI interface and a transmissive AMOLED display mode. The active area measures 31.37(W)×38.4(H) mm, with an outline size of 33.07×41.05 mm. ET020AM03-HT delivers a typical brightness of 800 cd/m², viewing angles of 80°/80°/80°/80° (L/R/U/D), and operates over a temperature range of –20 °C to 70 °C (storage –30 °C to 80 °C).

More 2 Inch High Brightness Display For Reference
ET020WQ30-K (LCD, 480x360, MIPI, 900nits, -30~85°C, 46.5x41.56mm)
ET020WQ30-KT (LCD, 480x360, MIPI, 820nits, -30~85°C, 54.5x47.56mm,Capacitive Touch)
ET020WQ20-K (LCD, 480x360, TTL, 900nits, -30~85°C, 46.5x41.56mm)
ET020WQ20-KT (LCD, 480x360, TTL, 820nits, -30~85°C, 54.5x47.56mm,Capacitive Touch)
ET020WQ20-KRT (LCD, 480x360, TTL, 800nits, -30~85°C, 46.5x41.56mm,4w-RTP)
ET020VG01-R (LCD, 480x640, TTL, 700nits, -20~70°C, 34.6x47.8mm)
ET020VG02-R (LCD, 240x320, CPU/RGB/SPI, 900nits, -20~70°C, 36.72x56.74mm)
ET020AM02-HT (OLED, 368x448, MIPI, 800nits, -20~70°C, 34.64x42.89mm,On-Cell Touch)
ET020AM03-HT (OLED, 410x502, MIPI, 800nits, -20~70°C, 33.07x41.05mm,On-Cell Touch)

Outdoor High Brightness Displays Technology

YOURITECH. Comprehensive Manufacturing of  Touchscreen, Driver Board Options

Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.

Production and Manufacturing

Customization & Manufacturing

We support customize and manufacturing based on your requirements,look forward to your contact if you need mass production or design, quick technical support and competitive price will be provided.

Quality is constant

Diligence, processes, and attention to detail are at the core of our business. Our operational framework is built on the 4Cs:
four pillars of quality that underpin our role as the world’s leading display panel designer and manufacturer.

SHIPPING & DELIVERY FAQS

1. Where is my product ship from?
All of products are shipped from China/HK.

2. How long will it take for my order to arrive?
It depends on the shipping method you choose, if you have requirements for the delivery time, please choose the fastest delivery shipping method (DHL).

3. When my order will be shipped out ?
Normally we will ship it out within 2- 3 days after order was processed, only when the products in high demand or out of stock will take more time.
