27 Inch AMOLED Display 3840×2160 LTPS OLED Display with Capacitive Touch

27 Inch AMOLED Display 3840×2160 LTPS OLED Display with Capacitive Touch

$1,674.46 USD
$1,674.46 USD
Sale Sold out
ET270AM01-KT
For product datasheet and technical support, welcome to contact us at support@youritech.com;
Regarding project mass production needs, please share the FORECAST to info@youritech.com for receiving volume discount pricing.
View full details

Product Introduction


27 Inch AMOLED Display Overview

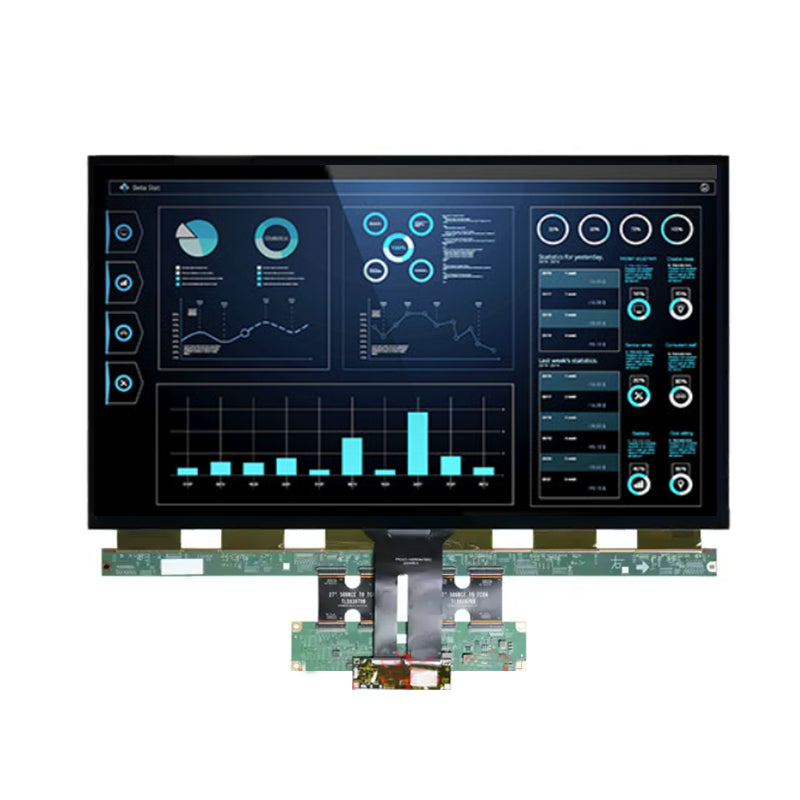

ET270AM01-KT is a 27-inch AMOLED display featuring a 3840×2160 4K UHD resolution and an eDP 1.4b interface. Built with LTPS technology, it supports RGB 8-bit and 10-bit color depth, a 100% color gamut, and a fast 1 ms response time, delivering detailed images, vivid colors, and smooth visual transitions. With a brightness of 400 cd/m², a contrast ratio of 100,000:1, and full viewing angles, this display provides clear visuals with deep blacks and consistent image quality. The panel measures 613.00 × 361.50 × 4.19 mm, with a viewing area of 599.00 × 337.20 mm and a display area of 597.66 × 336.18 mm. It integrates capacitive touch functionality with an ILI2510 touch controller and supports USB and I²C touch interfaces. The module features a 50-pin plug-in connection with a 0.5 mm pin pitch and operates at 24 V. With a service life of 25,000 hours, an operating temperature range of -20°C to +70°C, and a storage temperature range of -40°C to +85°C, this 27-inch 4K AMOLED display is suitable for interactive displays, professional monitoring systems, industrial control equipment, and other applications requiring high-resolution visuals and responsive touch functionality.

Model ET270AM01-KT  27 Inch AMOLED Display 3840×2160 LTPS OLED Display with Capacitive Touch
Size 27.0" Touch Yes
Touch Type Capacitive touch Display Mode AMOLED
Display Colors RGB 8/10bit Color Gamut 100%
Response Time 1ms Resolution 3840×2160
Dot Pitch 0.15564 (H)*0.15564 (V) Viewing Angle All viewing angle
Driver IC -- Outline Dimension 613.00*361.50*4.19 mm
Active Area 599.00*337.20 mm Dot Area 597.66*336.18 mm
Brightness 400 cd/m² Contrast Ratio 100000:1
Interface eDP 1.4b Pin Count 50
Pin Pitch 0.5 mm Touch Interface USB&IIC
Touch IC ILI2510 Connection Type Plug-in type
Operating Voltage 24 V Operating Life 25000h
Operating Temperature -20°C ~ +70°C Storage Temperature -40°C ~ +85°C

AMOLED Displays Technology

YOURITECH. Comprehensive Manufacturing of  Touchscreen, Driver Board Options

Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.

Youritech Production and Manufacturing



Customization & Manufacturing

We support customize and manufacturing based on your requirements,look forward to your contact if you need mass production or design, quick technical support and competitive price will be provided.

Quality is constant

Diligence, processes, and attention to detail are at the core of our business. Our operational framework is built on the 4Cs:
four pillars of quality that underpin our role as the world’s leading display panel designer and manufacturer.

SHIPPING & DELIVERY FAQS

1. Where is my product ship from?
All of products are shipped from China/HK.

2. How long will it take for my order to arrive?
It depends on the shipping method you choose, if you have requirements for the delivery time, please choose the fastest delivery shipping method (DHL).

3. When my order will be shipped out?
Normally, displays take 2–5 days and the HDMI/Demo board takes 1–2 weeks because it needs to be fully tested and configured. If stock is sufficient, we will ship immediately.

4. What`re the function of HDMI board and demo board?
The HDMI board converts HDMI input into the panel's native signal (MIPI/eDP/LVDS), provides power rails and backlight control, it typically doesn`t have touch functionality unless the SKU indicates.

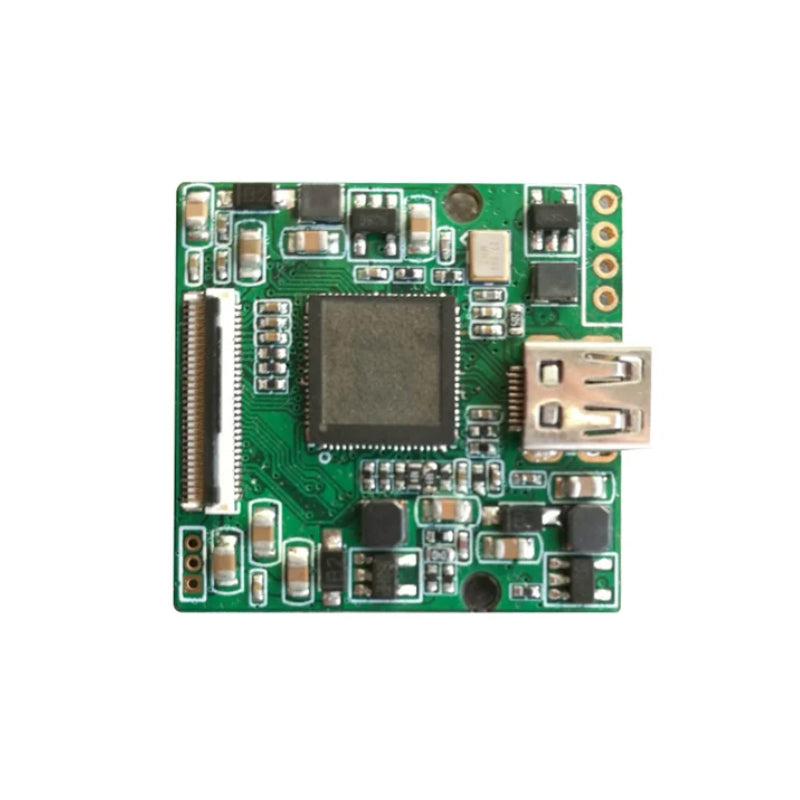

The demo board is a development tool for quickly lighting up and evaluating a display.
