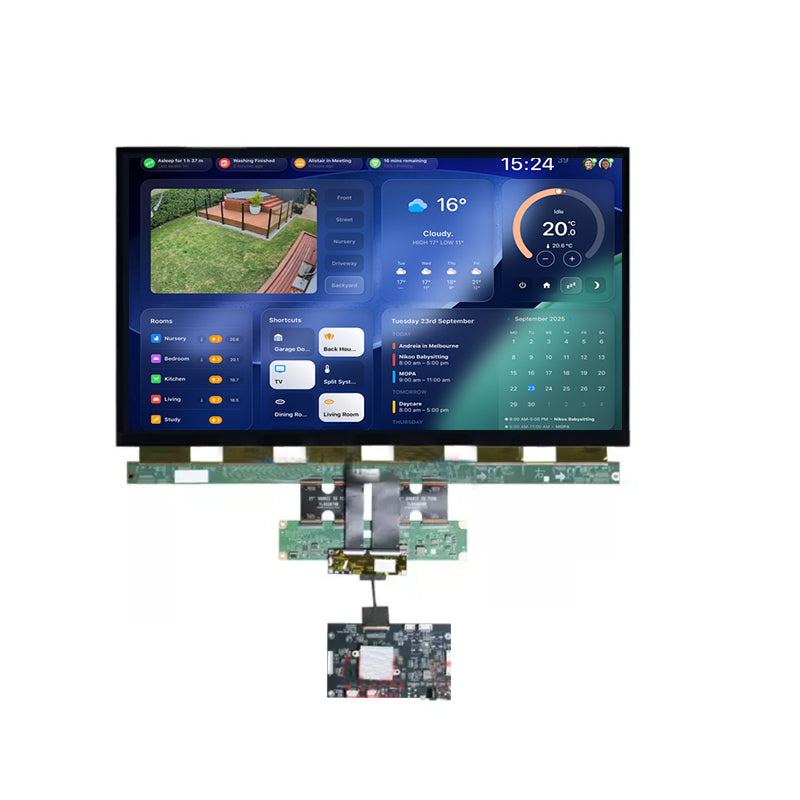

27 Inch OLED Display 3840x2160 capacitive touch with HDMI board AMOLED Screens Display

27 Inch OLED Display 3840x2160 capacitive touch with HDMI board AMOLED Screens Display

$1,727.37 USD
$1,727.37 USD
Sale Sold out
ET270AM01-KT-HDMI
For product datasheet and technical support, welcome to contact us at support@youritech.com;
Regarding project mass production needs, please share the FORECAST to info@youritech.com for receiving volume discount pricing.
View full details

Product Introduction


27 Inch AMOLED Display Overview

ET270AM01-KT-HDMI is a 27.0-inch AMOLED display module featuring a 3840 × 2160 resolution with a 16:9 aspect ratio, delivering sharp images and detailed visual performance. It supports RGB 8-bit/10-bit color depth and a 100% color gamut for rich and accurate color reproduction. In terms of mechanical specifications, it features an active area of 597.66(W) × 336.18(H) mm, a visible area of 599.00(W) × 337.20(H) mm, and an outline dimension of 613.00(W) × 361.50(H) × 13.60(D) mm, with a pixel pitch of 0.15564(H) × 0.15564(V) mm.ET270AM01-KT-HDMI provides a typical brightness of 400 cd/m² and a contrast ratio of 100000:1, delivering vivid colors, deep blacks, and excellent image detail. It features a full viewing angle for consistent visual performance from different viewing directions and a fast response time of 1 ms for smooth image transitions. As a self-emissive display, AMOLED technology delivers high contrast and vibrant colors. The module supports an HDMI (Type-A) interface for video input and features an integrated capacitive touchscreen with a USB touch interface and an ILI2510 touch controller. It uses a plug-in connection and operates at 24V. ET270AM01-KT-HDMI has a typical service life of 25,000 hours, an operating temperature range of -20°C to +70°C, and a storage temperature range of -30°C to +80°C, making it suitable for large-format interactive displays, professional monitors, and industrial visualization applications.



Product Specifications – ET270AM01-KT-HDMI
Parameter Specification Parameter Specification
Part No. ET270AM01-KT-HDMI Display Size 27.0 inch
Display Technology AMOLED Resolution 3840 × 2160 (4K UHD)
Touchscreen Yes, Capacitive Touch Display Colors RGB 8-bit / 10-bit
Color Gamut 100% Response Time 1 ms
Pixel Pitch 0.15564(H) × 0.15564(V) mm Viewing Angle Full Viewing Angle
Brightness 400 cd/m² Contrast Ratio 100000:1
Panel Interface HDMI (Type-A) Touch Interface USB
Touch Controller IC ILI2510 Connector Type Plug-in
Outline Dimensions 613.00 × 361.50 × 13.60 mm Visible Area 599.00 × 337.20 mm
Active Area 597.66 × 336.18 mm Operating Voltage 24 V
Service Life 25,000 Hours Operating Temperature -20°C to +70°C
Storage Temperature -30°C to +80°C Touch Type Capacitive



AMOLED Displays Technology

YOURITECH. Comprehensive Manufacturing of  Touchscreen, Driver Board Options

Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.

Youritech Production and Manufacturing



Customization & Manufacturing

We support customize and manufacturing based on your requirements,look forward to your contact if you need mass production or design, quick technical support and competitive price will be provided.

Quality is constant

Diligence, processes, and attention to detail are at the core of our business. Our operational framework is built on the 4Cs:
four pillars of quality that underpin our role as the world’s leading display panel designer and manufacturer.

SHIPPING & DELIVERY FAQS

1. Where is my product ship from?
All of products are shipped from China/HK.

2. How long will it take for my order to arrive?
It depends on the shipping method you choose, if you have requirements for the delivery time, please choose the fastest delivery shipping method (DHL).

3. When my order will be shipped out?
Normally, displays take 2–5 days and the HDMI/Demo board takes 1–2 weeks because it needs to be fully tested and configured. If stock is sufficient, we will ship immediately.

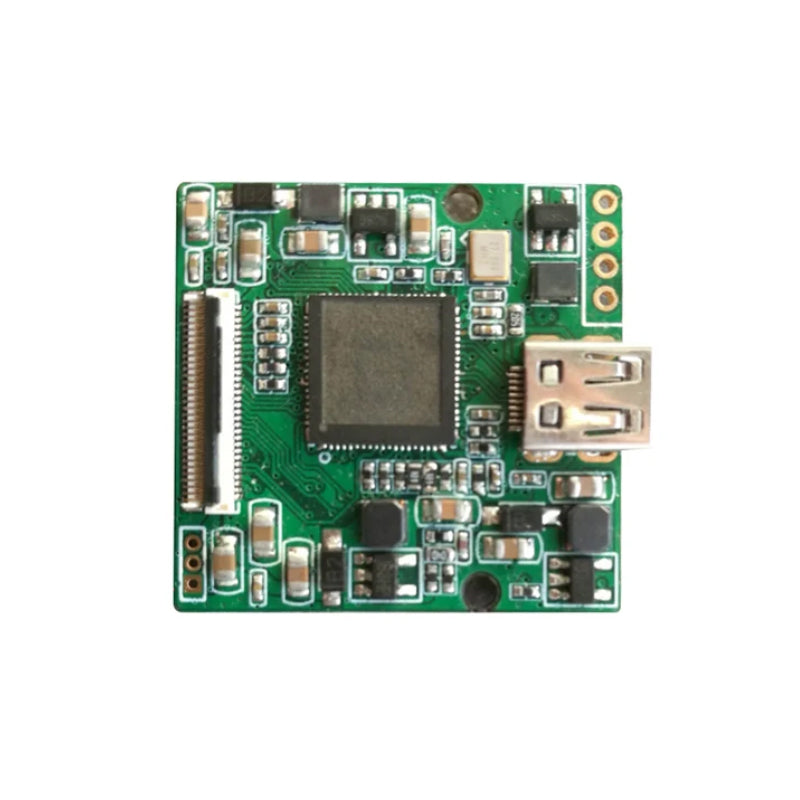

4. What`re the function of HDMI board and demo board?
The HDMI board converts HDMI input into the panel's native signal (MIPI/eDP/LVDS), provides power rails and backlight control, it typically doesn`t have touch functionality unless the SKU indicates.
The demo board is a development tool for quickly lighting up and evaluating a display.
