3.2 Inch TFT LCD Display 240x320 ST7789V SPI4 LCD Module

3.2 Inch TFT LCD Display 240x320 ST7789V SPI4 LCD Module

$8.95 USD
$8.95 USD
Sale Sold out
ET032QV02-T
For product datasheet and technical support, welcome to contact us at support@youritech.com;
Regarding project mass production needs, please share the FORECAST to info@youritech.com for receiving volume discount pricing.
View full details

Product Introduction


3.2 Inch 240x320 Display Overview

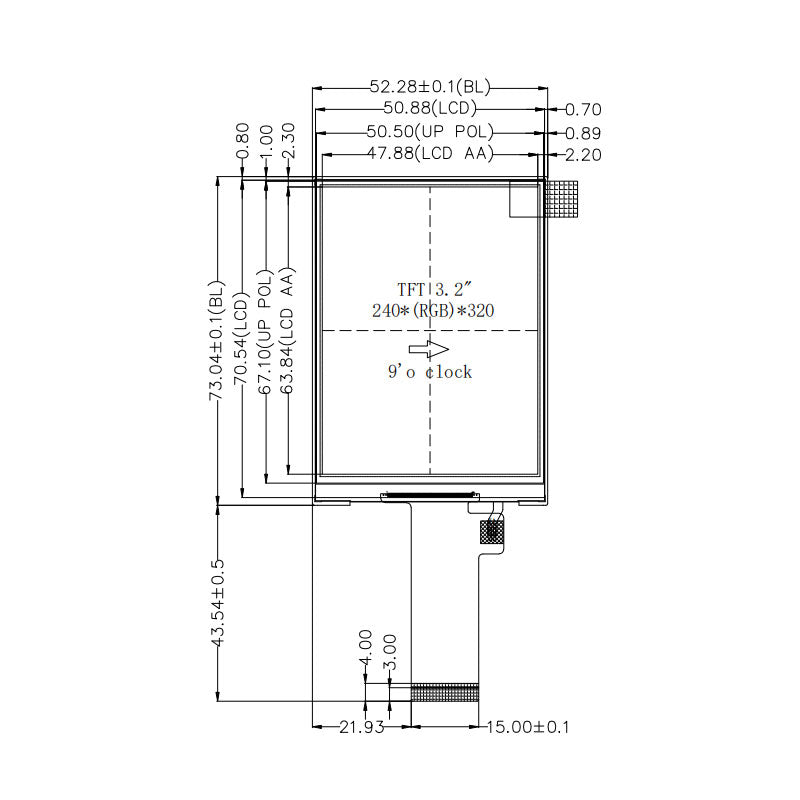

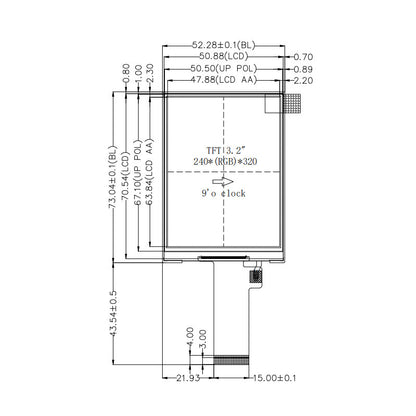

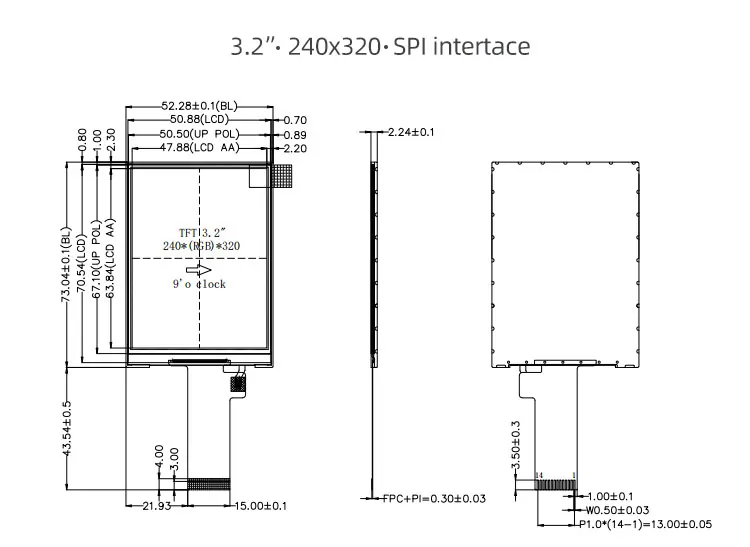

ET032QV02-T is a 3.2-inch TFT LCD module featuring a resolution of 240x320 pixels and utilizing an SPI4 panel interface for efficient data transmission. It has an outline dimension of 52.28mm (W) x 73.04mm (H) x 2.2mm (D) and an active display area measuring 47.88mm (W) x 63.84mm (H). This module provides a brightness level of 280 cd/m², ensuring good visibility under standard lighting conditions. Specific details regarding the viewing angles (L/R/U/D) and operation/storage temperatures are not provided. Additionally, this module does not include touch functionality, focusing instead on delivering reliable visual performance through its TFT LCD technology with an SPI4 interface.

3.2 Inch 240x320 Display Application
For industrial & smart home appliances & medical instruments & wearable.



Small Display List For Reference

Inch Resolution LCD interface PIN
0.85 128x128 SPI
0.89 40x160 SPI
0.96 80x160 SPI 13pins
0.96 SPI
0.96 80x160 SPI 13pins
0.96 80x160 SPI 13pins
1 240x198 MCU
1 184x96 SPI
1 128Ă—128 SPI
1.1 135Ă—240 SPI
1.2 240x240 SPI
1.3 240x240 CPU
1.3 240x240 CPU/RGB/SPI
1.34 320Ă—300 MIPI
1.34 320Ă—300 MIPI
1.4 128x128 SPI4 10
1.5 320Ă—240 TTL
1.5 480x240 Serial RGB
1.7 240x280 SPI
1.8 128x160 MCU 8 BIT 20
128x128 SPI4 10
1.8 240x320 8/9/16/18Bit MCU3/4SPI+16/18Bit RGB
3-line/4-line
1.8 240x284 SPI4
1.8 368x448 MIPI/SPI
1.9 170x320 4L-SPI/8Bit-8080 MCU
2 320x480 MIPI
2 176x220 SPI 4 LINE
MCU 8 BIT		 22
480x360 RGB 24 BIT 40
480x360 RGB 16 BIT/MIPI 40
240x320 MCU 16 BIT 30
320x240 SPI3+RGB6 30
240x320 SPI4 /MCU8BIT 30
480x240 RGB 8-bit
480x640 TTL
2 480x320 MIPI / SPI
2.1 480x480 3SPI+18RGB or MIPI
2.2 240x320 MCU/SPI/RGB
2.2 480x800 MIPI
2.3 320x480 RGB
2.3 480x360 MIPI
2.31 320x240 RGB 6 BIT 40
320x240 MCU 16 BIT 30
320x240 SPI4 14
2.4 240x320 MIPI 1 LANE 20
240x320 MCU 8/16 BIT 40
240x320 MCU 8 BIT 24
240x320 SPI4 24
240x320 SPI/MCU/RGB 40
480x640 MIPI 2 LANE 30
240x320 SPI4/MCU 16 BIT 40
2.4 320x426 CPU
2.4 320x480 MIPI
2.4 480x234 RGB
2.4 480x360 MIPI
2.5 480x480 RGB
2.6 240x320 SPI/MCU 40
2.6 320x240 CPU/RGB/SPI
2.6 320x430 MIPI
2.7 960x240 RGB 8 BIT 40
320x240 RGB 8 BIT 40
2.7 800x600 DSI 2-Lane
2.8 240x320 MIPI 1 LANE 25
240x320 MCU 16 BIT 40
480x640 RGB 24 BIT 40
240x400 SPI/MCU 40
240x320 SPI/MCU/RGB 50
240x320 SPI4 18
240x320 SPI/MCU 40
480x640 MIPI 2 LANE 24
3 480x854 MIPI 2 LANE 31
240x400 RGB 16 BIT 40
240x400 MCU 16 BIT 40
360x640 RGB 16 BIT 40
360x640 RGB 16 BIT/MIPI 40
480x854 RGB 16 BIT 40
960x240 RGB 8 BIT 40
360x640 SPI3+RGB 18 BIT 51
3 480x800 RGB 24BIT interface
3.1 480x800 MIPI 2 LANE 24
3.2 240x320 MCU 16 BIT 39
240x320 SPI4 14
240x320 MCU 16 BIT 40
3.2 360x640 MIPI
3.2 1024x768 MIPI
3.3 480x800 CPU/RGB/SPI
3.4 480x480 RGB
3.4 400x930 MIPI
3.5 320x240 RGB 24 BIT 54
640x480 RGB 24 BIT 54
320x480 RGB 18 BIT 40
320x480 MCU16bit 40
480x800 RGB 24 BIT 40
640x480 MIPI 4 LANE 22
320x240 RGB 24 BIT 54
320x480 SPI4/MCU 16 BIT 40
320x480 SPI/MCU/RGB 45
320x240 RGB 24 BIT 54
720x1280
240x320 TTL
340x800 SPI+RGB
480x800 RGB 24BIT interface
3.54 800x640 RGB 18 BIT 40
3.9 480x128 TTL
3.9 1080x1024 MIPI
4 480x800 RGB 24 BIT 45
480x800 RGB 24 BIT 40
480x800 MIPI 2 LANE 25
4 640x480 MIPI 4 LANE 30
4 540x960 MIPI 2LANE
4 320x480 CPU/RGB/SPI
4 400x960 SPI
4 480x1080 MIPI
4 640x1280 MIPI
4.1 720x1280 MIPI 4 LANE 25
4.1 1200x720 MIPI
4.3 480x272 RGB 24 BIT 40
480x272 RGB 24 BIT 40
800x480 RGB 24 BIT 40
800x480 RGB 24 BIT 40
480x800 RGB 24 BIT 40
480x800 MIPI 2 LANE 40
480x272 SPI/QSPI/MCU 40
4.5 480x854 RGB 24 BIT 40
480x854 RGB 24 BIT 20
480x854 MIPI 2 LANE 40
4.6 800x320 TTL
4.7 720x1280 MIPI 4 LANE 25
4.8 720x1280 MIPI
Touch Screens are Available and Optional

3.2 Inch 240x320 Display Custom LCD Solutions for Diverse Applications
Brightness from 0-3000 for perfect display effect achievement.
100% NTSC makes the vividness of the picture better and the color transition in the picture more natural.
Color Temperature is positive white at around 5500K, warm white (yellowish) at 3500K and also cool white (cold) at 6500K.
Driver circuit with sufficient voltage and current values to meet output requirements and reduce the secondary development cycle.
Heat dissipation for high-brightness products to advance design of reasonable heat dissipation structure
Power consumption, we increase the brightness without increasing the power consumption.
Cables, Backlighting also requires cables, either through an FPC connected to the LCD's FPC and controlled through a port, or a separate cable that controls it through a connector.
LED life reached the standard of 30K hours Min. 50K, 70K, 100K hours are all achievable.

3.2 Inch 240x320 Display Touch screen,standard type and customization

3.2 Inch 240x320 Display Driver board/adapter board, standard type and design customization
DEMO board, H-DMl board, other customized board, etc.

3.2 Inch 240x320 Display Embedded Integrated Solution
UART display solution, H-DMl display solution, Window display solution, Android display solution, Raspberry Pi solution, portable secondary screen solution, etc.

Customization & Manufacturing

We support customize and manufacturing based on your requirements,look forward to your contact if you need mass production or design, quick technical support and competitive price will be provided.
