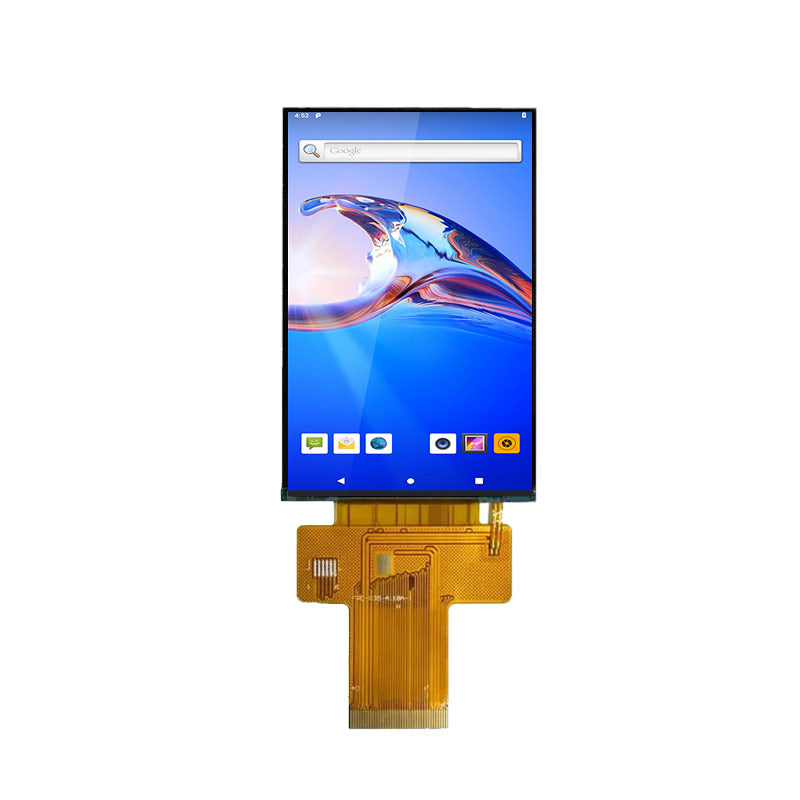

3.5 Inch Transflective Display 282x470 MCU 8/16BIT/SPI Sunlight Readable LCD Display For Handheld PDA

3.5 Inch Transflective Display 282x470 MCU 8/16BIT/SPI Sunlight Readable LCD Display For Handheld PDA

$30.50 USD
$30.50 USD
Sale Sold out
ET035TR02-VT
For product datasheet and technical support, welcome to contact us at support@youritech.com;
Regarding project mass production needs, please share the FORECAST to info@youritech.com for receiving volume discount pricing.
View full details

Product Introduction


3.5 Inch Transflective LCD Display Overview
The ET035TR02-VT is a 3.5-inch transflective LCD display for handheld PDAs, featuring a 282×470 resolution and MCU 8/16-bit/SPI interface. It has an active area of 45.34×75.58 mm and overall dimensions of 51.32×86.61 mm. The display delivers 150 cd/m² brightness (±12%), offers 80° viewing angles in all directions, operates from –20 to 70 °C, can be stored between –30 and 80 °C, and does not support touch functionality.

Part Number ET035TR02-VT Display Size 3.5 Inch
Resolution 282 × 470 Display Mode Transflective TFT LCD
Interface MCU 8/16-Bit / SPI Touch Panel No
Brightness 150 cd/m² (Typ.) ±12% Viewing Angle 80° / 80° / 80° / 80° (L/R/U/D)
Active Area 45.34 × 75.58 mm Outline Dimension 51.32 × 86.61 mm
Operating Temperature -20°C ~ 70°C Storage Temperature -30°C ~ 80°C

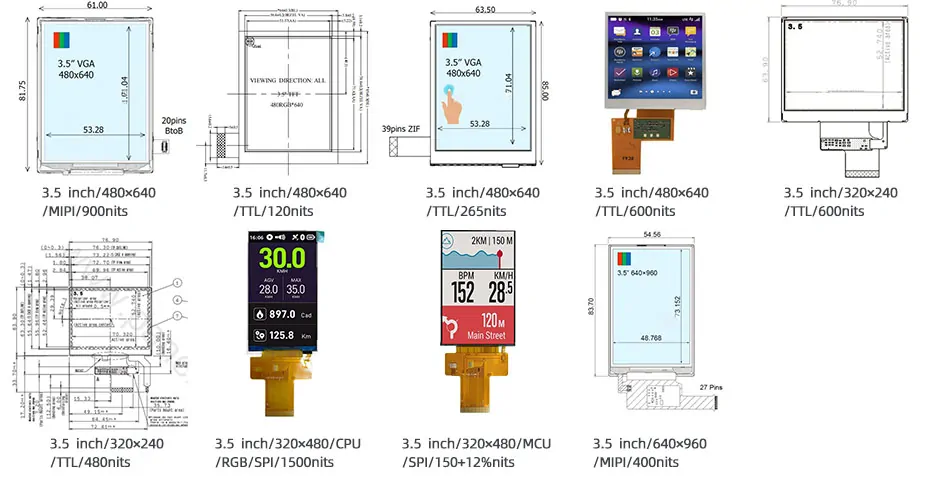

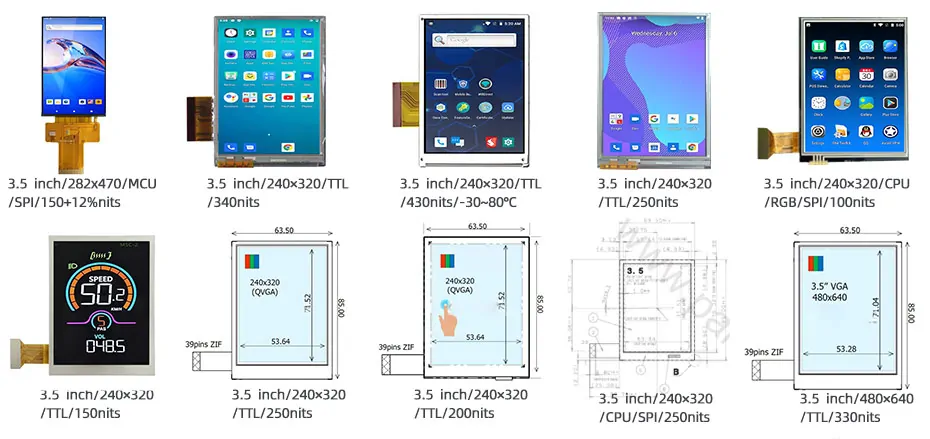

More 3.5 Inch Transflective LCD Display For Reference
ET035TR02-VT (282x470, MCU/SPI, 150+12%nits, -20~70°C, 51.32x86.61mm, CTP(Optical))
TX09D40VM3CAA (240x320, TTL, 340nits, -20~70°C, 64x86mm, 4w-RTP)
TX09D40VM3CBA (240x320, TTL, 430nits, -30~80°C, 64x86mm)
TX09D30VM1CCA (240x320, TTL, 250nits, -20~70°C, 64x86mm, 4w-RTP)
ET035TR01-TSRP (240x320, CPU/RGB/SPI, 100nits, -20~70°C, 64x85mm, 4w-RTP)
ET035TR02-TSRP (240x320, TTL, 150nits, -20~70°C, 64x85mm, 4w-RTP)
COM35H3R08ULC (240x320, TTL, 250nits, -20~70°C, 63.5x85mm)
COM35H3R10UTC (240x320, TTL, 200nits, -20~70°C, 63.5x85mm, 4w-RTP)
COM35H3R25ULC (240x320, CPU/SPI, 250nits, -20~70°C, 63.5x58mm)
COM35H3R12ULC (480x640, TTL, 330nits, -20~70°C, 63.5x85mm)
COM35H3P70ULC (480x640, MIPI, 900nits, -20~70°C, 61x81.75mm)
ET035A6448-1 (480x640, TTL, 120nits, -10~60°C, 64x85mm)
COM35H3R14UTC (480x640, TTL, 265nits, -20~70°C, 63.5x85mm, 4w-RTP)
COM35H3P58ULC (320x240, TTL, 600nits, -30~85°C, 79.8x66.5mm)
COM35H3R16ULC (320x240, TTL, 600nits, -20~70°C, 76.9x63.9mm)
COM35H3R18UTC (320x240, TTL, 480nits, -20~70°C, 76.9x63.9mm, 4w-RTP)
ET035TR01-TV (320x240, CPU/RGB/SPI, 150nits, -20~70°C, 52.26x80.6mm)
ET035TR01-VT (320x480, MCU/SPI, 150+12%nits, -20~70°C, 52.26x80.6mm, CTP(Optical))
COM35H3R07ULC (640x960, MIPI, 400nits, -20~70°C, 54.56x83.7mm)
