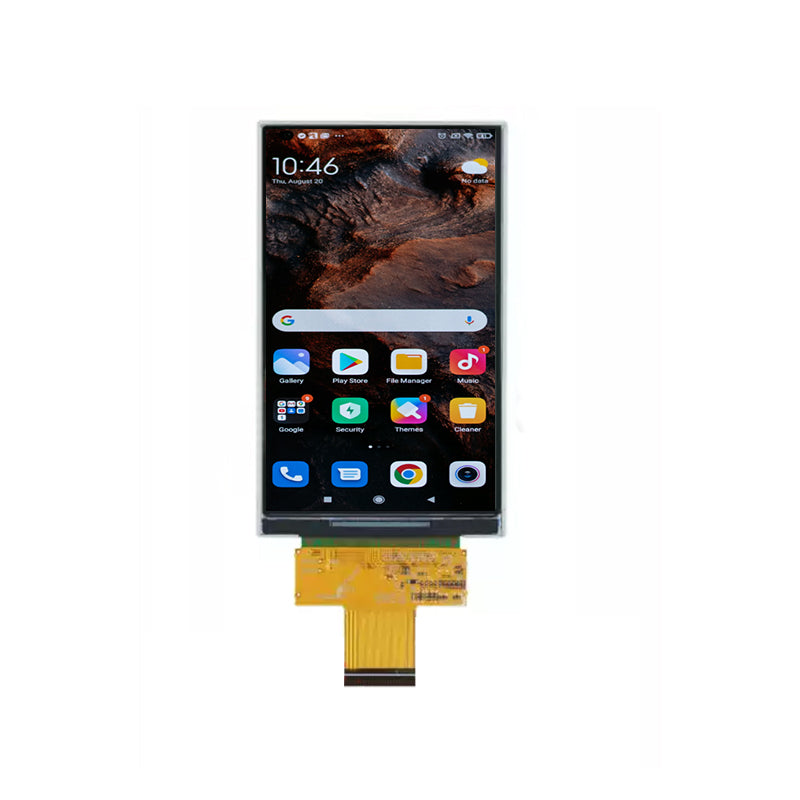

3.7 Inch AMOLED Display 480×800 RGB Full Viewing Angle OLED Display Panel

3.7 Inch AMOLED Display 480×800 RGB Full Viewing Angle OLED Display Panel

$68.51 USD
$68.51 USD
Sale Sold out
ET037AM01-K
For product datasheet and technical support, welcome to contact us at support@youritech.com;
Regarding project mass production needs, please share the FORECAST to info@youritech.com for receiving volume discount pricing.
View full details

Product Introduction


3.7 Inch AMOLED Display Overview
ET037AM01-K is a 3.7-inch AMOLED display featuring a resolution of 480×800 and a 24-bit RGB interface for vibrant color reproduction. It supports 16.7 million colors, a 105% color gamut, a 250 cd/m² brightness level, and a 20000:1 contrast ratio, delivering clear images, rich colors, and deep blacks. With full viewing angles, this display provides consistent image quality from different viewing directions. It uses the TL2796 driver IC and features a compact module size of 53.94 × 90.00 × 1.50 mm, with a display area of 48.24 × 80.40 mm. The module has a 51-pin connector with a 0.3 mm pitch and operates at 3.3 V. Designed for demanding environments, it supports an operating temperature range of -30°C to +80°C and a storage temperature range of -40°C to +85°C, with a rated service life of 30,000 hours. This non-touch AMOLED display is suitable for industrial instruments, handheld devices, smart terminals, and other embedded display applications requiring vivid visuals and reliable performance.

Model ET037AM01-K 3.7 Inch AMOLED Display 480×800 RGB Full Viewing Angle OLED Display Panel
Size 3.7" Touch No
Touch Type None Display Mode AMOLED
Display Colors 16.7M Color Gamut 105%
Response Time -- Resolution 480x800
Dot Pitch - Viewing Angle All viewing angle
Driver IC TL2796 Outline Dimension 53.94*90.00*1.50mm
Active Area - Dot Area 48.24*80.40mm
Brightness 250cd/m² Contrast Ratio 20000:1
Interface 24-bit RGB Pin Count 51
Pin Pitch 0.3mm Touch Interface -
Touch IC -- Connection Type Plug-in type
Operating Voltage 3.3V Operating Life 30000h
Operating Temperature -30°C~+80°C Storage Temperature -40°C~+85°C



AMOLED Displays Technology

YOURITECH. Comprehensive Manufacturing of  Touchscreen, Driver Board Options

Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.

Youritech Production and Manufacturing



Customization & Manufacturing

We support customize and manufacturing based on your requirements,look forward to your contact if you need mass production or design, quick technical support and competitive price will be provided.

Quality is constant

Diligence, processes, and attention to detail are at the core of our business. Our operational framework is built on the 4Cs:
four pillars of quality that underpin our role as the world’s leading display panel designer and manufacturer.

SHIPPING & DELIVERY FAQS

1. Where is my product ship from?
All of products are shipped from China/HK.

2. How long will it take for my order to arrive?
It depends on the shipping method you choose, if you have requirements for the delivery time, please choose the fastest delivery shipping method (DHL).

3. When my order will be shipped out?
Normally, displays take 2–5 days and the HDMI/Demo board takes 1–2 weeks because it needs to be fully tested and configured. If stock is sufficient, we will ship immediately.

4. What`re the function of HDMI board and demo board?
The HDMI board converts HDMI input into the panel's native signal (MIPI/eDP/LVDS), provides power rails and backlight control, it typically doesn`t have touch functionality unless the SKU indicates.
The demo board is a development tool for quickly lighting up and evaluating a display.
