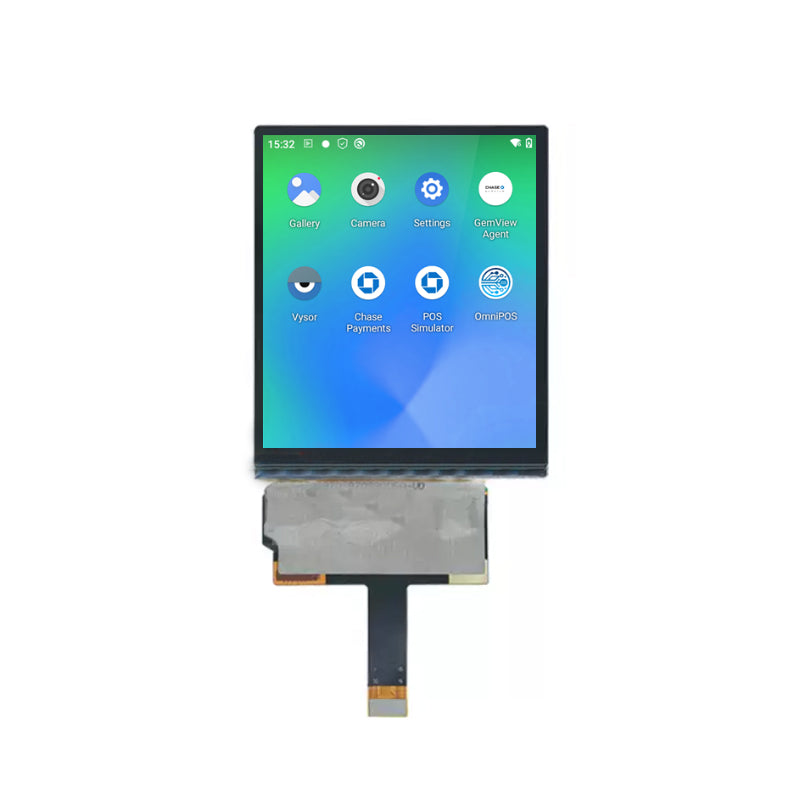

3.92 Inch AMOLED Display 1080x1240 MIPI With Touch OLED Display

3.92 Inch AMOLED Display 1080x1240 MIPI With Touch OLED Display

$47.79 USD
$47.79 USD
Sale Sold out
ET039AM01-KT
For product datasheet and technical support, welcome to contact us at support@youritech.com;
Regarding project mass production needs, please share the FORECAST to info@youritech.com for receiving volume discount pricing.
View full details

Product Introduction


3.92 Inch AMOLED Display Overview

ET039AM01-KT is a 3.92-inch AMOLED display module featuring a resolution of 1080 × 1240 pixels, with pixels arranged in a near-square display format. In terms of mechanical specifications, it features an active area of 65.45(W) × 75.14(H) mm, a visible area of 65.75(W) × 75.44(H) mm, and an outline dimension of 67.25(W) × 79.87(H) × 0.75(D) mm. Its pixel pitch is 0.0606(H) × 0.0606(V) mm.ET039AM01-KT provides a typical brightness of 500 cd/m² and supports a full viewing angle for consistent image quality from different viewing directions. With a 94% color gamut and support for 16.7M colors, it delivers rich and vivid color reproduction. As a self-emissive display technology, AMOLED allows each pixel to emit its own light, producing deep blacks and vibrant images. The module supports a 4-lane MIPI interface with a 30-pin connection and integrates capacitive touch functionality with an I2C touch interface. With a plug-in connection, a 1.8V operating voltage, and a typical service life of 30,000 hours, ET039AM01-KT is suitable for smart devices, wearable electronics, handheld terminals, and other applications requiring a compact, high-resolution AMOLED display with touch functionality. It operates at temperatures from -20°C to +70°C and can be stored at temperatures from -30°C to +80°C.


Product Specifications – ET039AM01-KT
Parameter Specification Parameter Specification
Model Number ET039AM01-KT Display Size 3.92 inch
Display Mode AMOLED Resolution 1080 × 1240
Display Colors 16.7M Color Gamut 94%
Pixel Pitch 0.0606(H) × 0.0606(V) mm Viewing Angle Full Viewing Angle
Brightness 500 cd/m² Display Interface 4-Lane MIPI
Pin Count 30 pins Touchscreen Yes
Touch Type Capacitive Touch Touch Interface I2C
Connector Type Plug-in Operating Voltage 1.8 V
Outline Dimensions 67.25 × 79.87 × 0.75 mm Visible Area 65.75 × 75.44 mm
Active Area 65.45 × 75.14 mm Service Life 30,000 hours
Operating Temperature -20°C to +70°C Storage Temperature -30°C to +80°C



AMOLED Displays Technology

YOURITECH. Comprehensive Manufacturing of  Touchscreen, Driver Board Options

Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.

Youritech Production and Manufacturing



Customization & Manufacturing

We support customize and manufacturing based on your requirements,look forward to your contact if you need mass production or design, quick technical support and competitive price will be provided.

Quality is constant

Diligence, processes, and attention to detail are at the core of our business. Our operational framework is built on the 4Cs:
four pillars of quality that underpin our role as the world’s leading display panel designer and manufacturer.

SHIPPING & DELIVERY FAQS

1. Where is my product ship from?
All of products are shipped from China/HK.

2. How long will it take for my order to arrive?
It depends on the shipping method you choose, if you have requirements for the delivery time, please choose the fastest delivery shipping method (DHL).

3. When my order will be shipped out?
Normally, displays take 2–5 days and the HDMI/Demo board takes 1–2 weeks because it needs to be fully tested and configured. If stock is sufficient, we will ship immediately.

4. What`re the function of HDMI board and demo board?
The HDMI board converts HDMI input into the panel's native signal (MIPI/eDP/LVDS), provides power rails and backlight control, it typically doesn`t have touch functionality unless the SKU indicates.
The demo board is a development tool for quickly lighting up and evaluating a display.
