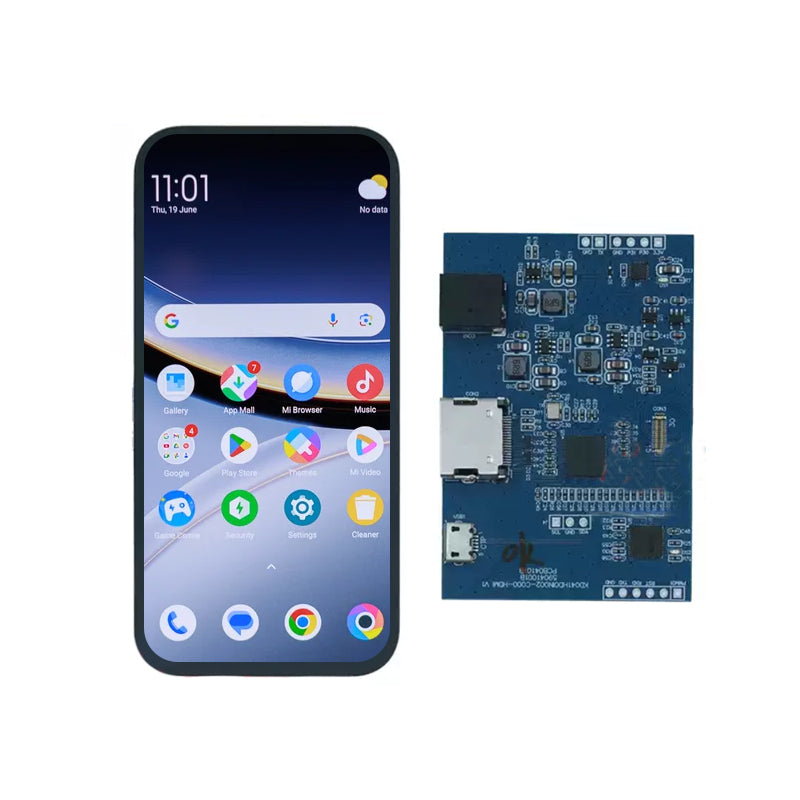

4.1 Inch AMOLED Display Screen 568x1232 HDMI Capacitive Touch Screen With HDMI Board AMOLED Display

4.1 Inch AMOLED Display Screen 568x1232 HDMI Capacitive Touch Screen With HDMI Board AMOLED Display

$62.48 USD
$62.48 USD
Sale Sold out
ET041AM01-KT-HDMI
For product datasheet and technical support, welcome to contact us at support@youritech.com;
Regarding project mass production needs, please share the FORECAST to info@youritech.com for receiving volume discount pricing.
View full details

Product Introduction


4.1 Inch AMOLED Display Overview

1232 pixels in a portrait orientation, supporting 16.7M colors. In terms of mechanical specifications, it features an active area of 43.55(W) × 94.47(H) mm, a visible area of 43.85(W) × 94.77(H) mm, and an outline dimension of 48.24(W) × 100.84(H) × 2.64(D) mm. Its pixel pitch is 0.07668(H) × 0.07668(V) mm.ET041AM01-KT-HDMI provides a typical brightness of 250 cd/m² and a contrast ratio of 100000:1, delivering vivid colors and deep blacks. It supports a full viewing angle for consistent image quality from different viewing directions and features a 100% color gamut for rich color reproduction. As a self-emissive display technology, AMOLED enables each pixel to emit its own light, producing deep blacks and high contrast. The module is driven by the RM69A10 driver IC and uses an HDMI 0 interface for display signal input. It also features capacitive touch functionality with a GT9895 touch controller and a Micro USB touch interface. With a plug-in connection, a 12V operating voltage, and a typical service life of 30,000 hours, ET041AM01-KT-HDMI is designed for integration into compact electronic systems. It operates at temperatures from -20°C to +70°C and can be stored at temperatures from -30°C to +80°C, making it suitable for industrial control equipment, smart devices, and other applications requiring a compact AMOLED display with capacitive touch functionality.
Product Specifications – ET041AM01-KT-HDMI
Parameter Specification Parameter Specification
Model Number ET041AM01-KT-HDMI Display Size 4.1 inch
Display Mode AMOLED Resolution 568 × 1232
Display Colors 16.7M Color Gamut 100%
Pixel Pitch 0.07668(H) × 0.07668(V) mm Viewing Angle Full Viewing Angle
Brightness 250 cd/m² Contrast Ratio 100000:1
Driver IC RM69A10 Display Interface HDMI0
Touchscreen Yes Touch Type Capacitive Touch
Touch Interface Micro USB Touch Controller IC GT9895
Connector Type Plug-in Operating Voltage 12 V
Outline Dimensions 48.24 × 100.84 × 2.64 mm Visible Area 43.85 × 94.77 mm
Active Area 43.55 × 94.47 mm Service Life 30,000 hours
Operating Temperature -20°C to +70°C Storage Temperature -30°C to +80°C



AMOLED Displays Technology

YOURITECH. Comprehensive Manufacturing of  Touchscreen, Driver Board Options

Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.

Youritech Production and Manufacturing



Customization & Manufacturing

We support customize and manufacturing based on your requirements,look forward to your contact if you need mass production or design, quick technical support and competitive price will be provided.

Quality is constant

Diligence, processes, and attention to detail are at the core of our business. Our operational framework is built on the 4Cs:
four pillars of quality that underpin our role as the world’s leading display panel designer and manufacturer.

SHIPPING & DELIVERY FAQS

1. Where is my product ship from?
All of products are shipped from China/HK.

2. How long will it take for my order to arrive?
It depends on the shipping method you choose, if you have requirements for the delivery time, please choose the fastest delivery shipping method (DHL).

3. When my order will be shipped out?
Normally, displays take 2–5 days and the HDMI/Demo board takes 1–2 weeks because it needs to be fully tested and configured. If stock is sufficient, we will ship immediately.

4. What`re the function of HDMI board and demo board?
The HDMI board converts HDMI input into the panel's native signal (MIPI/eDP/LVDS), provides power rails and backlight control, it typically doesn`t have touch functionality unless the SKU indicates.
The demo board is a development tool for quickly lighting up and evaluating a display.
