4.3 Inch AMOLED Display 568×1210 MIPI LTPS On-Cell Touch Screen

4.3 Inch AMOLED Display 568×1210 MIPI LTPS On-Cell Touch Screen

$53.11 USD
$53.11 USD
Sale Sold out
ET043AM01-K
For product datasheet and technical support, welcome to contact us at support@youritech.com;
Regarding project mass production needs, please share the FORECAST to info@youritech.com for receiving volume discount pricing.
View full details

Product Introduction


4.3 Inch AMOLED Display Overview

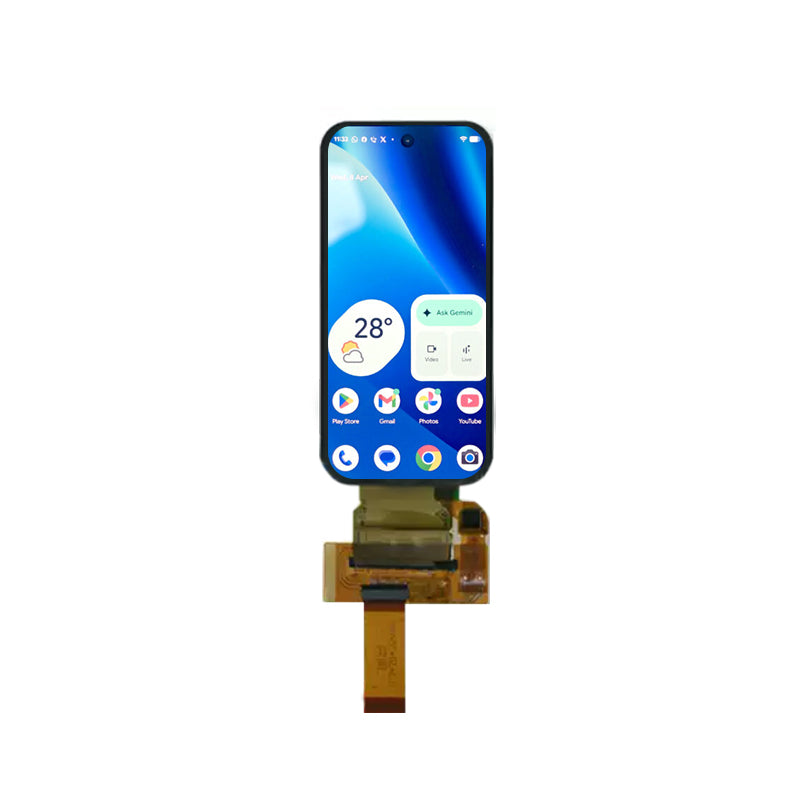

ET043AM01-K is a 4.3-inch AMOLED display module with a resolution of 568(RGB)×1210 and an aspect ratio of approximately 1:2.13 (W:H), featuring an on-cell capacitive touch screen. It has a pixel pitch of 0.0834(H)×0.0834(V) mm and a display area of 47.37(W)×100.91(H) mm. As for its mechanical specifications, it features an outline size of 49.13(W)×103.55(H)×0.75(D) mm. The ET043AM01-K provides a typical display brightness of 600 cd/m², a transmissive contrast ratio of 100000:1, full viewing angles, and a typical response time of 2 ms. With an 8-bit grayscale signal for each sub-pixel, it supports a palette of 16.7M colors and a color gamut of 100%. This product is self-emissive, utilizing AMOLED technology for vivid colors and deep blacks. The ET043AM01-K employs a 2-lane MIPI interface for signal input, driven by the SD5207 display driver IC and the CST3530 capacitive touch controller. It features a 39-pin plug-in connector and a typical operating voltage of 3.3V. Its service life is rated at 20,000 hours, with an operating temperature range of -20°C to +70°C and a storage temperature range of -30°C to +80°C.

Model ET043AM01-K 4.3 Inch AMOLED Display 568×1210 MIPI LTPS On-Cell Touch Screen
Size 4.3" Touch Yes
Touch Type Capacitive touch Display Mode AMOLED
Display Colors 16.7M Color Gamut 100%
Response Time 2ms Resolution 568x1210
Dot Pitch 0.0834(H)*0.0834(M) Viewing Angle All viewing angle
Driver IC SD5207 Outline Dimension 49.13*103.55*0.75mm
Active Area - Dot Area 47.37*100.91mm
Brightness 600cd/m² Contrast Ratio 100000:1
Interface MIPI2 LANE Pin Count 39
Pin Pitch -- Touch Interface -
Touch IC CST3530 Connection Type Plug-in type
Operating Voltage 3.3V Operating Life 20000h
Operating Temperature -20°C~+70°C Storage Temperature -30°C~+80°C

AMOLED Displays Technology

YOURITECH. Comprehensive Manufacturing of  Touchscreen, Driver Board Options

Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.

Youritech Production and Manufacturing



Customization & Manufacturing

We support customize and manufacturing based on your requirements,look forward to your contact if you need mass production or design, quick technical support and competitive price will be provided.

Quality is constant

Diligence, processes, and attention to detail are at the core of our business. Our operational framework is built on the 4Cs:
four pillars of quality that underpin our role as the world’s leading display panel designer and manufacturer.

SHIPPING & DELIVERY FAQS

1. Where is my product ship from?
All of products are shipped from China/HK.

2. How long will it take for my order to arrive?
It depends on the shipping method you choose, if you have requirements for the delivery time, please choose the fastest delivery shipping method (DHL).

3. When my order will be shipped out?
Normally, displays take 2–5 days and the HDMI/Demo board takes 1–2 weeks because it needs to be fully tested and configured. If stock is sufficient, we will ship immediately.

4. What`re the function of HDMI board and demo board?

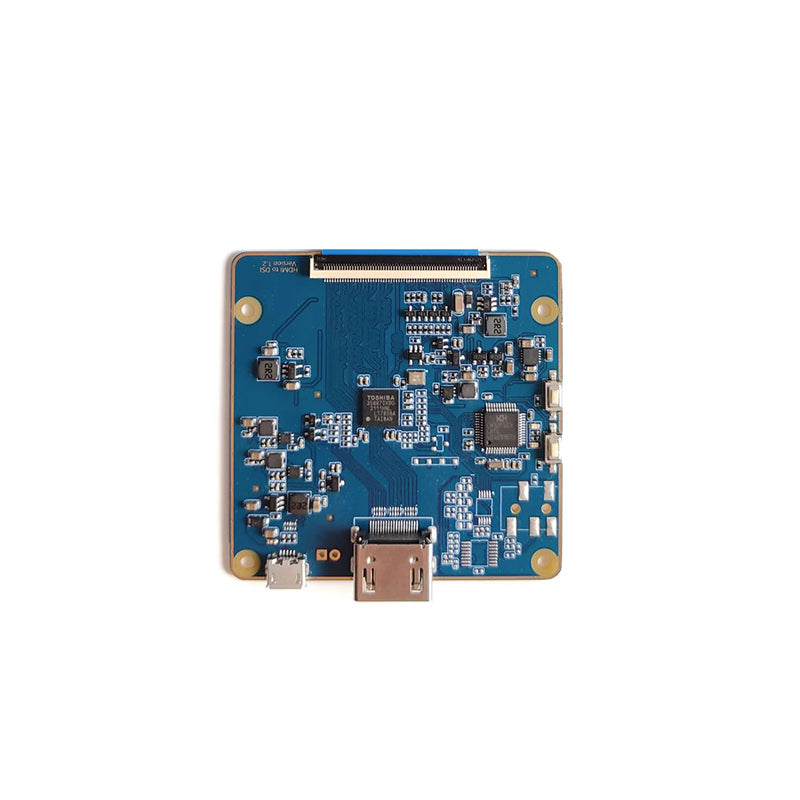

The HDMI board converts HDMI input into the panel's native signal (MIPI/eDP/LVDS), provides power rails and backlight control, it typically doesn`t have touch functionality unless the SKU indicates.
The demo board is a development tool for quickly lighting up and evaluating a display.
