4.97 Inch AMOLED Display 720×1280 LTPS CAN Interface OLED Display with On-Cell Touch

4.97 Inch AMOLED Display 720×1280 LTPS CAN Interface OLED Display with On-Cell Touch

$106.25 USD
$106.25 USD
Sale Sold out
ET050AM02-K-CAN
For product datasheet and technical support, welcome to contact us at support@youritech.com;
Regarding project mass production needs, please share the FORECAST to info@youritech.com for receiving volume discount pricing.
View full details

Product Introduction

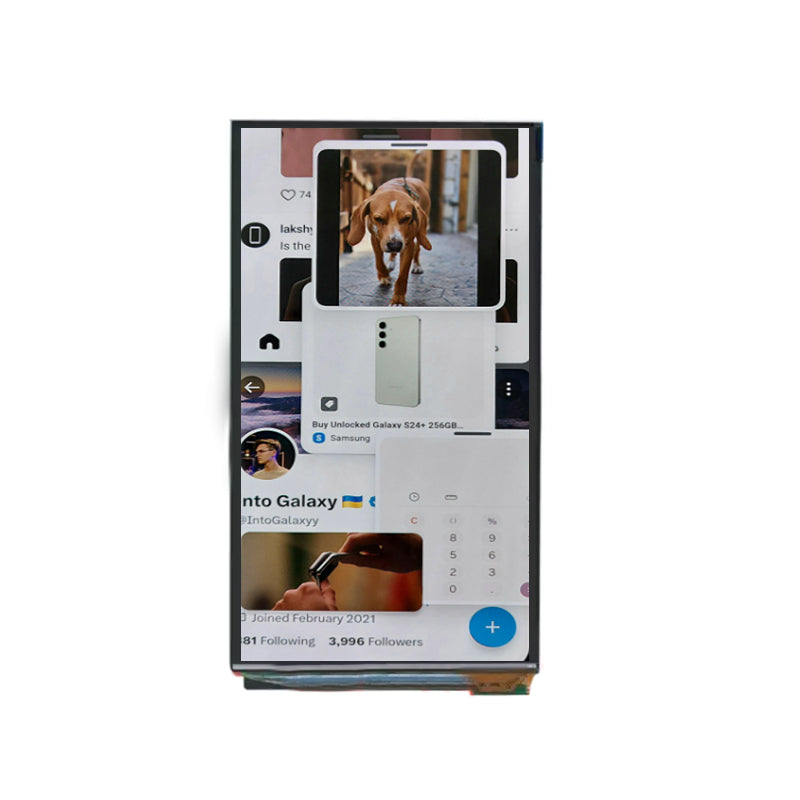

4.97 Inch AMOLED Display Overview
ET050AM02-K-CAN is a 4.97-inch LTPS AMOLED display featuring a resolution of 720×1280, delivering clear images and fine details. As for mechanical details, it features a dot matrix area of 61.88(W)×110.02(H) mm and an outline size of 64.12(W)×116.72(H)×11.44(D) mm. ET050AM02-K-CAN provides 460 cd/m² display brightness, a contrast ratio of 60,000:1, full viewing angles, and a fast response time of 2 ms. It supports 16.7M colors and a 105% color gamut for vivid colors and enhanced image reproduction. This product utilizes LTPS AMOLED technology with an On-Cell touch structure, combining high-quality visuals with integrated touch functionality. ET050AM02-K-CAN uses a CAN interface for display signal communication and a USB interface for touch operation. It features an RM67295 driver IC and operates at 5V. With a rated lifetime of 30,000 hours, it supports an operating temperature range of -20°C to +70°C and a storage temperature range of -30°C to +80°C, making it suitable for industrial control systems, vehicle-mounted equipment, and other applications requiring a compact display with touch functionality and CAN connectivity.

Model ET050AM02-K-CAN  4.97 Inch AMOLED Display 720×1280 LTPS CAN Interface OLED Display with On-Cell Touch
Display Mode AMOLED Display Color 16.7M
Color Gamut 105% Response Time 2ms
Resolution 720x1280 Dot Pitch 0.2865(H)*0.8595(V)
Viewing Angle All viewing angle Driver IC RM67295
Outline Dimension 64.12*116.72*11.44mm Dot Area 61.88*110.02mm
Brightness 460cd/m² Contrast Ratio 60000:1
Interface CAN Touch Interface USB
Connection Type Plug-in type Operating Voltage 5V
Operating Life 30000h Operating Temperature -20℃～+70℃
Storage Temperature -30℃～+80℃


AMOLED Displays Technology

YOURITECH. Comprehensive Manufacturing of  Touchscreen, Driver Board Options

Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.

Youritech Production and Manufacturing



Customization & Manufacturing

We support customize and manufacturing based on your requirements,look forward to your contact if you need mass production or design, quick technical support and competitive price will be provided.

Quality is constant

Diligence, processes, and attention to detail are at the core of our business. Our operational framework is built on the 4Cs:
four pillars of quality that underpin our role as the world’s leading display panel designer and manufacturer.

SHIPPING & DELIVERY FAQS

1. Where is my product ship from?
All of products are shipped from China/HK.

2. How long will it take for my order to arrive?
It depends on the shipping method you choose, if you have requirements for the delivery time, please choose the fastest delivery shipping method (DHL).

3. When my order will be shipped out?
Normally, displays take 2–5 days and the HDMI/Demo board takes 1–2 weeks because it needs to be fully tested and configured. If stock is sufficient, we will ship immediately.

4. What`re the function of HDMI board and demo board?
The HDMI board converts HDMI input into the panel's native signal (MIPI/eDP/LVDS), provides power rails and backlight control, it typically doesn`t have touch functionality unless the SKU indicates.

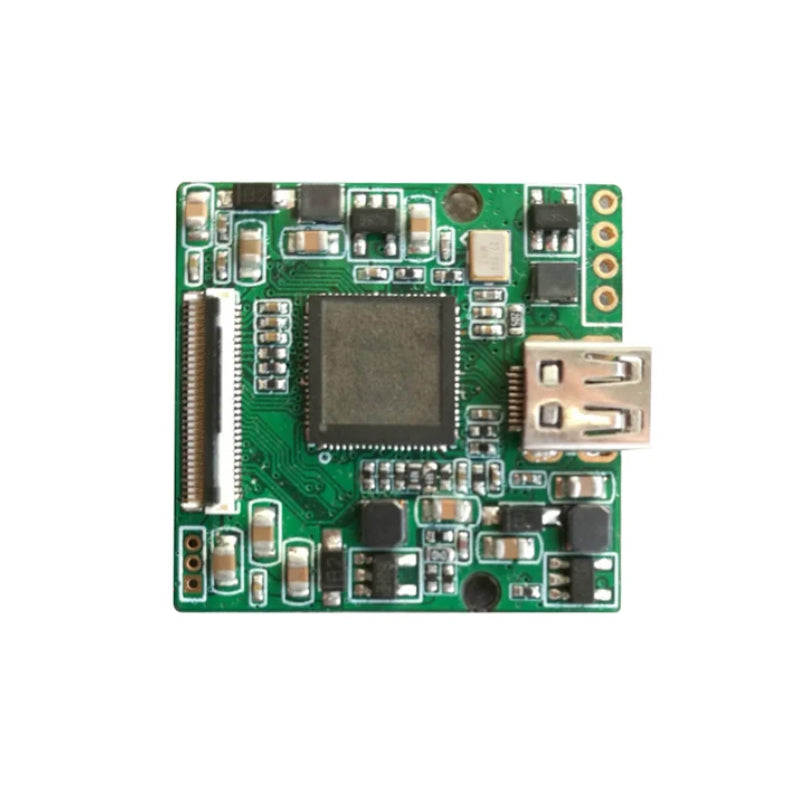

The demo board is a development tool for quickly lighting up and evaluating a display.
