4 Inch AMOLED Display 1080×1200 LTPS MIPI OLED Display with Capacitive Touch

4 Inch AMOLED Display 1080×1200 LTPS MIPI OLED Display with Capacitive Touch

$142.92 USD
$142.92 USD
Sale Sold out
ET040AM01-KT
For product datasheet and technical support, welcome to contact us at support@youritech.com;
Regarding project mass production needs, please share the FORECAST to info@youritech.com for receiving volume discount pricing.
View full details

Product Introduction


4 Inch AMOLED Display Overview

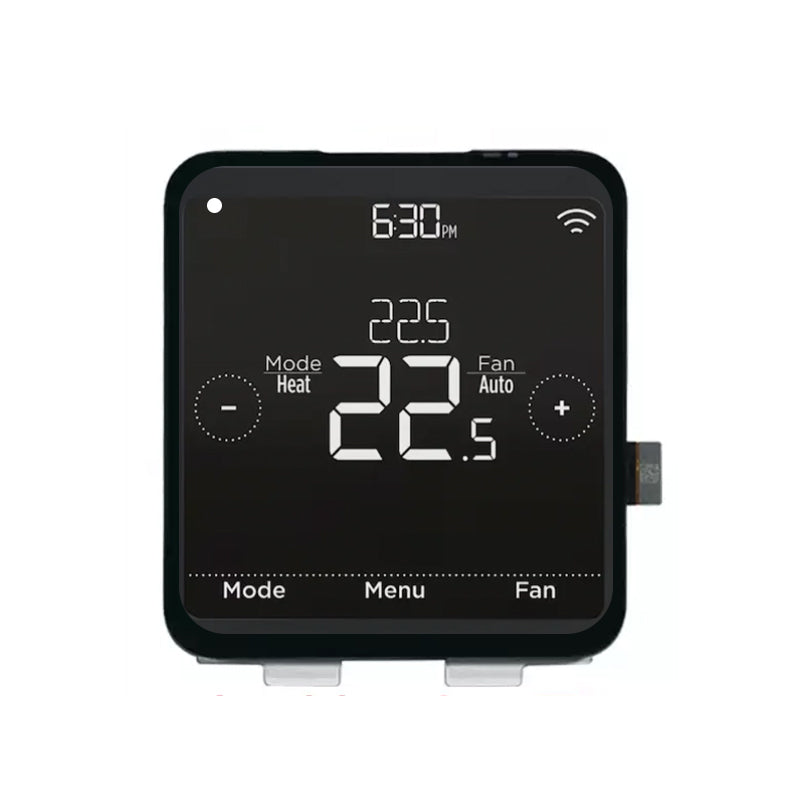

ET040AM01-KT supports a display resolution of 1080×1200, delivering sharp images and fine details. As for mechanical details, it features an active area of 68.83(W)×76.43(H) mm, an outline size of 72.93(W)×80.53(H)×1.12(D) mm, and a capacitive touch panel. ET040AM01-KT provides 600 cd/m² display brightness, full viewing angles, and a 10-bit color depth, presenting vivid colors with a 100% color gamut. This product utilizes LTPS AMOLED technology, allowing each pixel to emit its own light for rich colors and high image clarity. ET040AM01-KT utilizes MIPI as its display signal input interface and SPI for touch signal transmission, with a display driver IC of VTDR6130A and a touch controller IC of FT3383. It operates at a voltage of 1.8V and supports an operating temperature range of -20°C to +70°C and a storage temperature range of -40°C to +80°C. Its rated lifetime is 30,000 hours.

Model ET040AM01-KT  4 Inch AMOLED Display 1080×1200 LTPS MIPI OLED Display with Capacitive Touch
Size 4.0 inch Touch Yes
Touch Type Capacitive touch Display Mode AMOLED
Display Color 10 bit Color Gamut 100%
Resolution 1080×1200 Dot Pitch 0.06336(H)*0.03168(V)
Viewing Angle All viewing angle Driver IC VTDR6130A
Outline Dimension 72.93*80.53*1.12mm Active Area 68.83*76.43mm
Dot Area 68.43*76.03mm Brightness 600cd/m²
Interface MIPI Pin Count 46
Touch Interface SPI Touch IC FT3383
Connection Type Plug-in type Operating Voltage 1.8V
Operating Life 30000h Operating Temperature -20℃～+70℃
Storage Temperature -40℃～+80℃

AMOLED Displays Technology

YOURITECH. Comprehensive Manufacturing of  Touchscreen, Driver Board Options

Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.

Youritech Production and Manufacturing



Customization & Manufacturing

We support customize and manufacturing based on your requirements,look forward to your contact if you need mass production or design, quick technical support and competitive price will be provided.

Quality is constant

Diligence, processes, and attention to detail are at the core of our business. Our operational framework is built on the 4Cs:
four pillars of quality that underpin our role as the world’s leading display panel designer and manufacturer.

SHIPPING & DELIVERY FAQS

1. Where is my product ship from?
All of products are shipped from China/HK.

2. How long will it take for my order to arrive?
It depends on the shipping method you choose, if you have requirements for the delivery time, please choose the fastest delivery shipping method (DHL).

3. When my order will be shipped out?
Normally, displays take 2–5 days and the HDMI/Demo board takes 1–2 weeks because it needs to be fully tested and configured. If stock is sufficient, we will ship immediately.

4. What`re the function of HDMI board and demo board?
The HDMI board converts HDMI input into the panel's native signal (MIPI/eDP/LVDS), provides power rails and backlight control, it typically doesn`t have touch functionality unless the SKU indicates.
The demo board is a development tool for quickly lighting up and evaluating a display.
