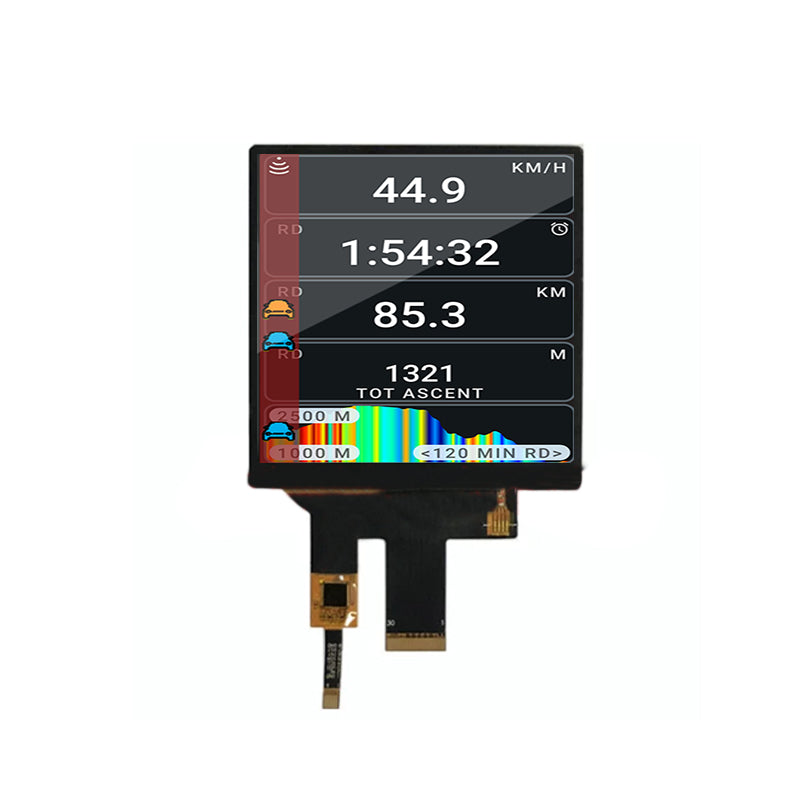

4 Inch IPS LCD Display 720×720 MIPI High Brightness Wide Viewing Angle Square LCD Screen

4 Inch IPS LCD Display 720×720 MIPI High Brightness Wide Viewing Angle Square LCD Screen

$27.39 USD
$27.39 USD
Sale Sold out
ET040HD20-K
For product datasheet and technical support, welcome to contact us at support@youritech.com;
Regarding project mass production needs, please share the FORECAST to info@youritech.com for receiving volume discount pricing.
View full details

Product Introduction


4 Inch Square Display Overview

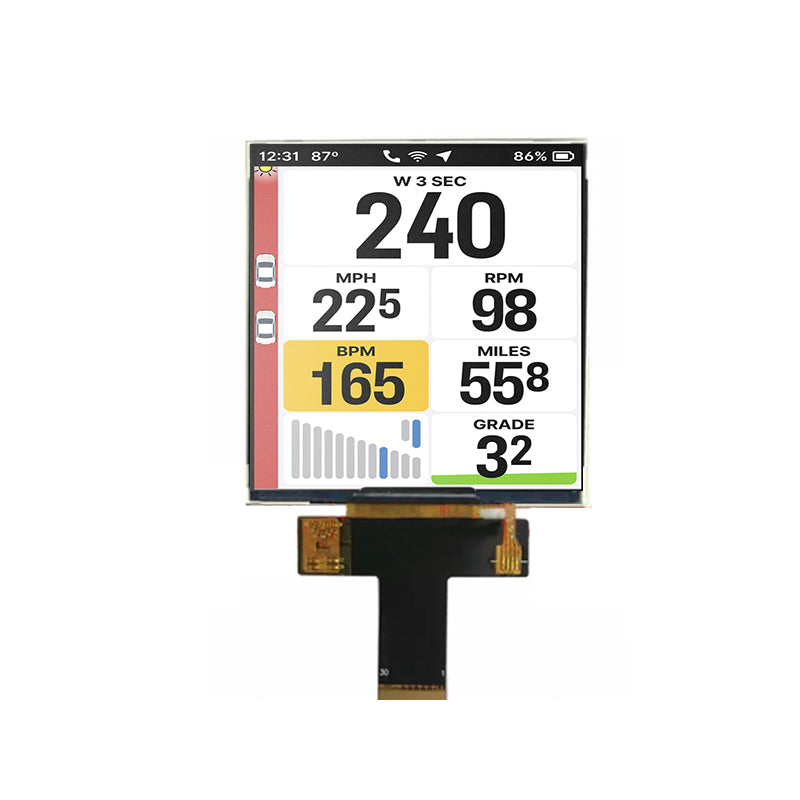

ET040HD20-K is a 4-inch square IPS TFT LCD display featuring a 720×720 resolution and a 1:1 aspect ratio (W), delivering clear images and detailed visuals. As for mechanical details, it features an active area of 71.93(W)×71.93(H) mm and an outline size of 77(W)×80(H)×2.6(D) mm. ET040HD20-K provides 700 cd/m² display brightness, a contrast ratio of 900:1, and full viewing angles for clear image reproduction from different directions. It supports 16.7M colors and uses a transmissive, normally black display mode for consistent visual performance. This IPS LCD panel features an ST7703 controller IC and a MIPI interface for signal transmission. It has 30 pins with a 0.5 mm pitch and a plug-in connection type. Operating at 3.3V, the module uses a white LED backlight with a 6-series, 2-parallel configuration, a backlight voltage of 18.6V, and a current of 40mA. With a rated lifetime of 50,000 hours, it supports an operating temperature range of -30°C to +80°C and a storage temperature range of -30°C to +85°C, making it suitable for industrial equipment, embedded systems, automotive displays, and other applications requiring a high-brightness square LCD.

Model ET040HD20-K  4 Inch IPS LCD Display 720×720 MIPI High Brightness Wide Viewing Angle Square LCD Screen
Size 4.0 inch Touch No
Display Mode IPS Display Color 16.7M
Resolution 720x720 Dot Pitch 0.0999(H)*0.0999(V)
Viewing Angle All viewing angle Driver IC ST7703
Display Type Transmissive, Normally Black Outline Dimension 77*80*2.6mm
Dot Area 71.93*71.93mm Brightness 700cd/m²
Contrast Ratio 900 Interface MIPI
Pin Count 30 Pin Pitch 0.5mm
Connection Type Plug-in type Operating Voltage 3.3V
Backlight White LED Backlight Circuit 6 series 2 parallel, Viad=18.6V, Iad=40mA
Operating Life 50000h Operating Temperature -30℃~+80℃
Storage Temperature -30℃~+85℃


YOURITECH. Comprehensive Manufacturing of  Touchscreen, Driver Board Options

Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.

Production and Manufacturing



Customization & Manufacturing

We support customize and manufacturing based on your requirements,look forward to your contact if you need mass production or design, quick technical support and competitive price will be provided.

Quality is constant

Diligence, processes, and attention to detail are at the core of our business. Our operational framework is built on the 4Cs:
four pillars of quality that underpin our role as the world’s leading display panel designer and manufacturer.

SHIPPING & DELIVERY FAQS

1. Where is my product ship from?
All of products are shipped from China/HK.

2. How long will it take for my order to arrive?
It depends on the shipping method you choose, if you have requirements for the delivery time, please choose the fastest delivery shipping method (DHL).

3. When my order will be shipped out?
Normally, displays take 2–5 days and the HDMI/Demo board takes 1–2 weeks because it needs to be fully tested and configured. If stock is sufficient, we will ship immediately.

4. What`re the function of HDMI board and demo board?

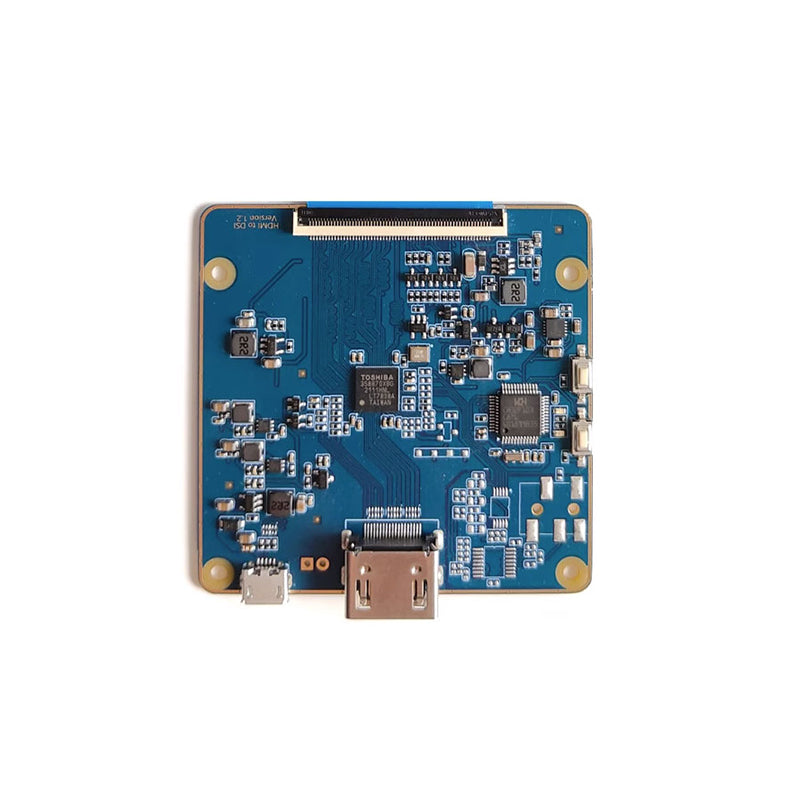

The HDMI board converts HDMI input into the panel's native signal (MIPI/eDP/LVDS), provides power rails and backlight control, it typically doesn`t have touch functionality unless the SKU indicates.
The demo board is a development tool for quickly lighting up and evaluating a display.
