4 Inch Square LCD Display 480x480 MIPI IPS LCD Screen For Industrial Display

4 Inch Square LCD Display 480x480 MIPI IPS LCD Screen For Industrial Display

$120.00 USD
$120.00 USD
Sale Sold out
ET040SQ04-T
For product datasheet and technical support, welcome to contact us at support@youritech.com;
Regarding project mass production needs, please share the FORECAST to info@youritech.com for receiving volume discount pricing.
View full details

Product Introduction


4 Inch Square Display Overview

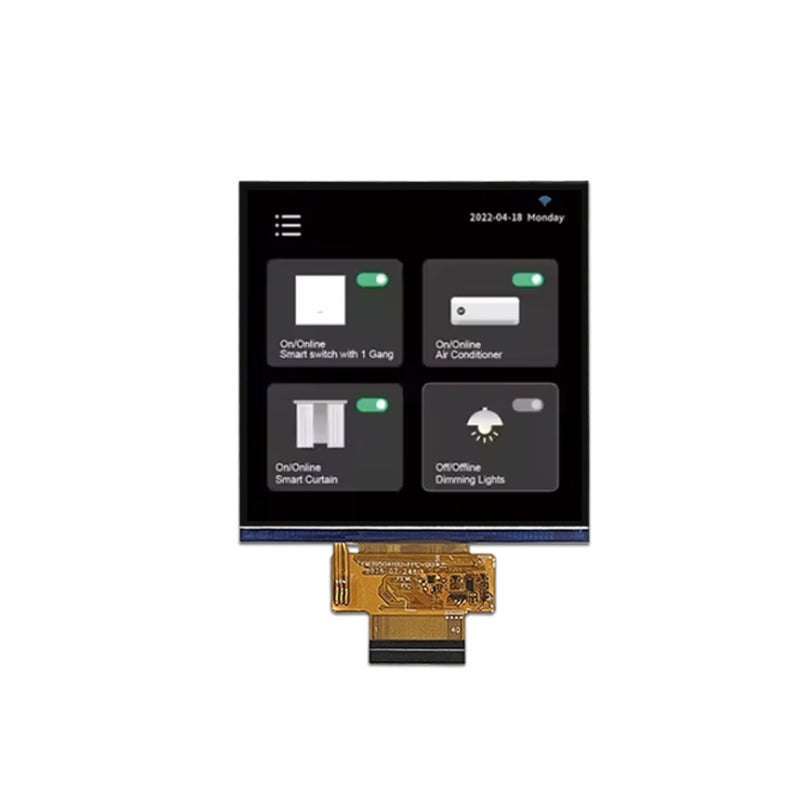

ET040SQ04-T is a 4.0-inch IPS TFT LCD display module featuring a resolution of 480 × 480 pixels, with pixels arranged in a square display format. In terms of mechanical specifications, it features a display area of 71.86(W) × 70.18(H) mm and an outline dimension of 74.66(W) × 76.54(H) × 2.06(D) mm.ET040SQ04-T provides a brightness of 300 cd/m² and adopts IPS technology to deliver a full viewing angle, ensuring consistent image quality from different viewing directions. The module is driven by the ST7102 display controller and supports multiple interface options, including 3SPI + 18RGB and 2-lane MIPI, offering flexible connectivity for embedded display applications. It features a 40-pin connection and is suitable for smart devices, industrial control panels, handheld terminals, instruments, and other applications requiring a compact square display with wide viewing angles. It operates at temperatures from -20°C to +70°C and can be stored at temperatures from -30°C to +80°C. The minimum order quantity (MOQ) is 10 pieces.
Product Specifications – ET040SQ04-T
Parameter Specification Parameter Specification
Part No. ET040SQ04-T Display Type IPS TFT LCD
Resolution 480 × 480 Display Area 71.86 × 70.18 mm
Outline Dimension 74.66 × 76.54 × 2.06 mm Brightness 300 cd/m²
Viewing Angle IPS Full Viewing Angle Display Controller ST7102
Panel Interface 3SPI + 18RGB / 2-Lane MIPI Pin Count 40 pins
Operating Temperature -20°C to +70°C Storage Temperature -30°C to +80°C
MOQ 10 pcs


YOURITECH. Comprehensive Manufacturing of  Touchscreen, Driver Board Options

Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.

Production and Manufacturing



Customization & Manufacturing

We support customize and manufacturing based on your requirements,look forward to your contact if you need mass production or design, quick technical support and competitive price will be provided.

Quality is constant

Diligence, processes, and attention to detail are at the core of our business. Our operational framework is built on the 4Cs:
four pillars of quality that underpin our role as the world’s leading display panel designer and manufacturer.

SHIPPING & DELIVERY FAQS

1. Where is my product ship from?
All of products are shipped from China/HK.

2. How long will it take for my order to arrive?
It depends on the shipping method you choose, if you have requirements for the delivery time, please choose the fastest delivery shipping method (DHL).

3. When my order will be shipped out?
Normally, displays take 2–5 days and the HDMI/Demo board takes 1–2 weeks because it needs to be fully tested and configured. If stock is sufficient, we will ship immediately.

4. What`re the function of HDMI board and demo board?
The HDMI board converts HDMI input into the panel's native signal (MIPI/eDP/LVDS), provides power rails and backlight control, it typically doesn`t have touch functionality unless the SKU indicates.
The demo board is a development tool for quickly lighting up and evaluating a display.
