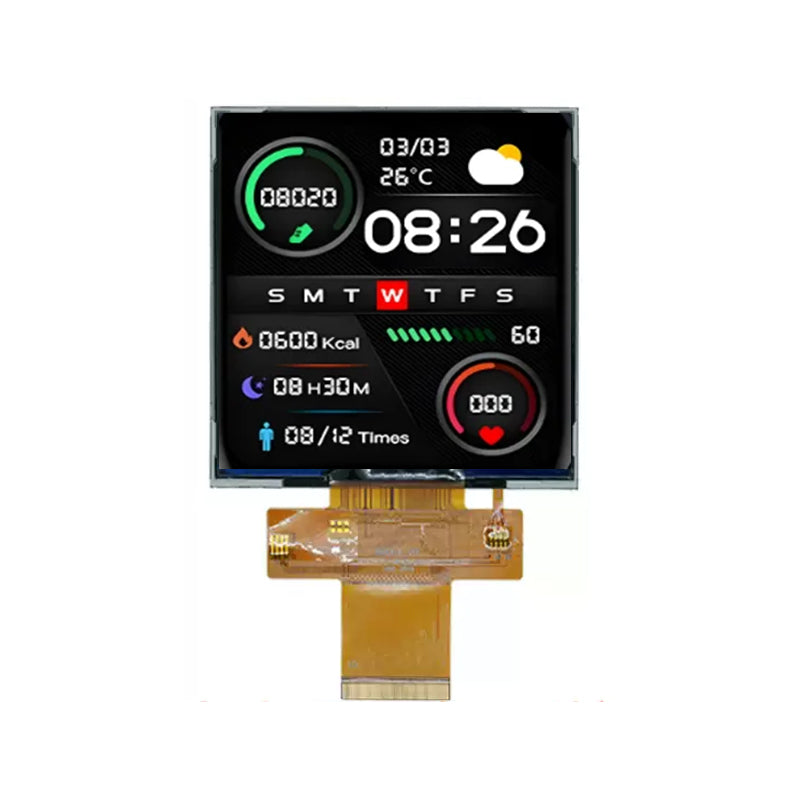

4 Inch TFT LCD Display 480×480 IPS RGB ST7701S High Brightness Wide Temperature Square Display

4 Inch TFT LCD Display 480×480 IPS RGB ST7701S High Brightness Wide Temperature Square Display

$15.20 USD
$15.20 USD
Sale Sold out
ET040WF01-K-a
For product datasheet and technical support, welcome to contact us at support@youritech.com;
Regarding project mass production needs, please share the FORECAST to info@youritech.com for receiving volume discount pricing.
View full details

Product Introduction


4 Inch Square Display Overview
ET040WF01-K-a supports a display resolution of 480×480 with a square aspect ratio of 1:1 (W:H), delivering sharp images and vivid colors. As for mechanical details, it features an active area of 71.86(W)×70.18(H) mm, a viewing area of 72.86(W)×71.18(H) mm, and an outline size of 77.00(W)×80.00(H)×2.30(D) mm. ET040WF01-K-a provides 1000 cd/m² display brightness, an 800:1 contrast ratio, and a full viewing angle, ensuring excellent visibility in bright environments. The display supports 65K, 262K, and 16.7M colors and adopts IPS technology with a normally black, transmissive display mode. It utilizes the ST7701S driver IC and supports 16/18/24-bit RGB interfaces, with a typical power supply voltage of 3.3V. The module features 45 pins with a 0.5 mm pitch and a white LED backlight consisting of 12 LEDs arranged in 6 series-connected and 2 parallel-connected strings, operating at 18.4V and 40mA, with a typical lifetime of 50,000 hours. It supports a wide operating temperature range of -30°C to +85°C and a storage temperature range of -40°C to +90°C.

Model ET040WF01-K-a  4 Inch IPS TFT LCD Display 480×480 RGB ST7701S High Brightness Wide Temperature Square Display
Size 4.0 inch Touch No
Display Mode IPS Display Color 65K/262K/16.7M
Resolution 480×480 Dot Pitch 0.1497(H)*0.1462(V)
Viewing Angle All viewing angle Driver IC ST7701S
Display Type Transmissive, Normally Black Outline Dimension 77.00*80.00*2.30mm
Active Area 72.86*71.18mm Dot Area 71.86*70.18mm
Brightness 1000cd/m² Contrast Ratio 800:1
Interface 16/18/24-bit RGB Pin Count 45
Pin Pitch 0.5mm Connection Type Plug-in type
Operating Voltage 3.3V Backlight White LED
Backlight Circuit 12 LEDs, 6 series 2 parallel, Vf=18.4V, If=40mA Operating Life 50000h
Operating Temperature -30℃~+85℃ Storage Temperature -40℃~+90℃
