4 Inch Wide Temperature TFT LCD Display MIPI 720x720 ST7703 -30°C to 80°C High Brightness Display With Capacitive Touch

4 Inch Wide Temperature TFT LCD Display MIPI 720x720 ST7703 -30°C to 80°C High Brightness Display With Capacitive Touch

$45.00 USD
$45.00 USD
Sale Sold out
ET040HD20-KT
For product datasheet and technical support, welcome to contact us at support@youritech.com;
Regarding project mass production needs, please share the FORECAST to info@youritech.com for receiving volume discount pricing.
View full details

Product Introduction


4 Inch 720x720 Wide Temperature Display Overview

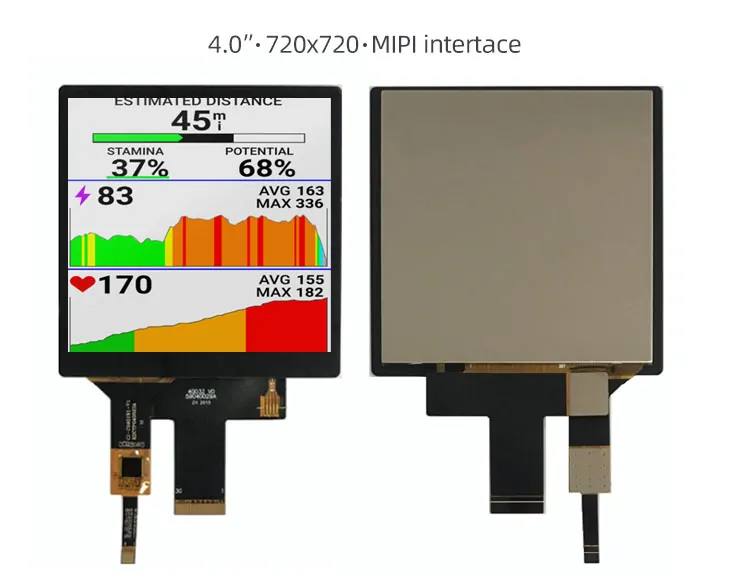

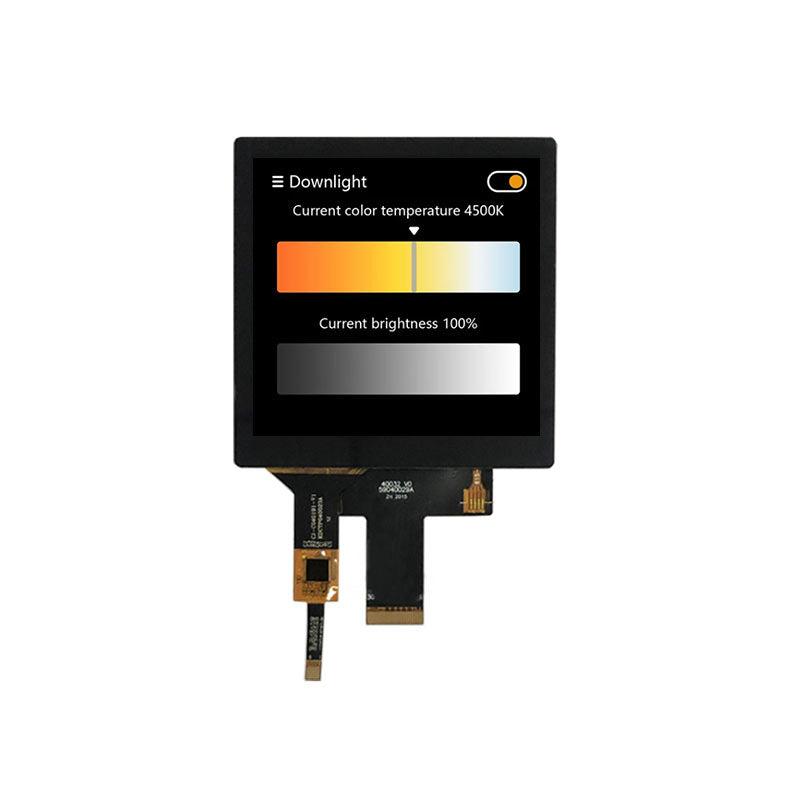

ET040HD20-KT is a 4-inch diagonal TFT-LCD display module designed for wide temperature industrial applications. It supports a resolution of 720×720 with a square aspect ratio of 1:1 (W:H) and utilizes a MIPI interface driven by the ST7703 controller for high-speed and stable signal transmission. The display features an active area of 71.928 (W) × 71.928 (H) mm and an outline dimension of 84 (W) × 85.99 (H) × 3.76 (D) mm. It delivers a brightness of 650 cd/m², ensuring reliable visibility under various lighting conditions. With a free viewing angle (L/R/U/D), it provides consistent image quality from multiple directions. The module integrates a capacitive touch panel for enhanced user interaction and is engineered for dependable operation within a wide temperature range of -30°C to 80°C.


4 Inch 720x720 Wide Temperature Display Application
For industrial & Advertising & Medical Instruments & Outdoor & Automotive Display.

Wide Temperature Display List For Reference

Size Resolution Driver Interface Brightness Dimension(mm) Active Area(mm)
2.0” 480x320 ST7701S SPI+RGB 900 nits 46.5x41.56x2.0 40.8x30.6
480x320 ST7701S MIPI 900 nits 46.50x41.56x2.0 40.8x30.6
480x320 ST7701S SPI+RGB 810 nits 54.5x47.56x4.15 40.824x30.618
480x320 ST7701S MIPI 810 nits 54.5x47.56x4.15 40.824x30.618
2.4” 240x320 ST7789V SPI&MCU&RGB 400 nits 48.72x70.26x4.33 36.72x48.96
240x240 ST7789V SPI&MCU&RGB 550 nits 42.92x60.26x2.5 36.72x48.96
480x640 ST7701SI SPI+RGB 800 nits 42.92x60.26x2.3 36.72x48.96
480x640 ST7701S SPI+RGB 680 nits 48.72x70.26x3.94 36.72x48.96
480x640 ST7701SI MIPI 800 nits 42.92x60.26x2.3 36.72x48.96
480x640 ST7701SI MIPI 680 nits 48.72x70.26x3.94 36.72x48.96
2.6” 320x432 ILI9488 MIPI 500 nits 46.76x65.85x2.6 39.84x53.78
320x432 ILI9488 SPI&MCU&RGB 500 nits 46.76x65.85x2.6 39.84x53.78
320x432 ILI9488 SPI&MCU&RGB 420 nits 46.76x65.85x4.26 39.84x53.78
2.7” 320x320 ST7796S SPI&MCU&RGB 860 nits 53.4x59.9x2.29 48.96x48.96
320x320 ST7796S SPI&MCU&RGB 760 nits 63.4x69.9x3.77 48.96x48.96
320x320 ST7796S MIPI 850 nits 53.4x59.9x2.29 48.96x48.96
320x320 ST7796S MIPI 800 nits 63.4x69.9x3.77 48.96x48.96
2.8” 240x320 ST7789V SPI&MCU&RGB 700 nits 50.5x69.75x2.6 43.2x57.6
3.5” 320x240 ST7272A RGB 920 nits 76.9x63.9x3.17 70.08x52.56
320x240 ST7272A RGB 780 nits 76.9x63.9x4.4 70.08x52.56
240x320 HX8347A MCU 500 nits 63x85x3 53.28x71.04
240x320 HX8347A SPI&MCU&RGB 400 nits 63x85x4.73 53.28x71.04
320x480 ST7796S MCU&RGB 800 nits 55.50x84.96x2.5 48.96x73.44
320x480 ST7796S MCU&RGB 710 nits 55.50x84.96x4.25 48.96x73.44
640x960 ST7703 MIPI 500 nits 54.58x84.42x2.55 49.92x74.88
640x960 NV3052CGRB SPI+RGB 500 nits 54.58x84.42x2.55 49.92x74.88
640*960 NV3052CGRB SPI+RGB 450 nits 61.90x96.04x4.57 49.92x74.88
640*960 ST7703 MIPI 450 nits 61.90x96.04x4.57 49.92x74.88
640x480 TBD LVDS 1000 nits 74.38x62.35x2.43 70.08x52.56
640x480 TBD LVDS 1000 nits 85.80x85.80x4.85 70.08x52.56
640x480 NV3052CGRB RGB 1100 nits 74.38x62.35x2.43 70.08x52.56
320x480 AXS15231 MIPI 800 nits 61.90x96.04x4.24 48.96x73.44
4.0” 480x480 ST7701S MIPI 1000 nits 77x80x2.3 71.86x70.18
480x480 ST7701S RGB 1000 nits 77x80x2.3 71.86x70.18
480x480 ST7701S MIPI 950 nits 77x80x4.35 71.86x70.18
480x480 ST7701S RGB 800 nits 77x80x4.51 71.86x70.18
720x720 ST7703 MIPI 700 nits 77x80x2.6 71.93x71.93
720x720 ST7703 MIPI 650 nits 84x85.99x3.76 71.928x71.928
720x720 NV3052CGRB SPI+RGB 700 nits 77x80x2.6 71.93x71.93
720x720 NV3052CGRB SPI+RGB 650 nits 84x85.99x4.23 71.93x71.93
480x480 ST7701S LVDS 900 nits 77x80x2.35 71.86x70.18
480x480 ST7701S LVDS 900 nits 77x80x4.51 71.86x70.18
720x720 NV3051F-L LVDS 700 nits 77x80x2.6 71.93x71.93
4.3” 480x272 SC7283 RGB 900 nits 105.4x67.15x2.85 95.04x53.86
480x272 SC7283 RGB 850 nits 105.4x67.15x4.35 95.04x53.86
800x480 ST7262 LVDS 1200 nits 105.4x67.15x2.91 95.04x53.86
800x480 ST7262 RGB 1200 nits 105.40x67.15x2.91 95.04x53.86
800x480 ST7262 RGB 1100 nits 105.40x67.15x4.36 95.04x53.86
5.0” 800x480 ST7262 RGB 650 nits 120.7x75.9x2.95 108.0x64.8
800x480 ST7262 RGB 580 nits 120.7x75.9x4.38 108.0x64.8
5.7” 640x480 JD9186S RGB 600 nits 126.5x100.0x4.5 115.20x86.4
640x480 TBD RGB 550 nits 126.5x100.0x22.32 115.2x86.4
6.2” 640x240 ST5043AA/ST5894AA HDMI 900 nits 163.1x67.1x17.77 148.8x53.76
640x240 ST5043AA/ST5894AA RGB 900 nits 163.1x67.1x2.7 148.8x53.76
640x240 ST5043AA/ST5894AA RGB 900 nits 173.8x82.76x4.76 148.8x53.76
6.8” 800x480 TBD RGB 800 nits 156.1x100.91x5.5 148.10x88.86
800x480 TBD RGB 800 nits 155.96x100.77x7.29 148.1x88.8624
7.0” 800x480 RM533CO+RM577C1 RGB 1300 nits 165.4x104.59x5.8 152.4x91.44
800x480 RM533CO+RM577C1 LVDS 1100 nits 165.4x104.59x6.85 152.40x91.44
1280x768 HX8298-Ax3+HX8695Ex1 LVDS 1000 nits 166.9x108.65x7.4 152.45x91.47
800x480 SC5004/SC5005 RGB 350 nits 58.5x41.8x2.58 52.32x31.392
1280x768 HX8298-Ax3+HX8695Ex1 LVDS 980 nits 182.45x121.47x9.38 152.45x91.47
1024x600 EK73215&EK79001 LVDS 500 nits 165.1x100.1x5.5 154.21x85.92
800x480 EK9713+EK73002+THC63LVDF84C LVDS 450 nits 182.07x117.60x8.15 154.08x85.92
1024x600 EK73215&EK79001 LVDS 1600 nits 165.1x100.1x6.62 154.21x85.92
800x480 SC5004/SC5005 LVDS 1000 nits 165.4x104.59x7.73 152.40x91.44
800x480 RM533CO+RM577C1 RGB 1100 nits 178.9x115.59x6.91 152.40x91.44
8.0” 1920x1200 TBD LVDS 1600 nits 179.96x119.92x4.2 172.22x107.64
9.0” 1280x720 TBD LVDS 1000 nits 210.70x124.15x6.2 198.91x111.89
9.8” 1280x320 TBD LVDS 1300 nits 252.752x73.171x11 241.152x60.288
10.1” 1280x800 TBD LVDS 1300 nits 232.70x155.55x6.44 216.96x135.6
1280x800 TBD LVDS 1100 nits 232.70x155.55x6.44 216.96x135.6
1920x1200 4*HX8255+2*HX8678 LVDS 400 nits 237.92x157.88x13.00 217.44x135.9
1920x1200 4*HX8255+2*HX8678 LVDS 350 nits 237.92x157.88x15.10 217.44x135.9
1280x720 TBD LVDS 650 nits 238.6x148x6.5 223.68x125.82
1280x800 EK79202DA MIPI 550 nits 229.06x148.7x2.56 216.96x135.60
1280x800 EK79202D MIPI 500 nits 244.45x173.88x4.76 216.96x135.6
10.4” 1024x768 TBD LVDS 1500 nits 238.6x175.8x9.2 210.432x157.824
12.1” 1024x768 ILITEK2303 LVDS 600 nits 281.8x220.7x11.18 245.76x184.32
1280x800 HX8245-J+HX8695-E LVDS 400 nits 278x184x9.2 261.12x163.2
1280x800 TBD LVDS 1300 nits 283x185.1x9.4 261.12x163.2
12.3” 1920x720 TBD LVDS 850 nits 312.9x132.2x13.2 292.032x109.512
12.8” 1920x1080 TBD LVDS 1100 nits 294.4x175x5 283.392x159.408
1920x1080 TBD HDMI 750 nits 294.4x175x26.2 283.392x159.408
15.6” 1920x1080 TBD LVDS 1300 nits 363.8x215.9x9.3 344.16x193.59
17.0” 1280x1024 TBD LVDS 1400 nits 358.5x296.5x10.5 337.92x270.336
18.5” 1920x1080 TBD LVDS 350 nits 430.40x254.6x12 408.96x230.04
1920x1080 TBD LVDS 1000 nits 430.40x254.6x12 408.96x230.04
19.0” 1280x1024 TBD LVDS 450 nits 396x324.0x12.88 376.32x301.06
Touch Screens are Available and Optional

4 Inch 720x720 Wide Temperature Display Custom LCD Solutions for Diverse Applications
Brightness from 0-3000 for perfect display effect achievement.
100% NTSC makes the vividness of the picture better and the color transition in the picture more natural.
Color Temperature is positive white at around 5500K, warm white (yellowish) at 3500K and also cool white (cold) at 6500K.
Driver circuit with sufficient voltage and current values to meet output requirements and reduce the secondary development cycle.
Heat dissipation for high-brightness products to advance design of reasonable heat dissipation structure
Power consumption, we increase the brightness without increasing the power consumption.
Cables, Backlighting also requires cables, either through an FPC connected to the LCD's FPC and controlled through a port, or a separate cable that controls it through a connector.
LED life reached the standard of 30K hours Min. 50K, 70K, 100K hours are all achievable.

4 Inch 720x720 Wide Temperature Display Touch screen,standard type and customization
4 Inch 720x720 Wide Temperature Display Driver board/adapter board, standard type and design customization
DEMO board, H-DMl board, other customized board, etc.
4 Inch 720x720 Wide Temperature Display Embedded Integrated Solution
UART display solution, H-DMl display solution, Window display solution, Android display solution, Raspberry Pi solution, portable secondary screen solution, etc.

Customization & Manufacturing

We support customize and manufacturing based on your requirements,look forward to your contact if you need mass production or design, quick technical support and competitive price will be provided.

Quality is constant

Diligence, processes, and attention to detail are at the core of our business. Our operational framework is built on the 4Cs:
four pillars of quality that underpin our role as the world’s leading display panel designer and manufacturer.
