5.4 inch 1152x1920 TFT Color Display IPS Highlight High Color Gamut MIPI LCD LS054B3SX01

5.4 inch 1152x1920 TFT Color Display IPS Highlight High Color Gamut MIPI LCD LS054B3SX01

$24.56 USD
$28.00 USD $24.56 USD
Sale Sold out
For product datasheet and technical support, welcome to contact us at support@youritech.com;
Regarding project mass production needs, please share the FORECAST to info@youritech.com for receiving volume discount pricing.
View full details

Product Introduction


5.4 inch 1152x1920 TFT Color Display IPS Highlight High Color Gamut MIPI LCD LS054B3SX01

Product size
5.4-inch
Type
LCM, CG-Silicon
Pixel Format
1152(RGB)×1920 418PPI
Configuration
RGB Vertical Stripe
Active Area
69.984 × 116.64 (H×V)

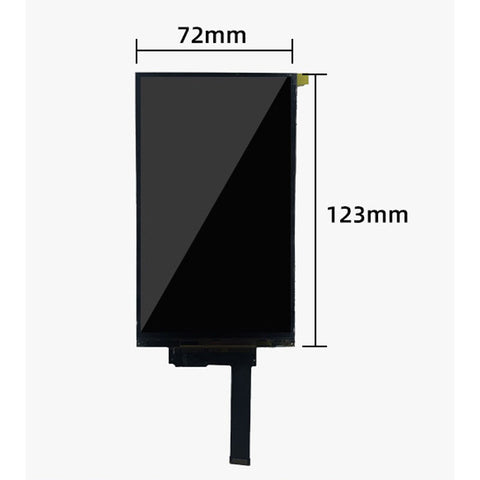

Outline Dim.
72 × 123 × 1.4 (H×V×D)
Luminance
600 cd/m² (Typ.)
Contrast Ratio
1000 : 1 (Typ.) (TM)
View Direction
Symmetry
Response Time
35 (Max.)(Tr+Td) ms
Viewing Angle
80/80/80/80 (Typ.)(CR≥10)
Operating Mode
New Mode2, Normally Black, Transmissive
Support Color
16.7M 84% NTSC
Light Source
8S2P WLED , No Driver
Weight
18.5g (Typ.)
Designed For
Mobile Phone
Frequency
60Hz
Touch Panel
Without
Interface Type
MIPI (4 data lanes) , Connector 32 pins
Power Supply
1.8/5.7/9.55/-5.7/-6.95V (Typ.)(IOVCC/VSP/VGH/VSN/VGL)
Environment
Storage Temp.: -30 ~ 70 °C Operating Temp.: -20 ~ 60 °C

Customization & Manufacturing

We support customize and manufacturing based on your requirements,look forward to your contact if you need mass production or design, quick technical support and competitive price will be provided.
