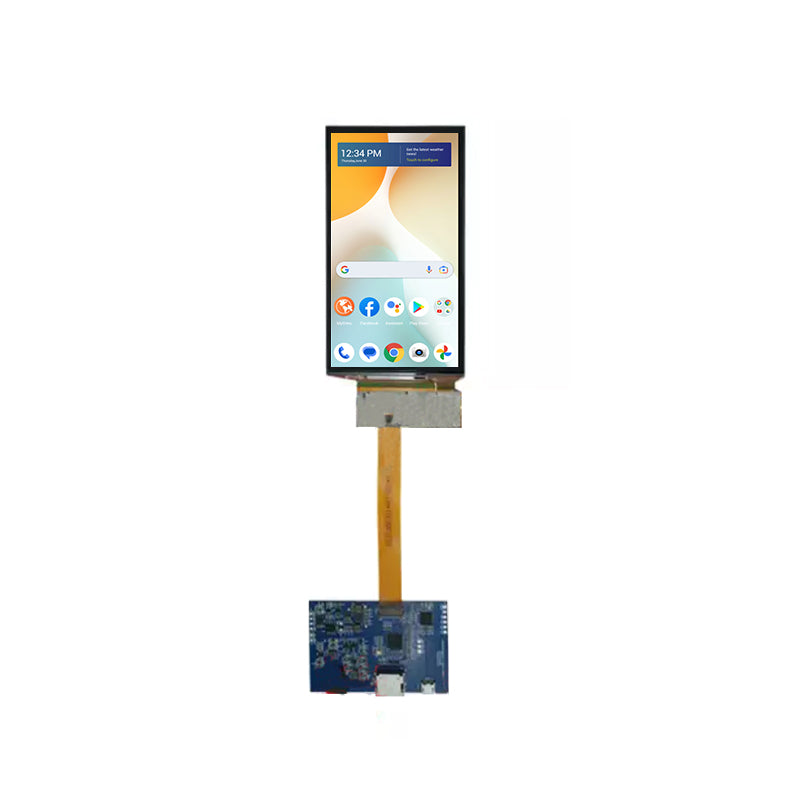

5.5 Inch AMOLED Display 1080×1920 HDMI Full Viewing Angle OLED Display Panel

5.5 Inch AMOLED Display 1080×1920 HDMI Full Viewing Angle OLED Display Panel

$82.21 USD
$82.21 USD
Sale Sold out
ET055AM01-KT-HDMI
For product datasheet and technical support, welcome to contact us at support@youritech.com;
Regarding project mass production needs, please share the FORECAST to info@youritech.com for receiving volume discount pricing.
View full details

Product Introduction


5.5 Inch AMOLED Display Overview
ET055AM01-KT-HDMI is a 5.5-inch AMOLED display featuring a 1080×1920 resolution and an HDMI interface for convenient integration with compatible host systems. It supports 16.7 million colors and a 97% color gamut, delivering clear images and vivid color reproduction. With a brightness of 500 cd/m², a 5000:1 contrast ratio, and full viewing angles, this display provides consistent visual performance across different viewing positions. The module features an integrated capacitive touchscreen with an FT3519 touch controller and a Micro USB touch interface, enabling responsive touch operation. It uses the CH13721C driver IC and measures 70.36 × 127.34 × 0.83 mm, with an active display area of 68.26 × 121.34 mm. Operating at 12 V, the display supports an operating temperature range of -20°C to +60°C and a storage temperature range of -30°C to +70°C, with a rated service life of 30,000 hours. This 5.5-inch touchscreen AMOLED display is suitable for embedded systems, industrial control equipment, smart terminals, and other applications requiring high-resolution visuals and HDMI connectivity.

Model ET055AM01-KT-HDMI 5.5 Inch AMOLED Display 1080×1920 HDMI Full Viewing Angle OLED Display Panel
Size 5.5" Touch Yes
Touch Type Capacitive touch Display Mode AMOLED
Display Colors 16.7M Color Gamut 97%
Response Time -- Resolution 1080x1920
Dot Pitch 0.0948(H)*0.0632(V) Viewing Angle All viewing angle
Driver IC CH13721C Outline Dimension 70.36*127.34*0.83mm
Active Area -- Dot Area 68.26*121.34mm
Brightness 500cd/m² Contrast Ratio 5000:1
Interface HDMI Pin Count --
Pin Pitch -- Touch Interface Micro USB
Touch IC FT3519 Connection Type Plug-in type
Operating Voltage 12V Operating Life 30000h
Operating Temperature -20°C~+60°C Storage Temperature -30°C~+70°C

AMOLED Displays Technology

YOURITECH. Comprehensive Manufacturing of  Touchscreen, Driver Board Options

Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.

Youritech Production and Manufacturing



Customization & Manufacturing

We support customize and manufacturing based on your requirements,look forward to your contact if you need mass production or design, quick technical support and competitive price will be provided.

Quality is constant

Diligence, processes, and attention to detail are at the core of our business. Our operational framework is built on the 4Cs:
four pillars of quality that underpin our role as the world’s leading display panel designer and manufacturer.

SHIPPING & DELIVERY FAQS

1. Where is my product ship from?
All of products are shipped from China/HK.

2. How long will it take for my order to arrive?
It depends on the shipping method you choose, if you have requirements for the delivery time, please choose the fastest delivery shipping method (DHL).

3. When my order will be shipped out?
Normally, displays take 2–5 days and the HDMI/Demo board takes 1–2 weeks because it needs to be fully tested and configured. If stock is sufficient, we will ship immediately.

4. What`re the function of HDMI board and demo board?
The HDMI board converts HDMI input into the panel's native signal (MIPI/eDP/LVDS), provides power rails and backlight control, it typically doesn`t have touch functionality unless the SKU indicates.
The demo board is a development tool for quickly lighting up and evaluating a display.
