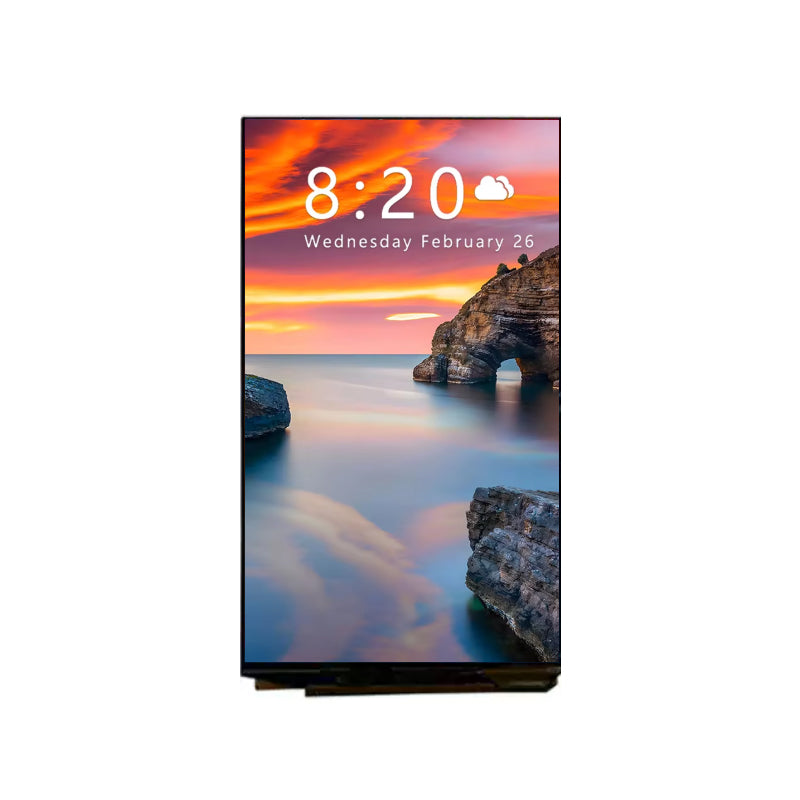

5.5 Inch AMOLED Display 1080x1920 HDMI Interface On Cell Touch screen with capacitive touch screen display

5.5 Inch AMOLED Display 1080x1920 HDMI Interface On Cell Touch screen with capacitive touch screen display

$68.74 USD
$68.74 USD
Sale Sold out
ET055AM02-KT-HDMI
For product datasheet and technical support, welcome to contact us at support@youritech.com;
Regarding project mass production needs, please share the FORECAST to info@youritech.com for receiving volume discount pricing.
View full details

Product Introduction


5.5 Inch AMOLED Display Overview

ET055AM02-KT-HDMI is a 5.5-inch AMOLED display module featuring a resolution of 1080 × 1920 pixels in a portrait orientation, supporting 16.7M colors. In terms of mechanical specifications, it features an active area of 67.82(W) × 120.58(H) mm and an outline dimension of 69.74(W) × 126.60(H) × 10.80(D) mm, with a pixel pitch of 0.0314(H) × 0.0628(V) mm.ET055AM02-KT-HDMI provides a typical brightness of 350 cd/m² and a contrast ratio of 60000:1, delivering vivid colors and deep blacks. It supports a full viewing angle for consistent image quality from different viewing directions and features a typical response time of 2 ms. With a 105% color gamut and 16.7M colors, this display delivers rich and vibrant color reproduction. As a self-emissive display technology, AMOLED enables each pixel to emit its own light. The module utilizes the RM67199 driver IC and an HDMI interface for display signal input. It also features capacitive touch functionality, using a GT1151Q touch controller and a Micro USB touch interface. With a plug-in connection, a DC 12V power supply, and a typical service life of 30,000 hours, ET055AM02-KT-HDMI is designed for reliable integration. It operates at temperatures from -20°C to +70°C and can be stored at temperatures from -30°C to +80°C, making it suitable for industrial control systems, smart devices, portable equipment, and other applications requiring a high-resolution AMOLED display with capacitive touch functionality.
Product Specifications – ET055AM02-KT-HDMI
Parameter Specification Parameter Specification
Model Number ET055AM02-KT-HDMI Display Size 5.5 inch
Display Technology AMOLED Resolution 1080 × 1920
Touchscreen Yes Touch Type Capacitive Touch
Display Colors 16.7M Color Gamut 105%
Response Time 2 ms Pixel Pitch 0.0314(H) × 0.0628(V) mm
Viewing Angle Full Viewing Angle Brightness 350 cd/m²
Contrast Ratio 60000:1 Driver IC RM67199
Display Interface HDMI Touch Interface Micro USB
Touch Controller IC GT1151Q Connector Type Plug-in
Operating Voltage DC 12 V Service Life 30,000 hours
Outline Dimensions 69.74 × 126.60 × 10.80 mm Active Area 67.82 × 120.58 mm
Operating Temperature -20°C to +70°C Storage Temperature -30°C to +80°C



AMOLED Displays Technology

YOURITECH. Comprehensive Manufacturing of  Touchscreen, Driver Board Options

Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.

Youritech Production and Manufacturing



Customization & Manufacturing

We support customize and manufacturing based on your requirements,look forward to your contact if you need mass production or design, quick technical support and competitive price will be provided.

Quality is constant

Diligence, processes, and attention to detail are at the core of our business. Our operational framework is built on the 4Cs:
four pillars of quality that underpin our role as the world’s leading display panel designer and manufacturer.

SHIPPING & DELIVERY FAQS

1. Where is my product ship from?
All of products are shipped from China/HK.

2. How long will it take for my order to arrive?
It depends on the shipping method you choose, if you have requirements for the delivery time, please choose the fastest delivery shipping method (DHL).

3. When my order will be shipped out?
Normally, displays take 2–5 days and the HDMI/Demo board takes 1–2 weeks because it needs to be fully tested and configured. If stock is sufficient, we will ship immediately.

4. What`re the function of HDMI board and demo board?
The HDMI board converts HDMI input into the panel's native signal (MIPI/eDP/LVDS), provides power rails and backlight control, it typically doesn`t have touch functionality unless the SKU indicates.
The demo board is a development tool for quickly lighting up and evaluating a display.
