5.5 Inch TFT LCD Display 1080x1920 IPS MIPI 700nits High Brightness LCD Panel With HDMI Board

Product Introduction

5.5 Inch 1080x1920 Display Overview

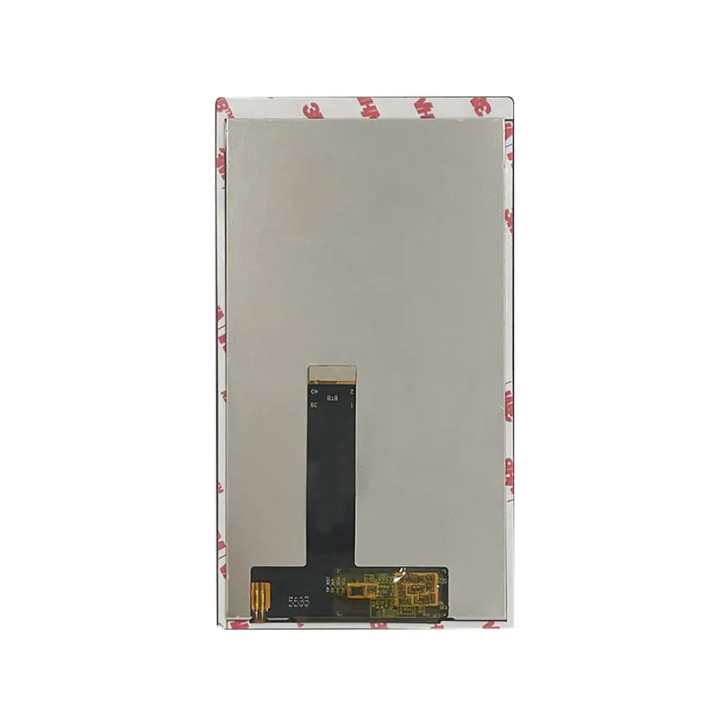

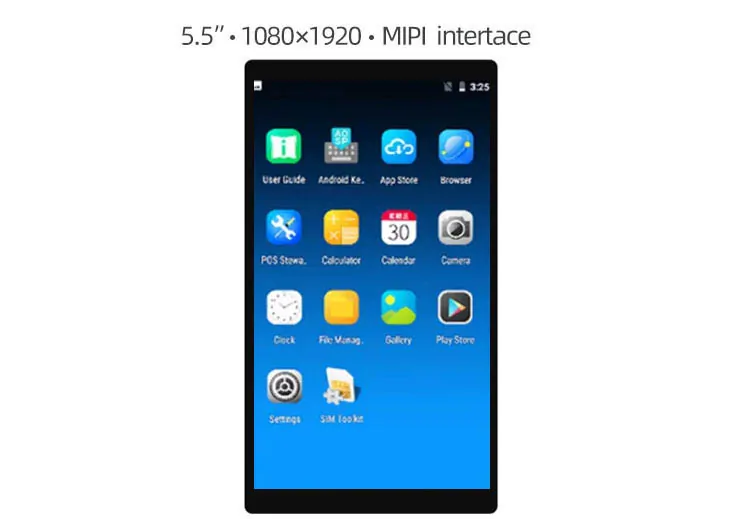

The ET055WU10-TT is a 5.5-inch TFT LCD display designed for high brightness and excellent color accuracy. It features a resolution of 1080x1920, offering sharp and detailed visuals. With an active area of 68.04mm x 120.96mm and compact outline dimensions of 72.52mm x 132.9mm, it fits well in a variety of devices. The display operates in transmissive mode and utilizes an IPS panel, providing vibrant colors and wide viewing angles of 80° in all directions (L/R/U/D). With a typical brightness of 700 cd/m², it ensures clear visibility even in well-lit environments. The ET055WU10-TT uses a MIPI interface for high-speed data transfer and smooth performance. It also includes touch functionality for an interactive user experience. Designed to operate in a temperature range of -20°C to 60°C for operation and -30°C to 70°C for storage, the display is suitable for diverse environments.

5.5 Inch 1080x1920 Display Custom LCD Solutions for Diverse Applications

Brightness from 0-3000 for perfect display effect achievement.
100% NTSC makes the vividness of the picture better and the color transition in the picture more natural.
Color Temperature is positive white at around 5500K, warm white (yellowish) at 3500K and also cool white (cold) at 6500K.
Driver circuit with sufficient voltage and current values to meet output requirements and reduce the secondary development cycle.
Heat dissipation for high-brightness products to advance design of reasonable heat dissipation structure
Power consumption, we increase the brightness without increasing the power consumption.
Cables, Backlighting also requires cables, either through an FPC connected to the LCD's FPC and controlled through a port, or a separate cable that controls it through a connector.
LED life reached the standard of 30K hours Min. 50K, 70K, 100K hours are all achievable.

5.5 Inch 1080x1920 Display Touch screen,standard type and customization

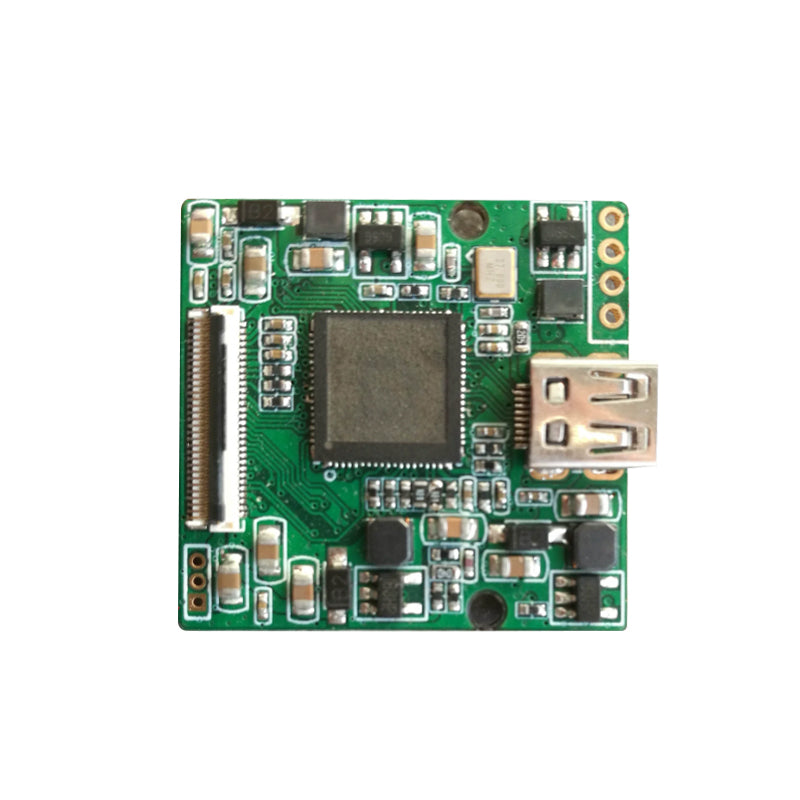

5.5 Inch 1080x1920 Display Driver board/adapter board, standard type and design customization
DEMO board, H-DMl board, other customized board, etc.

5.5 Inch 1080x1920 Display Embedded Integrated Solution
UART display solution, H-DMl display solution, Window display solution, Android display solution, Raspberry Pi solution, portable secondary screen solution, etc.
