5 Inch AMOLED Display 720×1280 HD LTPS On-Cell Touchscreen OLED Display Panel
5 Inch AMOLED Display 720×1280 HD LTPS On-Cell Touchscreen OLED Display Panel
Couldn't load pickup availability
Regarding project mass production needs, please share the FORECAST to info@youritech.com for receiving volume discount pricing.
Product Introduction
5 Inch AMOLED Display Overview

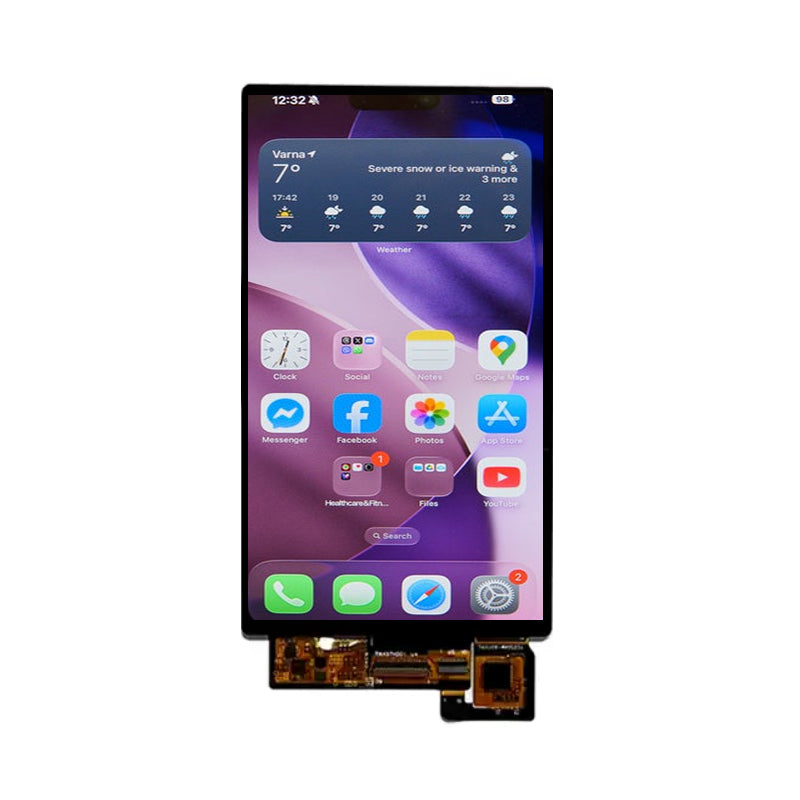

ET050AM02-KT is a 5-inch AMOLED display featuring a 720×1280 HD resolution and an integrated On-cell capacitive touchscreen. Built with LTPS technology, it supports 16.7 million colors and a 105% color gamut, delivering vivid colors and detailed images. With a brightness of 500 cd/m², a 60000:1 contrast ratio, a fast 2 ms response time, and full viewing angles, this display provides excellent visual clarity and responsive touch performance. It uses the RM67295 display driver IC and CHSC5448 touch controller, with a MIPI interface and a 39-pin connector at a 0.3 mm pitch. The module measures 70.52 × 123.12 × 1.67 mm, with a viewing area of 62.48 × 110.62 mm and an active display area of 61.88 × 110.02 mm. Operating at 3.3 V, it supports operating temperatures from -20°C to +70°C and storage temperatures from -30°C to +80°C, with a rated service life of 30,000 hours. This 5-inch touchscreen AMOLED display is suitable for smart terminals, portable electronic devices, industrial control equipment, and other embedded applications requiring high-resolution visuals and reliable touch operation.
AMOLED Displays Technology
YOURITECH. Comprehensive Manufacturing of Touchscreen, Driver Board Options
Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.
Youritech Production and Manufacturing
Customization & Manufacturing
Quality is constant
four pillars of quality that underpin our role as the world’s leading display panel designer and manufacturer.
SHIPPING & DELIVERY FAQS
1. Where is my product ship from?
All of products are shipped from China/HK.
2. How long will it take for my order to arrive?
It depends on the shipping method you choose, if you have requirements for the delivery time, please choose the fastest delivery shipping method (DHL).
3. When my order will be shipped out?
Normally, displays take 2–5 days and the HDMI/Demo board takes 1–2 weeks because it needs to be fully tested and configured. If stock is sufficient, we will ship immediately.
4. What`re the function of HDMI board and demo board?

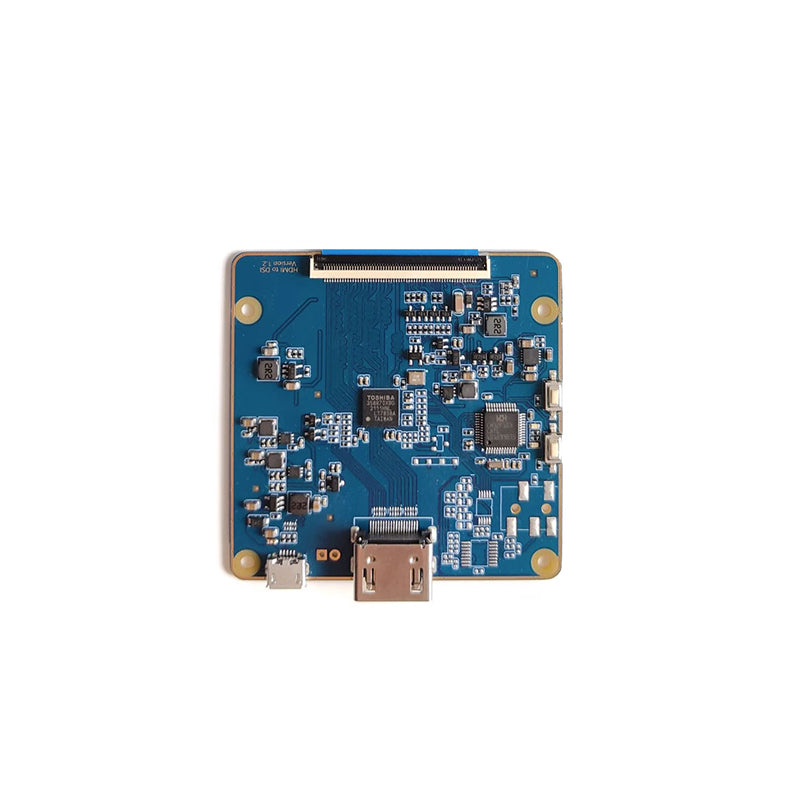

The HDMI board converts HDMI input into the panel's native signal (MIPI/eDP/LVDS), provides power rails and backlight control, it typically doesn`t have touch functionality unless the SKU indicates.
The demo board is a development tool for quickly lighting up and evaluating a display.
