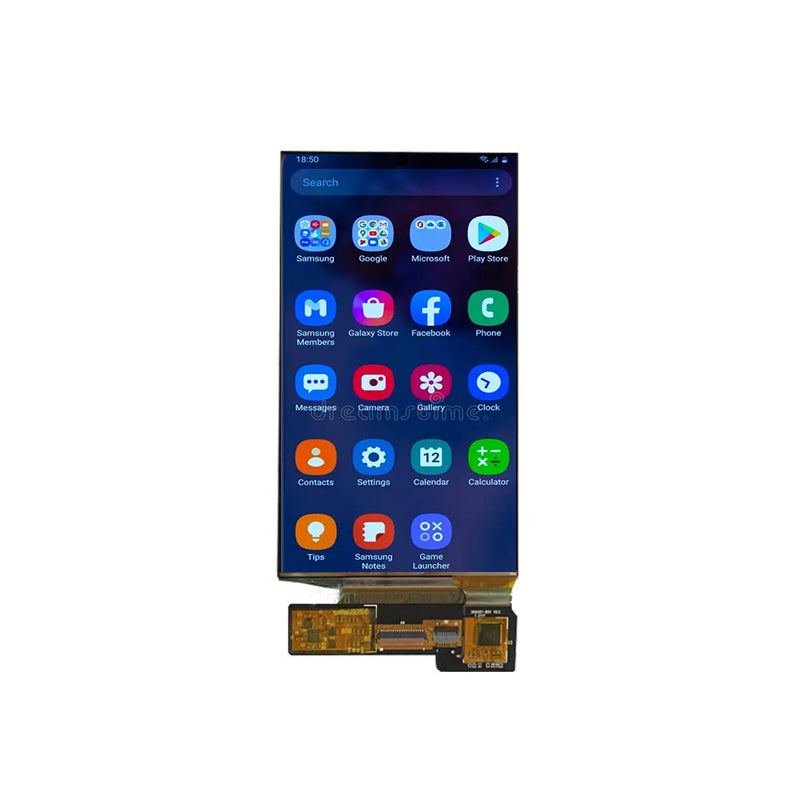

5 Inch AMOLED Display 720×1280 MIPI Interface HD High Brightness Full Lamination Color Screen

5 Inch AMOLED Display 720×1280 MIPI Interface HD High Brightness Full Lamination Color Screen

$40.03 USD
$40.03 USD
Sale Sold out
ET050AM01-H
For product datasheet and technical support, welcome to contact us at support@youritech.com;
Regarding project mass production needs, please share the FORECAST to info@youritech.com for receiving volume discount pricing.
View full details

Product Introduction


5 Inch AMOLED Display Overview

ET050AM01-H supports a resolution of 720(RGB)×1280, featuring a 5.0-inch AMOLED display with a high pixel density of 295 PPI for sharp and detailed image reproduction. In terms of mechanical specifications, it features an active area of 61.88(H)×110.02(V) mm and an overall module dimension of 64.12(H)×116.72(V)×0.84(T) mm, with a pixel pitch of 0.0859 mm. ET050AM01-H provides a typical brightness of 500 cd/m² and a contrast ratio of 20000:1, delivering vivid colors, deep blacks, and excellent image clarity. With support for 16.7 million colors, a 100% color gamut, and an all-direction viewing angle, this AMOLED display offers rich color reproduction and consistent visibility from multiple viewing positions. The module adopts a snap-fit connector and utilizes a MIPI interface for signal transmission, driven by the RM67295 driver IC. It operates with a supply voltage of 2.8–3.3 V and supports an operating temperature range of -20°C to 70°C and a storage temperature range of -30°C to 80°C. With its high-definition resolution, slim profile, and vibrant AMOLED performance, ET050AM01-H is suitable for smart devices, industrial equipment, portable electronics, and embedded display applications.


ET050AM01-H AMOLED Display Specifications

Parameter Specification Parameter Specification
Part No. ET050AM01-H Size 5.0 Inch
Display Type AMOLED Resolution 720 × 1280
Active Area 61.88(H) × 110.02(V) mm Module Dimensions 64.12(H) × 116.72(V) × 0.84(T) mm
Pixel Pitch 0.0859 mm Pixel Density 295 PPI
Display Colors 16.7M Color Gamut 100%
Viewing Angle All Directions Contrast Ratio 20000:1
Brightness 500 nits Panel Interface MIPI
Connector Type Snap-fit Connector Driver IC RM67295
Supply Voltage 2.8–3.3 V Operating Temperature -20°C to 70°C
Storage Temperature -30°C to 80°C
