5 Inch AMOLED Display 720x1280 HDMI On Cell With Capacitive touch Screen Display

Product Introduction

5 Inch AMOLED Display Overview

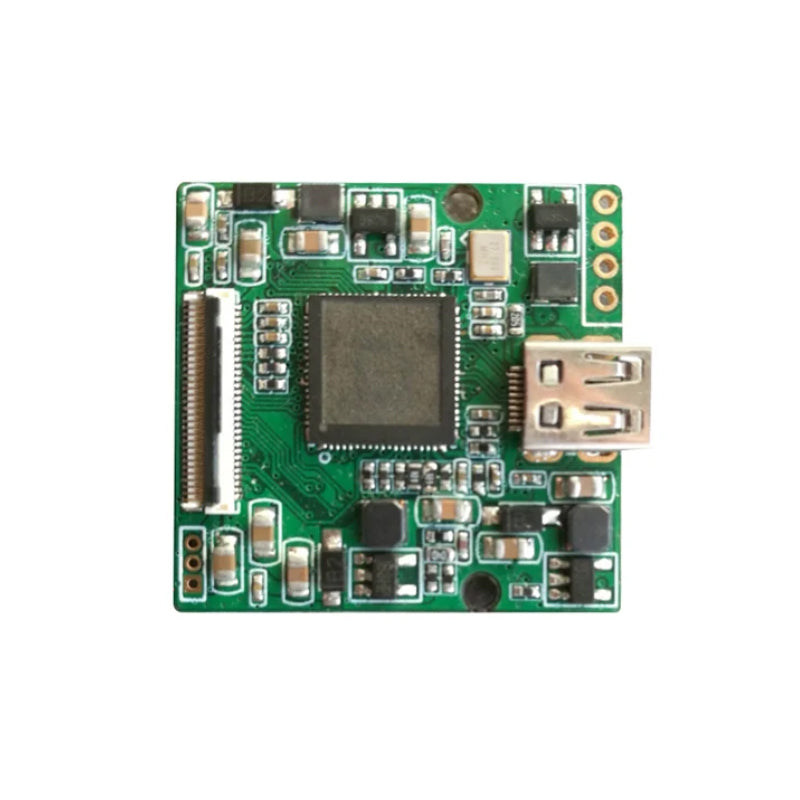

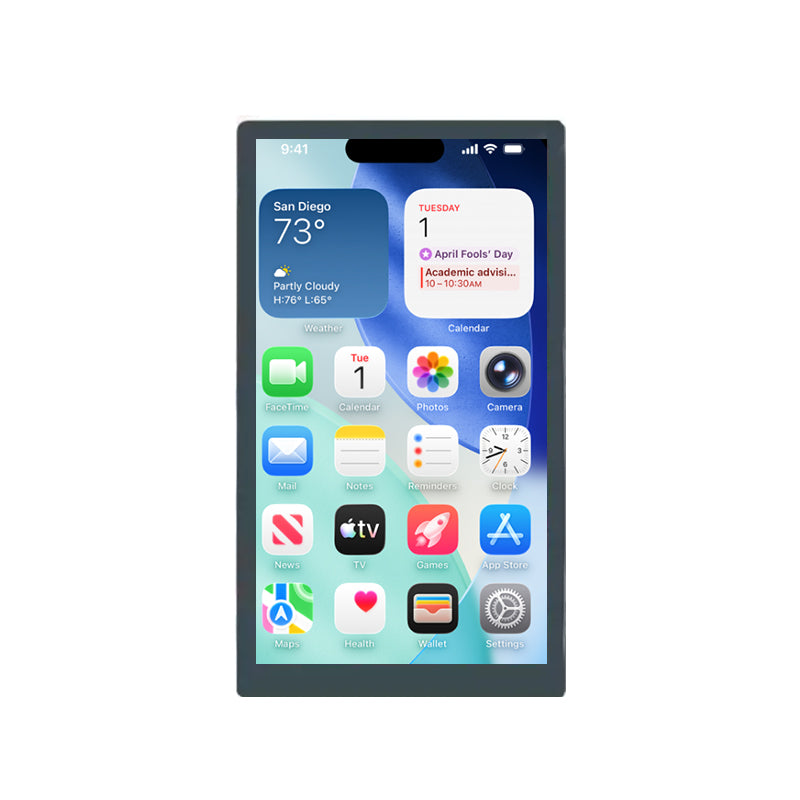

ET050AM02-KT-HDMI is a 5-inch AMOLED display module featuring a resolution of 720 × 1280 pixels, with a portrait-oriented display format and 16.7M colors. In terms of mechanical specifications, it features an active area of 61.88(W) × 110.02(H) mm, a visible area of 62.48(W) × 110.62(H) mm, and an outline dimension of 70.52(W) × 123.12(H) × 12.37(D) mm. Its pixel pitch is 0.02865(H) × 0.08595(V) mm.ET050AM02-KT-HDMI provides a typical brightness of 300 cd/m² and a contrast ratio of 60000:1, delivering vivid colors and deep blacks. It supports a full viewing angle for consistent image quality from different viewing directions and features a typical response time of 2 ms. With a 105% color gamut, this AMOLED display delivers rich and vibrant color performance. As a self-emissive display technology, AMOLED enables each pixel to emit its own light. The module utilizes an HDMI interface for video signal input and a Micro USB interface for capacitive touch control. It features a plug-in connection, operates on a DC 12V power supply, and has a typical service life of 30,000 hours. With an operating temperature range of -20°C to +70°C and a storage temperature range of -30°C to +80°C, ET050AM02-KT-HDMI is suitable for industrial control systems, smart devices, portable equipment, and other applications requiring a compact, high-resolution AMOLED display with touch functionality.
