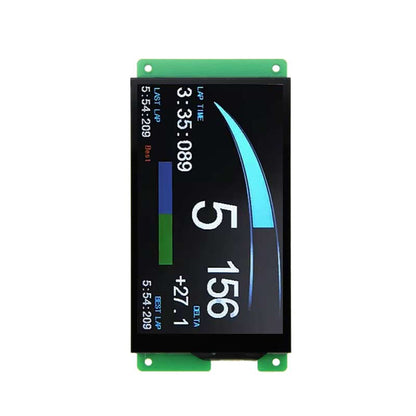

5 Inch HD IPS Serial Scree Low Power Consumption 480x854 Script Configuration Serial TFT Display With Capacitive Touch

5 Inch Serial Port Screen Overview
5 Inch HD IPS Serial Scree 480x854 Low Power Consumption Script Configuration Serial TFT Display With Capacitive Touch.
Product Model
ET050DN4885-DCC(Capacitive touch)
ET050DN4885-DCN(No touch)

5 Inch Serial Port Screen Product Parameters
Core processor: 400M SOC processor
Operating system: No operating system, it can run after power on, startup time: about 1 second
Protocol type: Default Dacai configuration instruction set, the host computer can be configured to run MODBUS RTU and XGUS protocols.
Scripting language: Version 5.3 LUA script, the screen can run logic, protocols and algorithm functions written by the user.
Size: 5.0 inches
Resolution:480x854
Installation direction: supports 0, 90, 180 and 270 degree rotation installation display
Storage space: 128Mbit
Font library: Built-in vector fonts, edge anti-aliasing processing, supports any size ASCII, GBK, GB2312, UNICODE (global language) font library, and can also customize any computer font display
Image storage: Supports JPEG, PNG (semi-transparent/fully transparent) compression, and supports image storage of any size. A total of about 185 full-screen pictures can be stored (calculated based on size of 80KB/picture, BMP format is not recommended). Depending on the image compression ratio, this value will fluctuate up and down.
Color: 16.7M colors, 24-bit RGB
Voltage:5-28V
Power consumption: Sleep: 0.06W
Darkest backlight: 0.4W
Brightest backlight: 1.5W
Communication method: RS232/TTL (factory default 232 level, short J5 for TTL level).
Communication baud rate: 1200~921600bps, typical baud rate: 115200bps.
Communication connector specifications: Default HY2.0-8P, optional FPC1.0-10P.
Picture local download: SD card, serial port.
Firmware local/remote upgrade: Insert the SD card for local upgrade/support user motherboard remote serial port upgrade screen firmware.
Remote image upgrade: Support users to remotely use their own motherboard serial port to upgrade screen-related image projects, fonts, configuration files, etc.
Real-time clock: supports clock, timer, countdown and other functions
Effective display area of the screen
Capacitive screen: 109.3mmx61.6mm, non-touch: 109.7mmx61.6mm
Product size:138.3mmx69.9mmx12.0mm
Supporting host computer software: VisualTFT®

Reliability parameters
Operating Temperature: 20~+70°C
Storage Temperature: 30~+80°C
ESD testing
Test standard: IEC 61000-4-2 Contact: ±3KV; Air: ±7KV
EFT testing
Test standard: IEC 61000-4-4 National Standard 4 (voltage: ±4KV; frequency: 100/5KHZ; time: 120S), no restart, no display abnormality, no touch abnormality and other phenomena, the test function is normal.
Radiation testing
Test standard: EN55022 ClassB margin -6dB Test environment: three-meter dark wave room.

Core competitiveness of products
Learning cycle: 30 minutes to familiarize yourself with the development environment, 3 days to complete human-computer interaction design.
Program debugging: The host computer integrates a "virtual serial port screen," eliminating the need for hardware connection and allowing direct Keil debugging. IDE-bound debugging
Startup Time: Runs instantly upon power-up, eliminating system loading time
Configuration Controls: Features a variety of configuration controls, including multi-language controls, buttons, text, drop-down menus, progress bars, sliders, meters, animations, QR codes, curves, data loggers, circular progress bars, and sub-screen slide controls.
System Keyboard: Built-in virtual numeric and character keyboards, supporting Chinese and English input methods, and customizable keyboards.
Data Logging: Supports exporting data logger content to an SD card.
Layer Technology: Multiple display layers are built into the system for faster switching.
Multilingual Capability: Factory-preset up to 15 global languages, enabling one-click switching without the need for multiple UIs.
Logical Operation Processing: The host computer has an embedded LUA script parser, allowing users to customize complex logic relationships and protocols within the screen, meeting 99.9% of customer product requirements.
Remote Upgrade: Supports remote serial port upgrades of display firmware, project files, specified images, configuration files, and fonts.
Lifecycle: Utilizes a traditional, leading-edge processor, ensuring long-term supply.

5 Inch Serial Port Screen
Display Type: IPS LCD
Backlight: LED
Brightness (cd/m²): 400
Backlight Lifespan (hours): >20,000
Contrast Ratio: 800:1
Viewing Angles (L/R/T): 85/85/85/85

Touch panel (resistance and capacitance optional)
Touch type: capacitive touch screen (IC: GT911)
Capacitive screen touch mode: single point, sliding touch
Capacitive screen transmittance: more than 90%
Capacitive screen touch times: The number of capacitive screen touch times is theoretically unlimited, and the touch life is related to the working environment (dust, humidity).
Capacitive cover customization: "Glass cover + capacitive touch" integrated fitting service can be customized according to user drawing size.

Customized services
Customization Fees: For orders of 1,000 units, some customization fees may be waived.
Hardware Circuits: Customizable PCB size, circuit thickness, custom circuitry, military-grade temperature display, and more.
Software Customization: Customizable instructions or controls based on user needs, reducing development effort.
Design Services: Graphic design and product structure design services available.
Other: Customizable on demand to meet all user needs.
