5 Inch Square Display 720×720 30-Pin MIPI IPS LCD Screen with Optional Touch & HDMI Driver Board

5 Inch Square Display 720×720 30-Pin MIPI IPS LCD Screen with Optional Touch & HDMI Driver Board

$23.64 USD
$23.64 USD
Sale Sold out
More 5 Inch Square Display Soulution
For product datasheet and technical support, welcome to contact us at support@youritech.com;
Regarding project mass production needs, please share the FORECAST to info@youritech.com for receiving volume discount pricing.
View full details

Product Introduction


5 Inch Square Display Overview

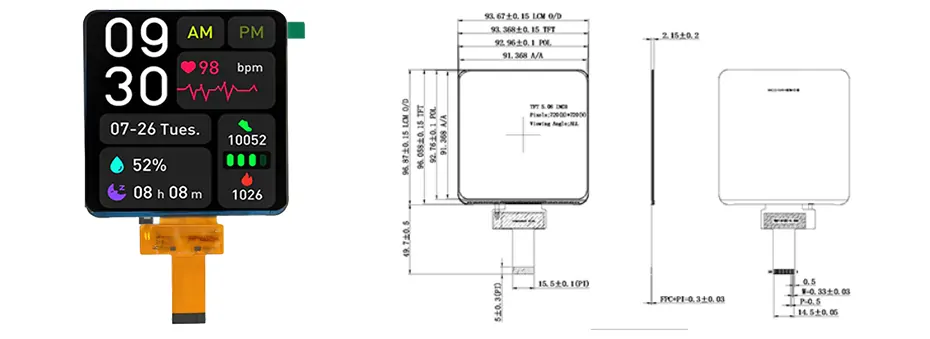

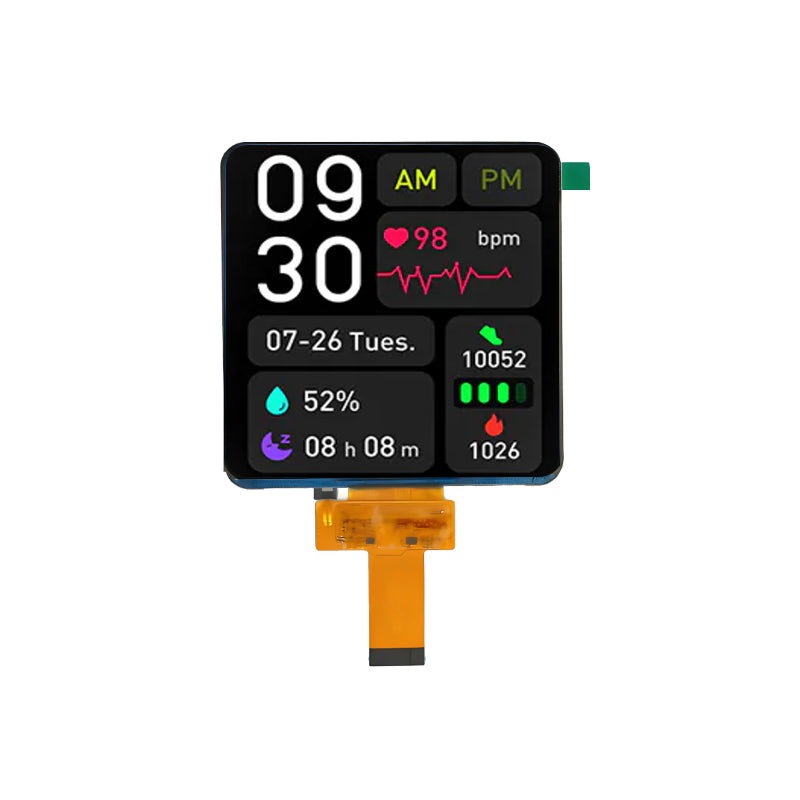

ET050SQ01-GX is a 5-inch square IPS LCD display product. ET050SQ01-GX supports a display resolution of 720×720 and features a 30-pin MIPI panel interface. It operates in Normally Black display mode and has an active area of 91.368(W)×91.368(H) mm and an outline size of 93.67(W)×96.87(H)×2.15(D) mm. The display provides 400 cd/m² display brightness and features IPS technology with wide viewing angles. ET050SQ01-GX does not include a touch function and supports an operating temperature range of -20°C to 70°C and a storage temperature range of -30°C to 80°C. An optional HDMI driver board is available for convenient system integration.
5 Inch Square Display 720×720 30-Pin MIPI IPS LCD Screen with Optional Touch & HDMI Driver Board

5 Inch Square Display  Specification

Part No. ET050SQ01-GX Size 5 inch
Resolution 720 × 720 Display Mode Normally Black
Panel Interface 30-Pin MIPI Touch Panel No
Outline Dimension 93.67 × 96.87 × 2.15 mm Active Area 91.368 × 91.368 mm
Viewing Angle (L/R/U/D) IPS Full Angle Brightness 400 cd/m²
Operation Temp. -20 ~ 70°C Storage Temp. -30 ~ 80°C

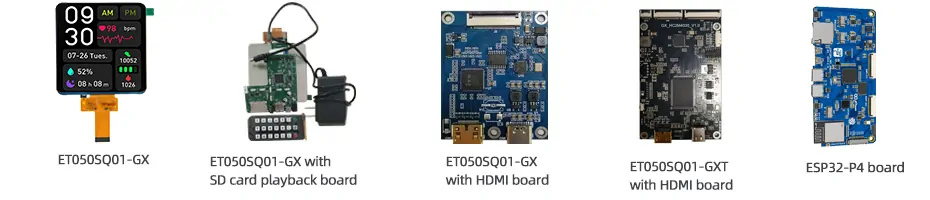

More 5 Inch Square Display Soulution For Reference
ET050SQ01-GX

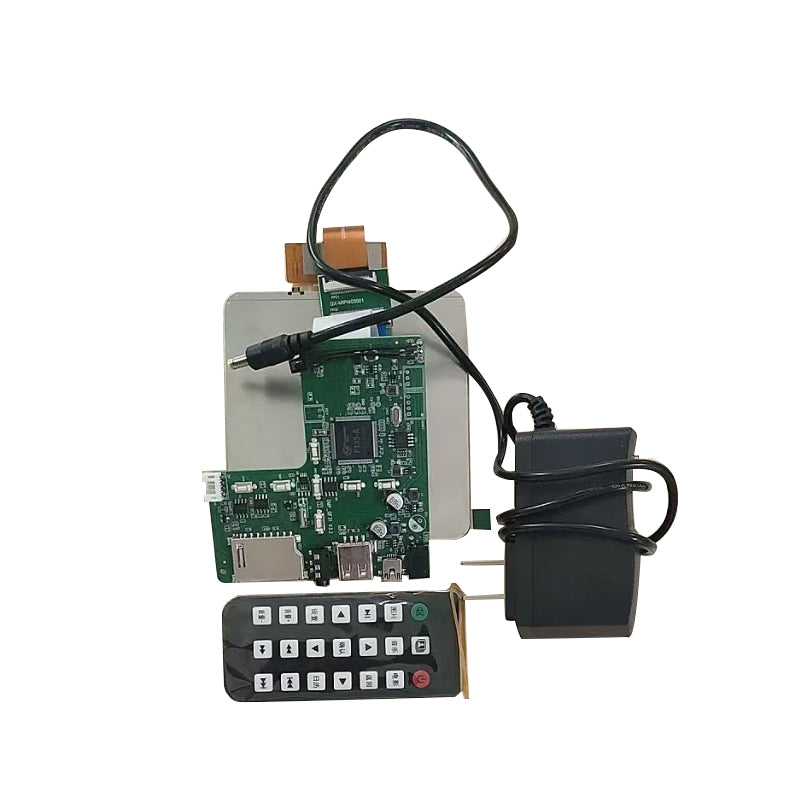

ET050SQ01-GX with SD card playback board

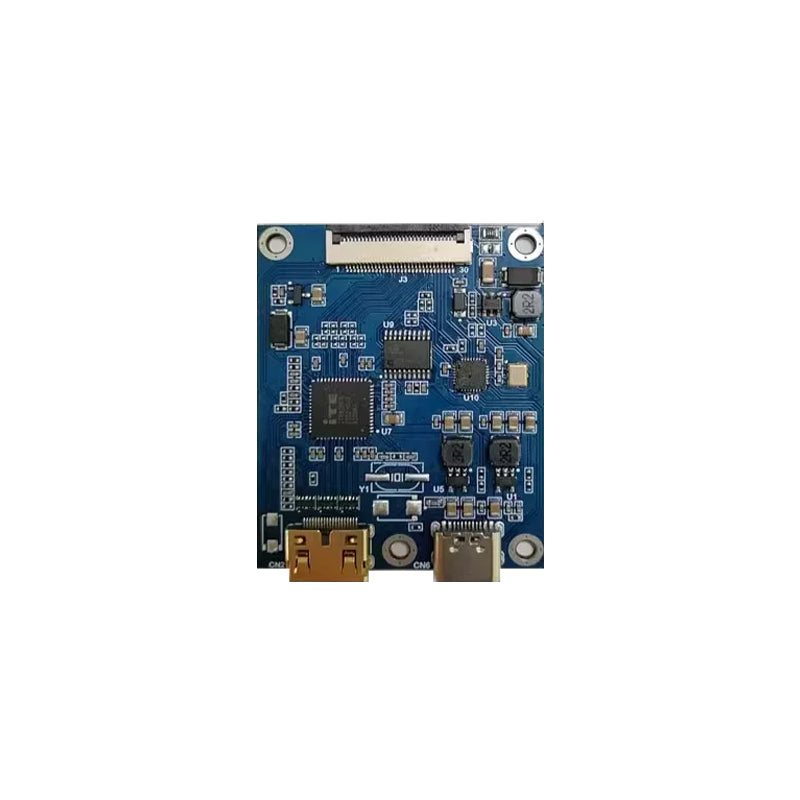

ET050SQ01-GX with HDMI board

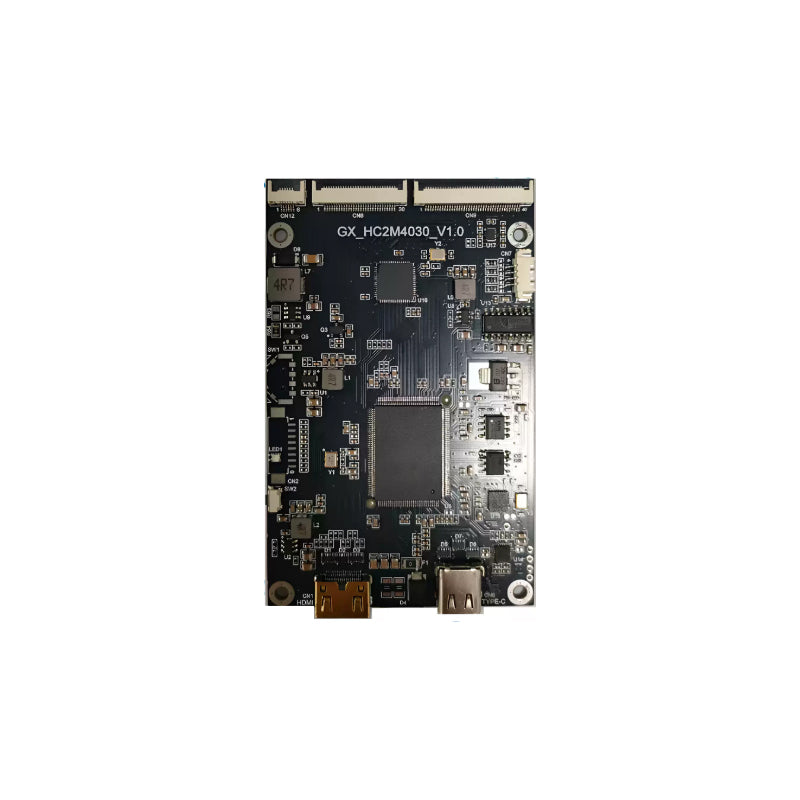

ET050SQ01-GXT with HDMI board (With Touch)

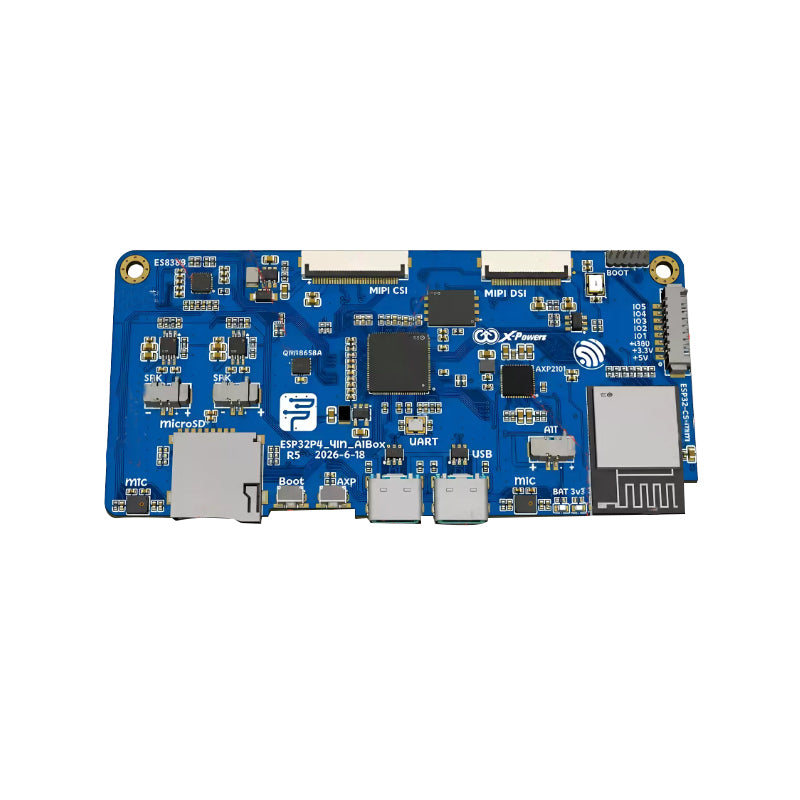

ESP32-P4 board
5 Inch Square Display 720×720 30-Pin MIPI IPS LCD Screen with Optional Touch & HDMI Driver Board

YOURITECH. Comprehensive Manufacturing of  Touchscreen, Driver Board Options

Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.

Production and Manufacturing

Customization & Manufacturing

We support customize and manufacturing based on your requirements,look forward to your contact if you need mass production or design, quick technical support and competitive price will be provided.

Quality is constant

Diligence, processes, and attention to detail are at the core of our business. Our operational framework is built on the 4Cs:
four pillars of quality that underpin our role as the world’s leading display panel designer and manufacturer.
