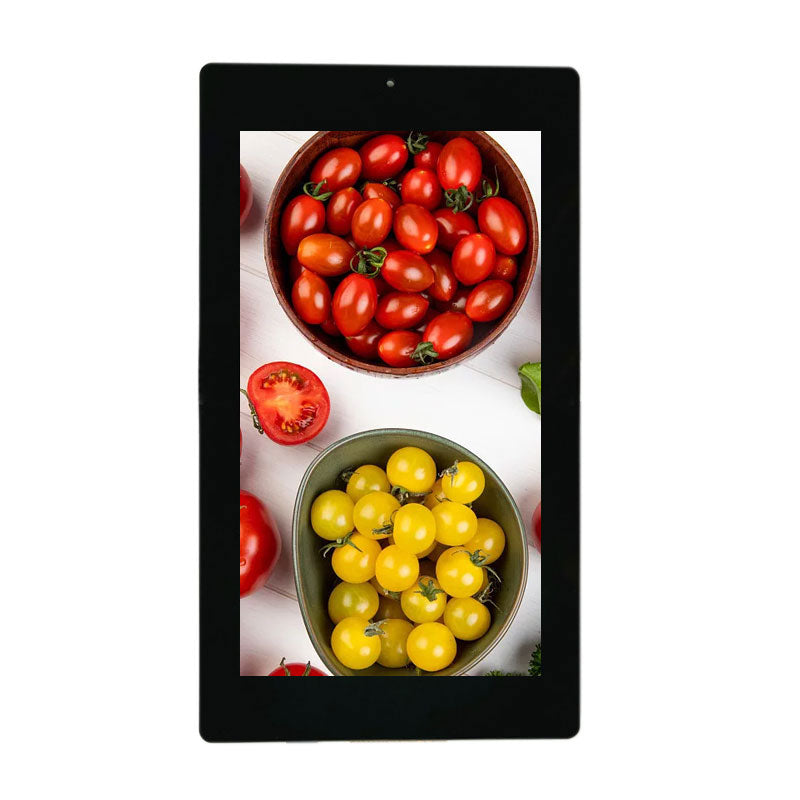

5 Inch TFT LCD Display 480x854 RGB 24 BIT ST7701S IPS LCD Panel

5 Inch TFT LCD Display 480x854 RGB 24 BIT ST7701S IPS LCD Panel

$11.80 USD
$11.80 USD
Sale Sold out
ET050FW02-T
For product datasheet and technical support, welcome to contact us at support@youritech.com;
Regarding project mass production needs, please share the FORECAST to info@youritech.com for receiving volume discount pricing.
View full details

Product Introduction


5 Inch 480x854 Display Overview

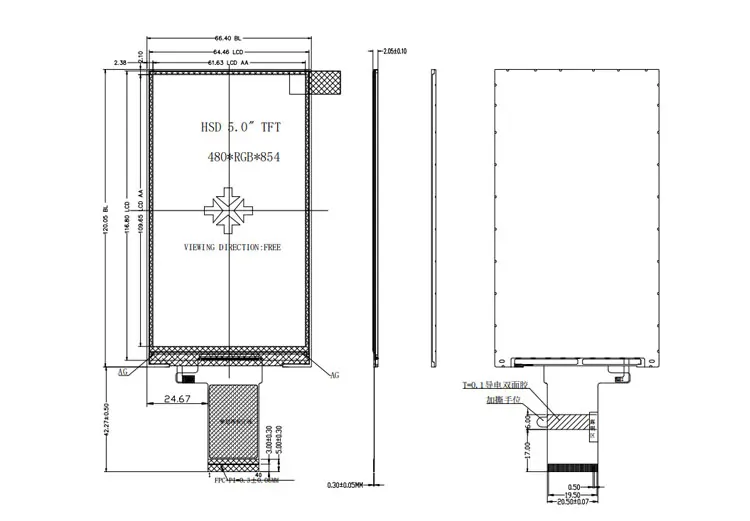

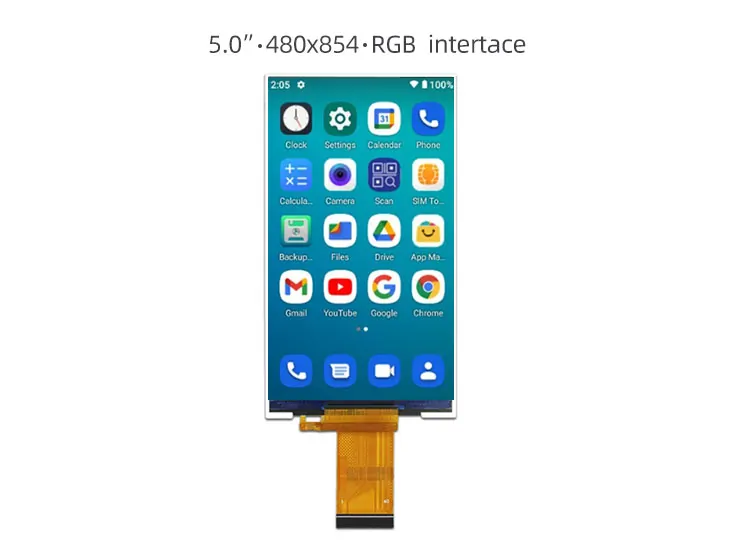

ET050FW02-T is a 5-inch TFT LCD panel with a resolution of 480x854, utilizing the ST7701S controller and featuring an RGB 24-BIT interface. This IPS LCD panel provides a brightness level of 400 cd/m², making it suitable for a variety of display applications. It has an outline dimension of 66.4mm (W) x 120.05mm (H) x 2.05mm (D) and an active display area measuring 61.56mm (W) x 109.53mm (H). Specific details regarding viewing angles and operation/storage temperatures are not provided. Additionally, this panel does not include touch functionality.

5 Inch 480x854 Display Application
For industrial & Advertising & Medical Instruments & Outdoor & Automotive Display.





Medium Size Display List For Reference

Inch Resolution LCM
Driver chip 		LCM Dimensions Display area LCD interface Reference brightness CTP/RTP
5 800x480 ST7262 120.7x75.9x2.95 108x64.8 RGB 24 BIT 600 CTP
480x854 ST7701S 66.4x120.05x2.05 61.56x109.53 RGB 24 BIT 400 /
800x480 ST7262 120.7x75.9x3.0 108x64.8 RGB 24 BIT 1500 /
720x1280 ST7703 65.3x119.28x1.64 62.1x110.4 MIPI 4 LANE 350 CTP
480x854 ST7701S 65.3x119.3x2.05 61.56x109.53 MIPI 2 LANE 350 /
480x854 ST7701S 66.4x120.05x2.05 61.56x109.53 MIPI 2 LANE 1000 /
720x1280 NV3051FL 65.4x119.3x1.59 61.56x109.53 LVDS 400 /
1080x1920 HX8399C 64.76x118.7x1.5 61.88x110.02 MIPI 4 LANE 800 /
720x1280 NV3052C 65.4x119.3x1.99 61.56x109.53 RGB 24 BIT 300 /
5.2 1080x1920 HX8399C 67x122.6x1.7 64.8x115.2 MIPI 4 LANE 1200 CTP
5.5 1080x1920 HX8399C 70.04x128.29x1.72 68.04x120.96 MIPI 4 LANE 1200 CTP
1080x1920 HX8399C 70.04x128.29x1.72 68.04x120.96 MIPI 4 LANE 500 CTP
720x1280 ST7703 70.34x128.1x1.62 67.93x120.7 MIPI 4 LANE 300 /
720x1280 ST7703 70.34x128.1x1.62 67.93x120.7 MIPI 4 LANE 1000 /
6 720x1280 RM68200 76.84x139.46x2.02 77.98x131.52 MIPI 4 LANE 500 /
720x1280 ILI9881C 76.84x139.46x2.02 77.98x131.52 MIPI 4 LANE 450 CTP
1080x1920 FT8275 / 74.52x132.48 MIPI 400 /
7 1024x600 HX8282A11 164.9x100x3.45 154.08x85.92 RGB 24 BIT 800 /
720x1280 ILI9881C 91.44x165.91x2.35 86.94x154.56 MIPI 4 LANE 350 /
1024x600 HX8282A11 164.9x100x3.5 154.08x85.92 LVDS 8 BIT 1300 /
800x1280 ILI9881C 99.65x160.85x2.4 94.2x150.72 MIPI 4 LANE 550 /
600x1024 JD9365DA 94.85x163.14x2.73 89.28x184.8 MIPI 4 LANE 350 CTP
600x1024 JD9365DA 94.85x161.29x2.53 89.28x184.8 MIPI 2 LANE 800 CTP
800x480 HX8264-E 164.9x100x5.5 154.08x85.92 TTL 450 /
800x1280 ILI9881C 99.65x160.85x2.4 94.2x150.72 MIPI 4 LANE 1100 CTP
1024x600 EK79007AD2 164.9x100x3.45 154.08x85.92 MIPI 4 LANE 700 CTP
1024x600 HX8282A11 164.9x100x3.45 154.08x85.92 RGB 1000 CG
1200x1920 HX8279 105.18x163.34x3.65 94.5x151.2 MIPI 4 LANE 1600 /
8 1024x768 / 183x141x5.5 162.5x121.54 LVDS 1000 /
800x1280 JD9365DA 114.66x184.24x2.41 107.64x172.22 MIPI 4 LANE 450 CTP
800x1280 NV3052C 114.66x184.24x2.41 107.64x172.22 LVDS 350 CTP
1024x600 HX8282 192.8x116.9x6.45 176.64x99.36 LVDS 450 /
1024x768 / 174x136x2.5 162.5x121.54 LVDS 300 /
1200x1920 / / 176.64x99.36 MIPI / /
1920x1200 / / 172.22x107.64 LVDS / /
9 1024x600 HX8282A11 210.7x126.5x5 196.61x114.15 LVDS 8 BIT 450 /
9.7 1024x768 / 210.21x164.25x2.85 196.6x147.46 LVDS 1000 /
10.1 800x1280 JD9365DA 143x228.6x2.7 135.36x216.58 MIPI 4 LANE 350 /
800x1280 JD9365DA 143x228.6x2.7 135.36x216.58 MIPI 4 LANE 700 CTP
1024x600 HX8282A11 235x143x4.5 222.72x125.28 LVDS 450 /
1200x1920 HX8279 143x228.6x2.56 135.36x216.58 MIPI 4 LANE 300 /
1280x800 EK79202 229.46x149.1x2.6 216.96x135.6 LVDS 350 /
1280x800 EK79202 229.46x149.1x4.4 216.96x135.6 LVDS 1000 /
800x1280 NV3051F1 143x228.6x2.8 135.36x216.58 LVDS 8 BIT 400 CTP
1920x1200 / 229.25x149.8x4.25 / LVDS 1000 /
1024x600 / 235x143x4.5 / RGB 700 /
Touch Screens are Available and Optional

5 Inch 480x854 Display Custom LCD Solutions for Diverse Applications
Brightness from 0-3000 for perfect display effect achievement.
100% NTSC makes the vividness of the picture better and the color transition in the picture more natural.
Color Temperature is positive white at around 5500K, warm white (yellowish) at 3500K and also cool white (cold) at 6500K.
Driver circuit with sufficient voltage and current values to meet output requirements and reduce the secondary development cycle.
Heat dissipation for high-brightness products to advance design of reasonable heat dissipation structure
Power consumption, we increase the brightness without increasing the power consumption.
Cables, Backlighting also requires cables, either through an FPC connected to the LCD's FPC and controlled through a port, or a separate cable that controls it through a connector.
LED life reached the standard of 30K hours Min. 50K, 70K, 100K hours are all achievable.

5 Inch 480x854 Display Touch screen,standard type and customization

5 Inch 480x854 Display Driver board/adapter board, standard type and design customization
DEMO board, H-DMl board, other customized board, etc.

5 Inch 480x854 Display Embedded Integrated Solution
UART display solution, H-DMl display solution, Window display solution, Android display solution, Raspberry Pi solution, portable secondary screen solution, etc.

Customization & Manufacturing

We support customize and manufacturing based on your requirements,look forward to your contact if you need mass production or design, quick technical support and competitive price will be provided.

Quality is constant

Diligence, processes, and attention to detail are at the core of our business. Our operational framework is built on the 4Cs:
four pillars of quality that underpin our role as the world’s leading display panel designer and manufacturer.
