6.2 Inch Stretched Bar Display 360x960 High Brightness IPS ST7701S RGB 24 BIT Bar LCD Display

6.2 Inch Stretched Bar Display 360x960 High Brightness IPS ST7701S RGB 24 BIT Bar LCD Display

$19.85 USD
$19.85 USD
Sale Sold out
ET062NH02-T
For product datasheet and technical support, welcome to contact us at support@youritech.com;
Regarding project mass production needs, please share the FORECAST to info@youritech.com for receiving volume discount pricing.
View full details

Product Introduction


6.2 Inch 360x960 Bar Display Overview

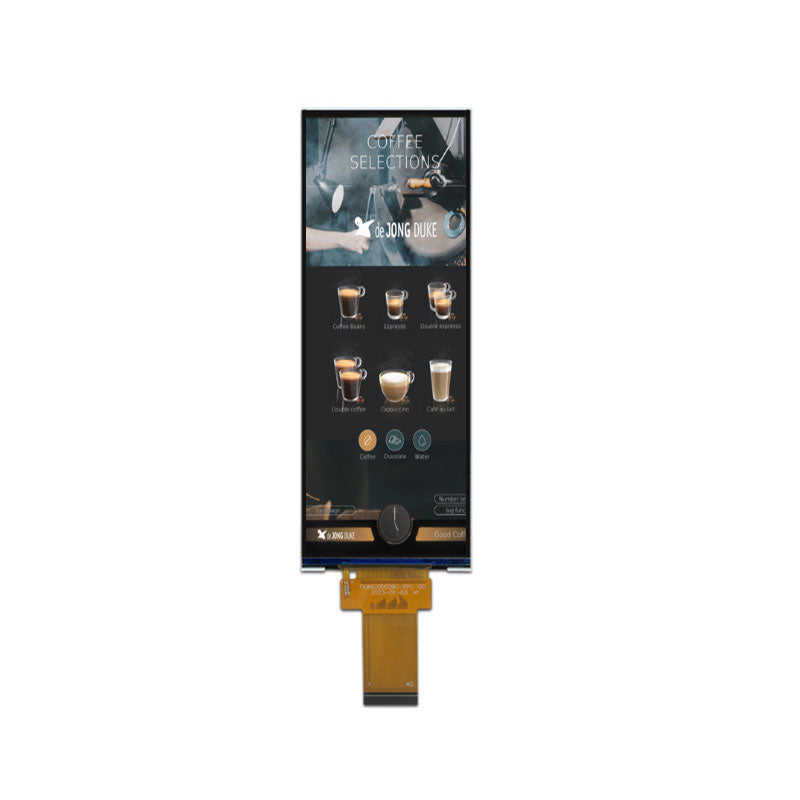

ET062NH02-T is a 6.2 inch diagonal stretched bar LCD display product featuring an IPS panel. ET062NH02-T supports a resolution of 360×960 with an extended aspect ratio, delivering clear and consistent image performance. The panel adopts an RGB 24-bit interface for stable signal transmission. It features an active area of 55.3(W) × 147.46(H) mm, with an outline size of 58.1(W) × 154.9(H) × 2.3(D) mm. ET062NH02-T can provide a display brightness of 700 cd/m², making it suitable for applications requiring good visibility. With IPS technology, it offers wide viewing angles and stable color performance. This model is designed without touch functionality, making it ideal for industrial control, automotive displays, and digital signage applications.

6.2 Inch 360x960 Bar Display Application
For industrial & Advertising & Medical Instruments & Outdoor & Automotive Display.



More Bar Displays For Reference

Inch Resolution LCM
Driver chip		 LCM Dimensions Display area LCD interface Reference brightness
0.96 80x160 ST7735S 13.5x27.95x1.5 10.80x21.70 SPI 500
80x160 ST7735S 13.5x27.95x2.15 10.80x21.70 SPI 1800
1.14 135x240 ST7789V 17.56x31.07x1.6 14.86x24.91 SPI4 500
1.9 170x320 ST7789V 25x49.32x1.53 22.7x42.72 SPI4 500
170x320 ST7789V 25x49.32x1.53 22.7x42.72 MCU8Bit/SPI Line 1000
2.86 376x960 ST7701S 31.2x76.6x2.05 27.11x68.28 MIPI 600
376x960 ST7701S 31.2x76.6x2.05 27.11x68.28 RGB 24 BIT 400
2.99 268x800 ST7701S 26.12x78.75x1.65 24.12x72 RGB 24 BIT 400
3.5 340x800 ST7701S 37.27x89x1.6 33.97x81 RGB 400
3.71 240x960 ST7701S 25.3x98.89x1.61 22.86x91.44 RGB 24 BIT 400
3.9 480x128 / / / TTL /
3.99 480x960 ST7701S 42.9x102.08x2.19 39.18x94.03 SPI3+RGB 18 BIT 800
4.58 320x960 ST7701S 41.57x118.8x2.5 36.77x110.3 RGB 24 BIT 450
320x960 ST7701S 41.57x118.8x2.5 36.77x110.3 RGB 24 BIT 1000
320x960 ST7701S 41.57x118.8x2.5 36.77x110.3 RGB 24 BIT 400
320x960 ST7701S 41.57x118.8x2.5 36.77x110.3 MIPI 2 LANE 400
5.8 800x320 / / / TTL /

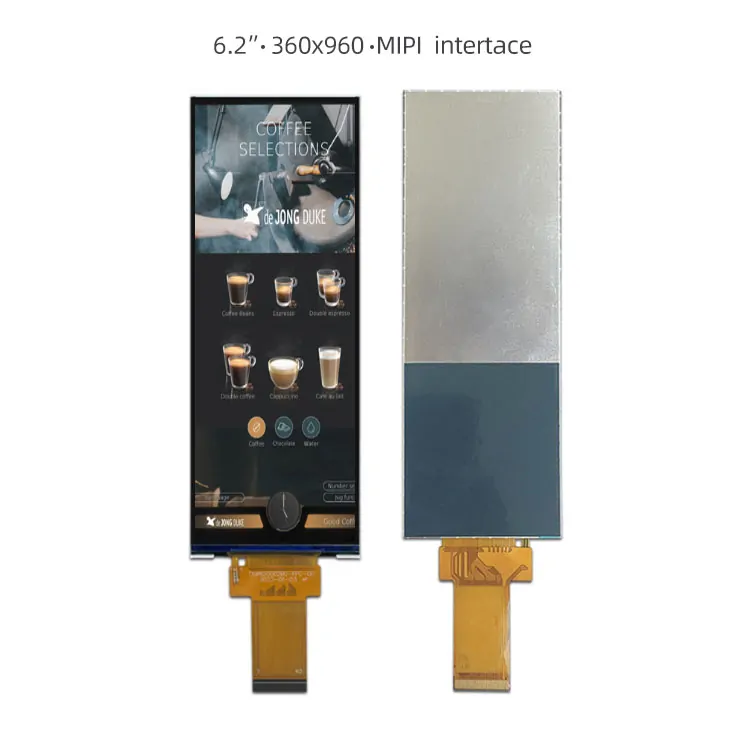

6.2 360x960 ST7701S 58.1x154.9x2.3 55.3x147.46 MIPI 2 LANE 400
360x960 ST7701S 58.1x154.9x2.3 55.3x147.46 RGB 24 BIT 700
6.5 1024x400 / / / TTL /
6.86 480x1280 NV3051F1 66.6x181x4.5 60.22x160.58 LVDS 8 BIT 600
480x1280 ICNL9707 72.42x173.79x6.5 60.22x160.58 MIPI 4 LANE 1000
480x1280 NV3052C 66.6x181x4.5 60.22x160.58 RGB 24 BIT 600
6.9 280x1424 OTA7290B 38.2x181.47x3.45 33.6x170.88 MIPI 4 LANE 500
280x1424 OTA7290B 38.2x181.47x3.45 33.6x170.88 MIPI 4 LANE 500
280x1424 NV3052C 38.2x181.47x3.45 33.6x170.88 RGB 500
7 280x1424 OTA7290N 38.2x181.47x3.4 33.60x170.88 MIPI 650
280x1424 HDMI 38.20x181.47x9.58 33.60x170.88 HDMI 700
7.84 480x1280 NV3051FL 67.8x205.78x4.6 59.4x198.08 MIPI 4 LANE 900
480x1280 NV3051F1 67.8x205.78x4.6 59.4x198.08 LVDS 8 BIT 900
480x1280 NV3051F1 67.8x205.78x4.6 59.4x198.08 MIPI 4 LANE 1200
8 1600x480 / 249.2x87x6.86 194.4x58.32 LVDS 440
8.8 480x1920 OTA7290B 64.3x231.3x4.8 54.72x218.88 MIPI 4 LANE 500
1280x480 HX82102A 229.5×97.20×3.5 209.28x78.48 LVDS 6/8 BIT 500
9.35 320x1280 ICNL9707 64.48x246.15x4.5 58.08x232.7 MIPI 4 LANE 1000
9.9 720x1600 ST7703I 115.36x251.06x4.70 106.92x237.60 MIPI 4 LANE 1000
10.1 440x1920 / 64.98x266.44x4.6 57.95x252.86 MIPI 750
10.25 1920x480 / 258.90x111.1x7.55 243.648x91.368 LVDS 8 BIT 1000
10.4 1024x100 HX8282 288.92x41.5x7.12 264.192x25.8 RGB 450
11.3 440x1920 ICNL9707 64.98x266.39 57.9x252.69x4.6 MIPI 4 LANE 600
12.3 1920x720 / 305.92×123.62 292.32×109.62 LVDS 1400
12.6 1920×515 / 315.61×94.02 309.312×82.9665 eDP 400
12.7 2880×864 / 313.54×101.33 308.448×92.534 eDP 500
14.1 3840×1100 / 350.52× 118.65 344.218× 98.604 eDP 300
14.5 2560×720 / 362.42× 112.41 354.816× 99.792 / 900
2560x720 / 363.5x133.5x8 354.816x99.792 LVDS 650
19.1 1920×360 / 491.5×109.4 476.64×89.37 LVDS 300
20.3 3840×720 / 555.01×126.98 506.88×95.04 LVDS 750
21 1920×132 / 542.4× 54.7 529.416× 36.3974 LVDS 300
1920x184 / 592x75x12.3 527.04x50.6 LVDS 500
23.1 1920×158 / 597.2×61.8 585.216×48.1584 LVDS 700
24 1920×360 / 612.7× 132.1 597.888× 112.104 LVDS 300
28 1920×360 / 732×165×17.3 699.84×131.22 LVDS 700
1920x360 / 729.3x167.3x19.2 698.4x130.95 LVDS 700
28.6 1920×540 / 722.2×220.23 698.4×196.425 LVDS 700
29 1920×540 / 720.8×226.25 705.6×198.45 LVDS 700
29.4 1920×720 / 698.4×261.9 722.2×285.7 LVDS 700
35 3840×200 / 891.6×60.4 877.824×45.72 V-by-One 8 lane 500
36.6 1920x290 / 960× 174.35 919.3× 138.85 LVDS 700
37 1920×540 / 914.9×280.9 899.712×253.044 LVDS 700
37.6 1920×540 / 972.4 ×299.8 919.296× 258.552 LVDS 1000
42 1920×480 / 1067.48× 287.72 1039.68× 259.92 LVDS 2500
43 3840×720 / 1076.3×204.5 1073.66×201.312 V-by-One 8 lane 1000
47 3840×160 / 1209×62.9 1196.16×49.84 V-by-One 8 lane 500
48 3840×720 / 1217.85×248.18 1194.05×223.884 V-by-One 8 lane 1000
49 5120×1440 / 1209.9×360.45 1198.08×336.96 eDP 350
49.5 1920×540 / 1232.4×363 1209.6×340.2 LVDS 1500
Touch Screen and Demo Board are Available and Optional

6.2 Inch 360x960 Bar Display Custom LCD Solutions for Diverse Applications
Brightness from 0-3000 for perfect display effect achievement.
100% NTSC makes the vividness of the picture better and the color transition in the picture more natural.
Color Temperature is positive white at around 5500K, warm white (yellowish) at 3500K and also cool white (cold) at 6500K.
Driver circuit with sufficient voltage and current values to meet output requirements and reduce the secondary development cycle.
Heat dissipation for high-brightness products to advance design of reasonable heat dissipation structure
Power consumption, we increase the brightness without increasing the power consumption.
Cables, Backlighting also requires cables, either through an FPC connected to the LCD's FPC and controlled through a port, or a separate cable that controls it through a connector.
LED life reached the standard of 30K hours Min. 50K, 70K, 100K hours are all achievable.

6.2 Inch 360x960 Bar Display Touch screen,standard type and customization

6.2 Inch 360x960 Bar Display Driver board/adapter board, standard type and design customization
DEMO board, H-DMl board, other customized board, etc.

6.2 Inch 360x960 Bar Display Embedded Integrated Solution
UART display solution, H-DMl display solution, Window display solution, Android display solution, Raspberry Pi solution, portable secondary screen solution, etc.

Customization & Manufacturing

We support customize and manufacturing based on your requirements,look forward to your contact if you need mass production or design, quick technical support and competitive price will be provided.
