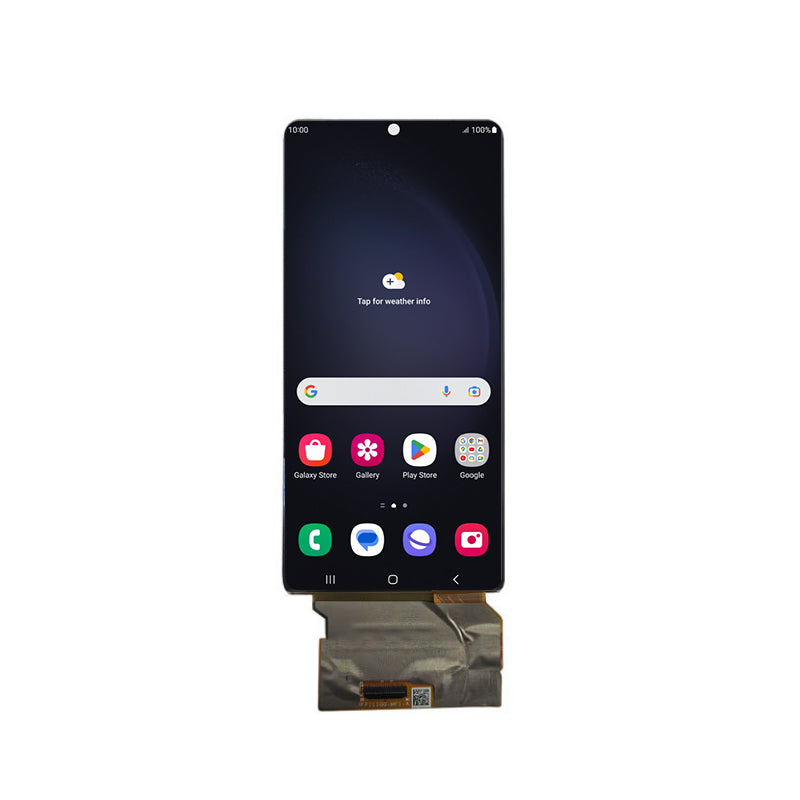

6.39 Inch AMOLED Bar Display 1080×2340 High Resolution 500 Nits AMOLED Display for Digital Devices Display

6.39 Inch AMOLED Bar Display 1080×2340 High Resolution 500 Nits AMOLED Display for Digital Devices Display

$45.13 USD
$45.13 USD
Sale Sold out
ET064AM01-H
For product datasheet and technical support, welcome to contact us at support@youritech.com;
Regarding project mass production needs, please share the FORECAST to info@youritech.com for receiving volume discount pricing.
View full details

Product Introduction


6.39 Inch AMOLED Display Overview

ET064AM01-H is a 6.39-inch AMOLED display module featuring a high resolution of 1080×2340 pixels and a pixel density of 403 PPI, delivering sharp, detailed images and vivid colors. It features an active area of 68.04(H) × 147.42(V) mm and an overall module dimension of 69.84(H) × 150.42(V) × 0.798(T) mm, making it suitable for slim display integration. The module provides a typical brightness of 500 nits, a high contrast ratio of 100,000:1, a wide viewing angle (All), and a color gamut of 110%, ensuring excellent image clarity, rich colors, and strong contrast. Supporting 16.7 million colors, ET064AM01-H delivers smooth color transitions and a high-quality visual experience. It utilizes an MIPI interface with a plug-in connector and features the SD5207 driver IC, with a drive voltage range of 2.8–3.3 V. The module operates at temperatures from -30°C to 70°C and supports storage temperatures from -40°C to 85°C. With its slim profile, high resolution, high brightness, and vibrant color performance, ET064AM01-H is suitable for smartphones, portable electronics, smart devices, and other applications requiring a high-quality AMOLED display.


ET064AM01-H AMOLED Display Specifications

Parameter Specification Parameter Specification
Part No. ET064AM01-H Display Size 6.39 inch
Resolution 1080 × 2340 pixels Display Colors 16.7M
Display Area 68.04(H) × 147.42(V) mm Module Dimensions 69.84(H) × 150.42(V) × 0.798(T) mm
Pixel Pitch 0.063 mm Pixel Density 403 PPI
Viewing Angle All Directions (A11) Contrast Ratio 100,000:1
Brightness 500 nits Color Gamut 110%
Interface MIPI Connection Type Plug-in Connector
Driver IC SD5207 Drive Voltage 2.8–3.3 V
Operating Temperature -30°C to 70°C Storage Temperature -40°C to 85°C
