6.67 Inch Flexible AMOLED Display 1080×2400 MIPI LTPS OLED Display

6.67 Inch Flexible AMOLED Display 1080×2400 MIPI LTPS OLED Display

$82.21 USD
$82.21 USD
Sale Sold out
ET065WF01-KT
For product datasheet and technical support, welcome to contact us at support@youritech.com;
Regarding project mass production needs, please share the FORECAST to info@youritech.com for receiving volume discount pricing.
View full details

Product Introduction


6.67 Inch AMOLED Display Overview

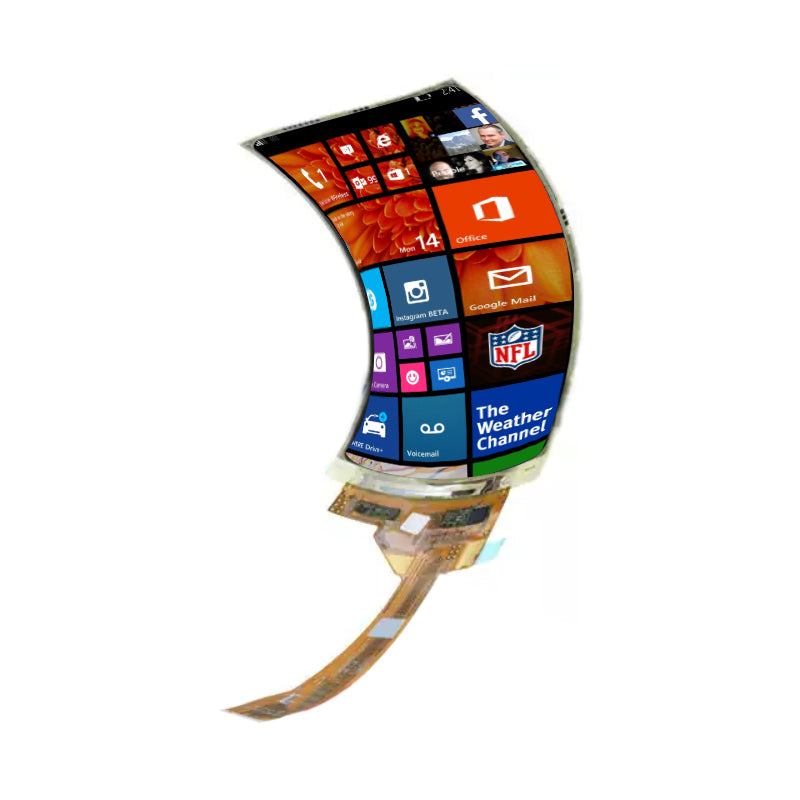

ET065WF01-KT is a 6.67-inch flexible AMOLED display featuring a 1080×2400 resolution and a MIPI interface. With 16.7 million colors and a 99% color gamut, this display delivers vivid colors, rich contrast, and detailed image quality. Its 550 cd/m² brightness and 100,000:1 contrast ratio provide clear visuals with deep blacks and excellent color definition, while full viewing angles ensure consistent image quality from different directions. The flexible AMOLED panel features a slim profile, measuring 71.55 × 165.01 × 0.29 mm, with a display area of 69.55 × 154.56 mm. Driven by the ICNA3508 controller, the module uses a 40-pin plug-in connection and operates at 3.3 V. Designed for reliable operation, it offers a service life of 30,000 hours, an operating temperature range of -20°C to +70°C, and a storage temperature range of -40°C to +80°C. This 6.67-inch flexible AMOLED display is suitable for portable electronics, handheld devices, and other applications requiring a slim display profile, high-resolution visuals, and vibrant color performance.

Model ET065WF01-KT 6.67 Inch Flexible AMOLED Display 1080×2400 MIPI LTPS OLED Display
Size 6.67" Touch No
Touch Type None Display Mode Flexible AMOLED
Display Colors 16.7M Color Gamut 99%
Response Time - Resolution 1080x2400
Dot Pitch 0.064(H)*0.060(V) Viewing Angle All viewing angle
Driver IC ICNA3508 Outline Dimension 71.55*165.01*0.29mm
Active Area   Dot Area 69.55*154.56mm
Brightness 550cd/m² Contrast Ratio 100000:1
Interface MIPI Pin Count 40
Pin Pitch -- Touch Interface
Touch IC -- Connection Type Plug-in type
Operating Voltage 3.3V Operating Life 30000h
Operating Temperature -20°C~+70°C Storage Temperature -40°C~+80°C

AMOLED Displays Technology

YOURITECH. Comprehensive Manufacturing of  Touchscreen, Driver Board Options

Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.

Youritech Production and Manufacturing



Customization & Manufacturing

We support customize and manufacturing based on your requirements,look forward to your contact if you need mass production or design, quick technical support and competitive price will be provided.

Quality is constant

Diligence, processes, and attention to detail are at the core of our business. Our operational framework is built on the 4Cs:
four pillars of quality that underpin our role as the world’s leading display panel designer and manufacturer.

SHIPPING & DELIVERY FAQS

1. Where is my product ship from?
All of products are shipped from China/HK.

2. How long will it take for my order to arrive?
It depends on the shipping method you choose, if you have requirements for the delivery time, please choose the fastest delivery shipping method (DHL).

3. When my order will be shipped out?
Normally, displays take 2–5 days and the HDMI/Demo board takes 1–2 weeks because it needs to be fully tested and configured. If stock is sufficient, we will ship immediately.

4. What`re the function of HDMI board and demo board?

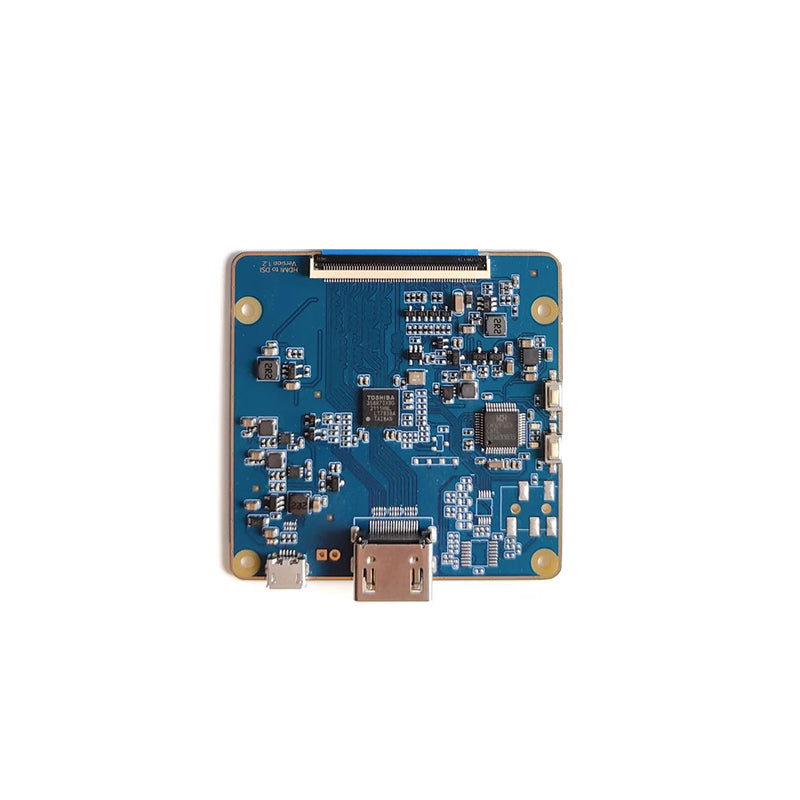

The HDMI board converts HDMI input into the panel's native signal (MIPI/eDP/LVDS), provides power rails and backlight control, it typically doesn`t have touch functionality unless the SKU indicates.
The demo board is a development tool for quickly lighting up and evaluating a display.
