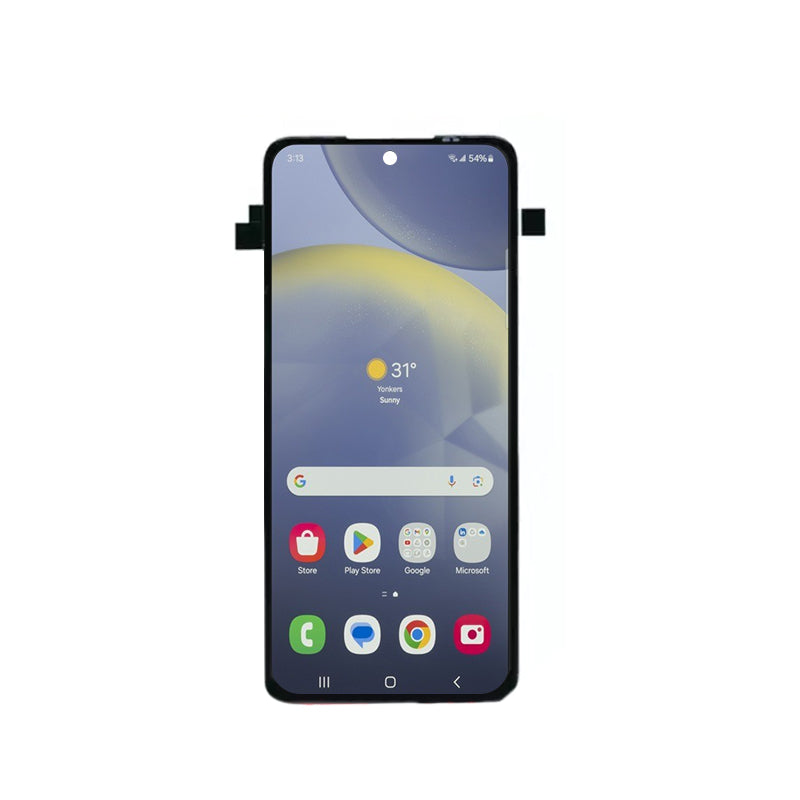

6.67 Inch Flexible AMOLED Display 1080x2400 MIPI With Capacitive Touch Screen Display

Product Introduction

6.67 Inch AMOLED Display Overview

ET067AMFL02-K is a 6.67-inch flexible AMOLED display module featuring a resolution of 1080 × 2400 pixels in a portrait orientation, supporting 16.7M colors. In terms of mechanical specifications, it features an active area of 69.55(W) × 154.56(H) mm, a visible area of 69.85(W) × 154.86(H) mm, and an outline dimension of 74.56(W) × 162.61(H) × 3.25(D) mm. Its pixel pitch is 0.0644(H) × 0.0644(V) mm.ET067AMFL02-K provides a typical brightness of 500 cd/m² and a contrast ratio of 100000:1, delivering vivid colors and deep blacks. It supports a full viewing angle for consistent image quality from different viewing directions. As a self-emissive display technology, flexible AMOLED enables rich color reproduction and a slim display design. The module is driven by the RM692F0 driver IC and utilizes a 40-pin MIPI interface for display signal input. It also supports capacitive touch functionality through an I2C touch interface, with an FT3519 touch controller. Featuring a plug-in connection, a 3V operating voltage, and a typical service life of 30,000 hours, ET067AMFL02-K is designed for integration into compact electronic devices. It operates at temperatures from -20°C to +60°C and can be stored at temperatures from -30°C to +70°C, making it suitable for smart devices, portable electronics, and other applications requiring a high-resolution flexible AMOLED display with touch functionality.
