6.86 Inch Stretched LCD Display MIPI 480×1280 Bar Display with Touch & HDMI Driver Board

6.86 Inch Stretched LCD Display MIPI 480×1280 Bar Display with Touch & HDMI Driver Board

$23.64 USD
$23.64 USD
Sale Sold out
6.86 Inch Bar Displays Solution
For product datasheet and technical support, welcome to contact us at support@youritech.com;
Regarding project mass production needs, please share the FORECAST to info@youritech.com for receiving volume discount pricing.
View full details

Product Introduction

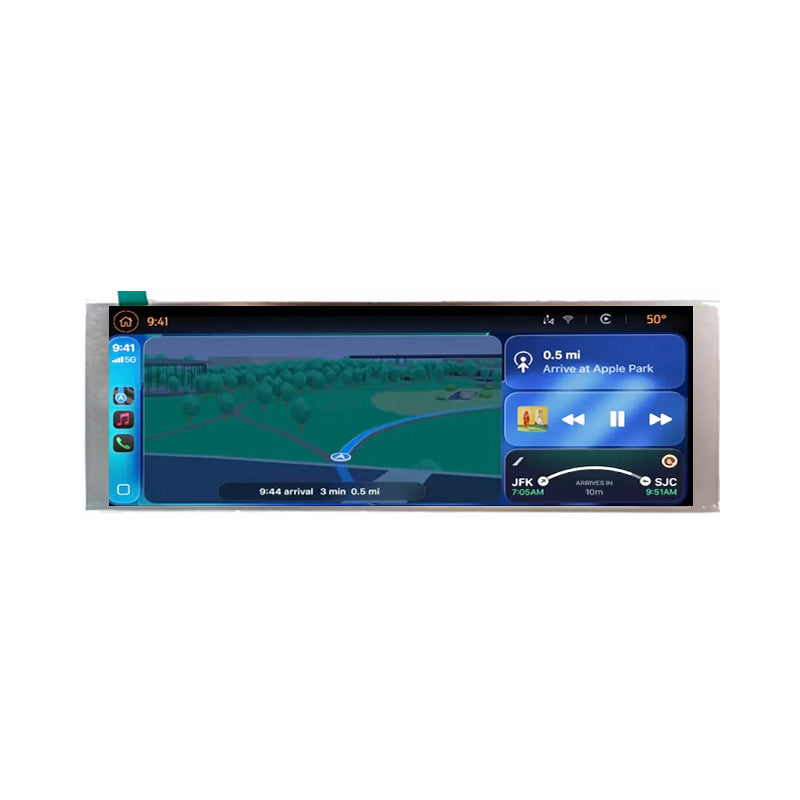

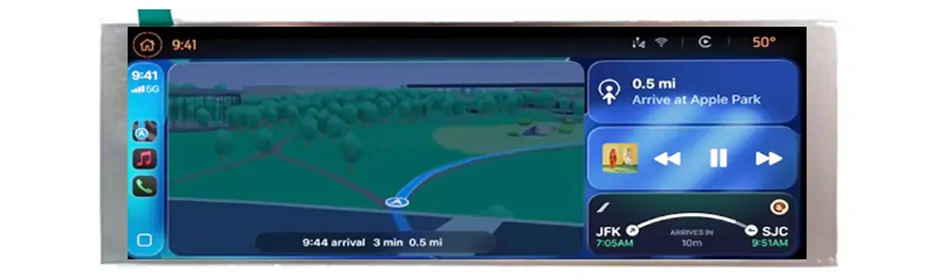

6.86 Inch Stretched Bar Display Overview
ET068BA01-GX is a 6.86-inch diagonal stretched LCD display screen product. ET068BA01-GX supports a display resolution of 480×1280 with a 40-Pin MIPI interface and Normally Black display mode. It features an outline size of 66.60(W)×181.0(H)×4.75(D) mm and supports a wide viewing angle in all directions (L/R/U/D). ET068BA01-GX provides 520 cd/m² display brightness and supports an operating temperature range of -20°C to 70°C. It can be equipped with a touch panel and an HDMI driver board, making it suitable for stretched bar displays, secondary monitors, embedded displays, and other applications requiring a long-form display solution.
6.86 Inch Stretched LCD Display 480×1280 MIPI Bar Display with Touch & HDMI Driver Board6.86 Inch Stretched Bar Display  Specification

Part No. ET068BA01-GX Size 6.86″ inch
Resolution 480 × 1280 Panel Interface MIPI 40pin
Display Mode Normally Black Outline Dimension 66.60 × 181.0 × 4.75 mm
Active Area / Viewing Angle L/R/U/D ALL
Brightness 520nits Operation / Storage Temp -20~70°C / /
Touch Yes

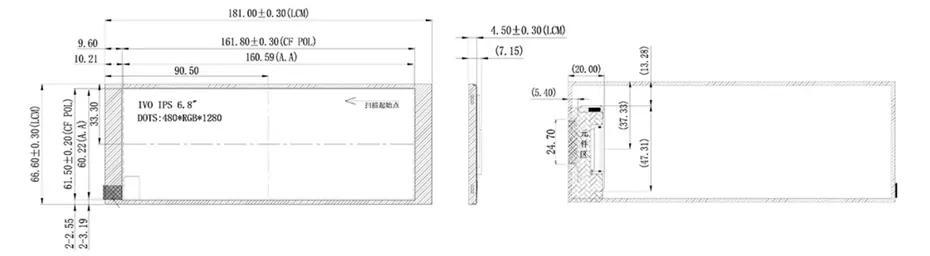

6.86 Inch Stretched Bar Display Drawing
6.86 Inch Stretched LCD Display 480×1280 MIPI Bar Display with Touch & HDMI Driver Board

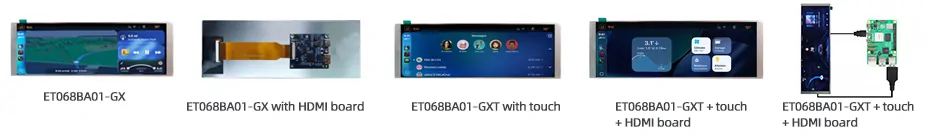

6.86 Inch Bar Displays Solution For Reference
ET068BA01-GX

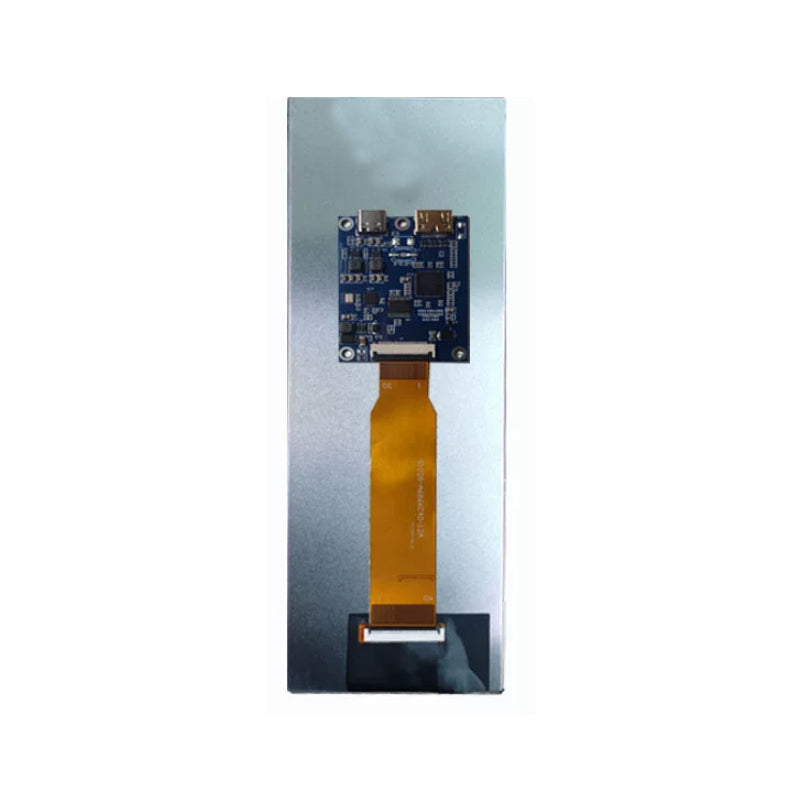

ET068BA01-GX with HDMI board

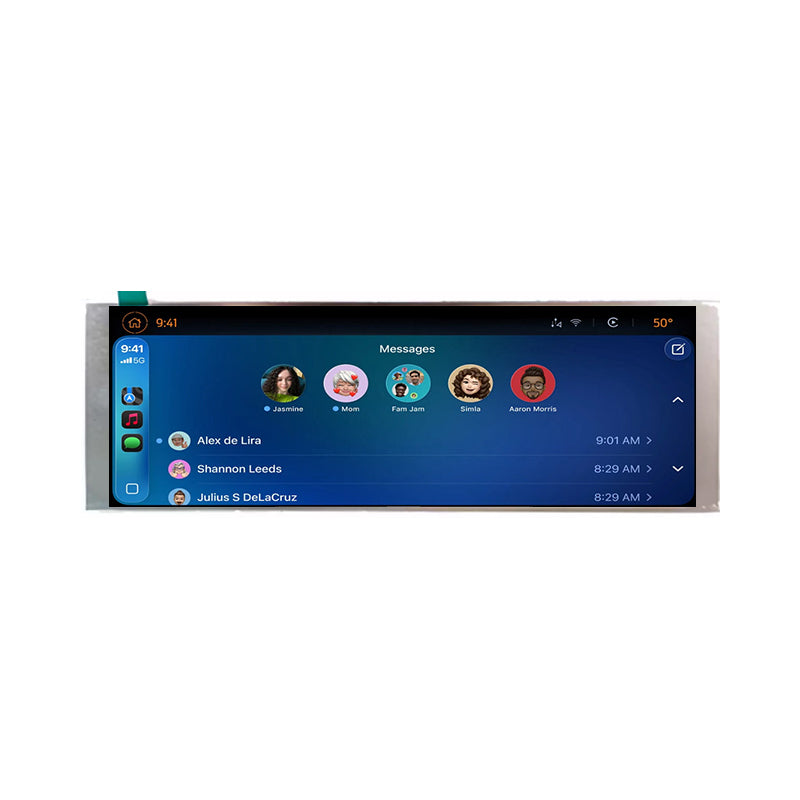

ET068BA01-GXT with touch

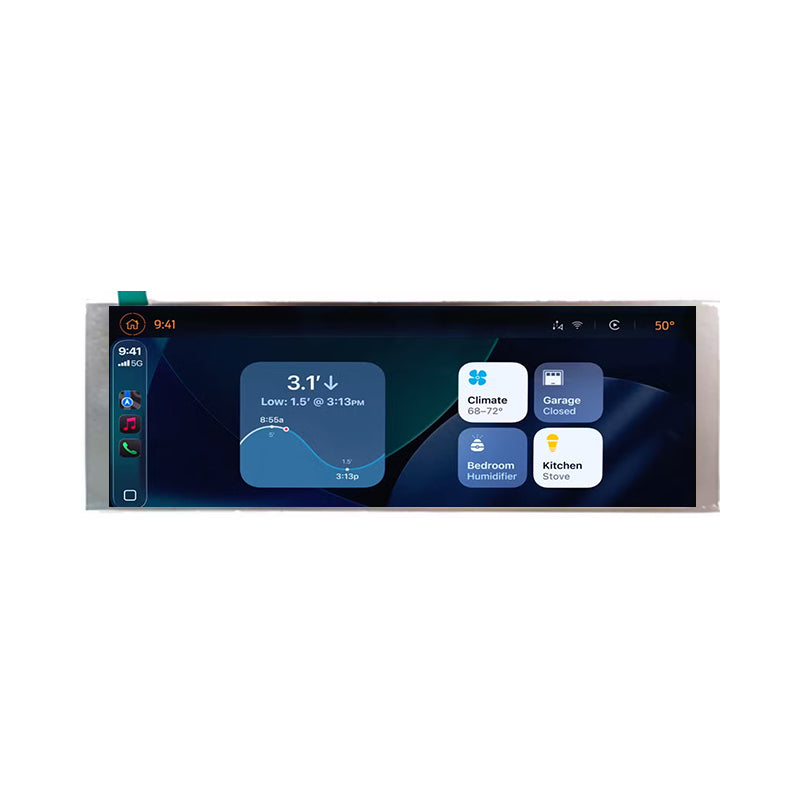

ET068BA01-GXT + touch + HDMI board

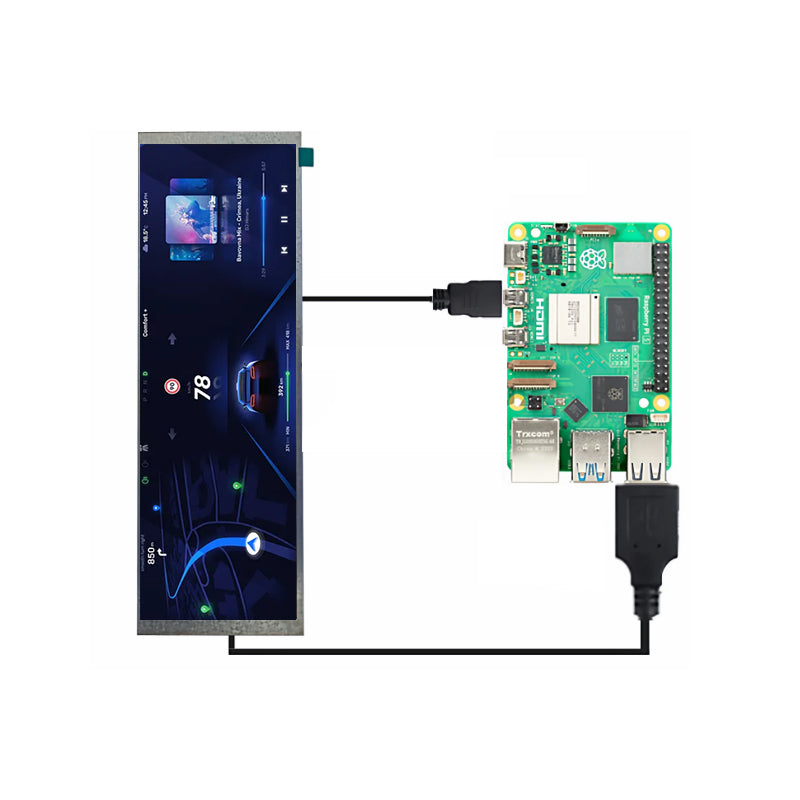

ET068BA01-GX WITH USB board
6.86 Inch Stretched LCD Display 480×1280 MIPI Bar Display with Touch & HDMI Driver Board

YOURITECH. Comprehensive Manufacturing of  Touchscreen, Driver Board Options

Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.


Production and Manufacturing

Customization & Manufacturing

We support customize and manufacturing based on your requirements,look forward to your contact if you need mass production or design, quick technical support and competitive price will be provided.

Quality is constant

Diligence, processes, and attention to detail are at the core of our business. Our operational framework is built on the 4Cs:
four pillars of quality that underpin our role as the world’s leading display panel designer and manufacturer.
