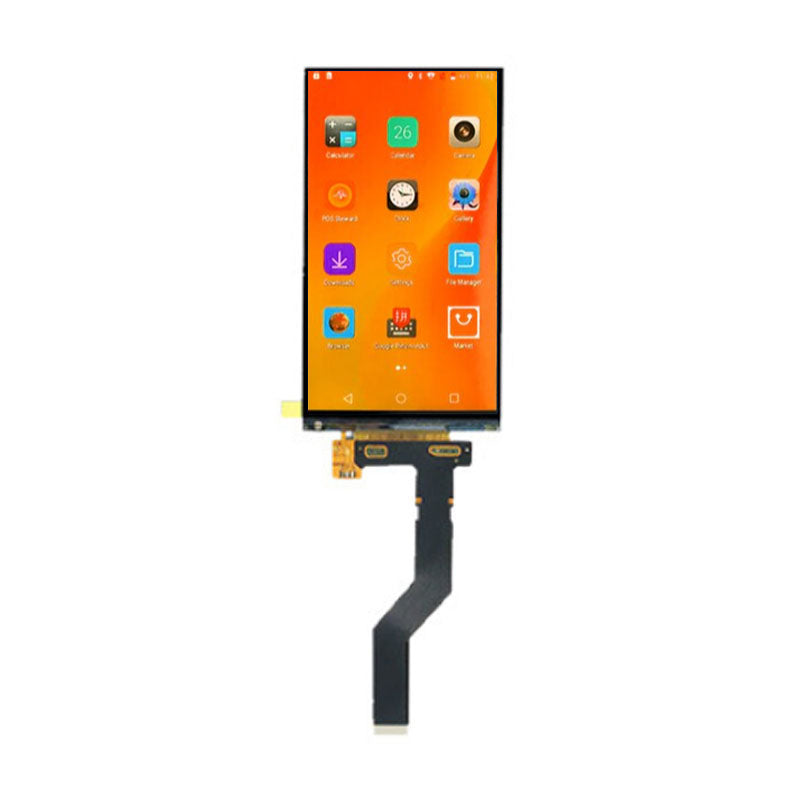

6 inch 1440x2560 2K screen HD LCD Screen MIPI Interface 3D Printing Light Curing Screen LS060R1SX02

6 inch 1440x2560 2K screen HD LCD Screen MIPI Interface 3D Printing Light Curing Screen LS060R1SX02

$34.13 USD
$40.00 USD $34.13 USD
Sale Sold out


6 inch 1440x2560 2K screen HD LCD Screen MIPI Interface 3D Printing Light Curing Screen LS060R1SX02

LCD SPECIFICATION

Panel Size

6.0 inch

Type

CG-Silicon, LCM

Pixel Format

1440(RGB)×2560 [Quad-HD]

Configuration

RGB Vertical Stripe

Active Area

74.52(H)×132.48(V) mm

Outline Dim.

76.92(H)×140.13(V) ×1.35(D) mm

Luminance

450 cd/m² (Typ.)

Contrast Ratio

1300:1 (Typ.) (TM)

View Direction

Symmetry

Response Time

35 (Max.)(Tr+Td)

Viewing Angle

80/80/80/80 (Typ.)(CR≥10)

Operating Mode

New Mode2, Normally Black, Transmissive

Support Color

16.7M 70% NTSC

Light Source

WLED [8S2P] , W/O Driver

Weight

21.5g (Typ.)

Designed For

Mobile phone

Frame Rate

-

Touch Panel

Without

Output interface

50 pins MIPI (2 ch, 4 data lanes) , Connector

Frequency response

1.8/5.75/-5.75V (Typ.)(IOVCC/VSP/VSN)

Common functions

Operating Temperature: -20 ~ 60 °C ; Storage Temperature: -30 ~ 70 °C
For product datasheet and technical support, welcome to contact us at support@youritech.com;
We support customize and manufacturing based on your requirements,look forward to your contact if you need mass production or design, quick technical support and competitive price will be provided.
