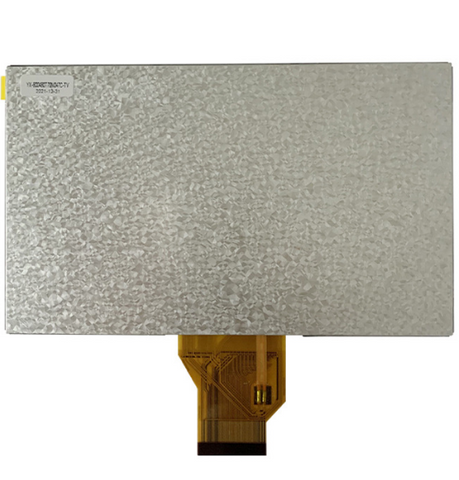

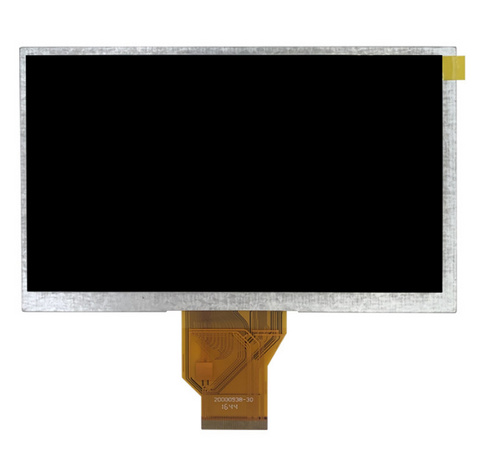

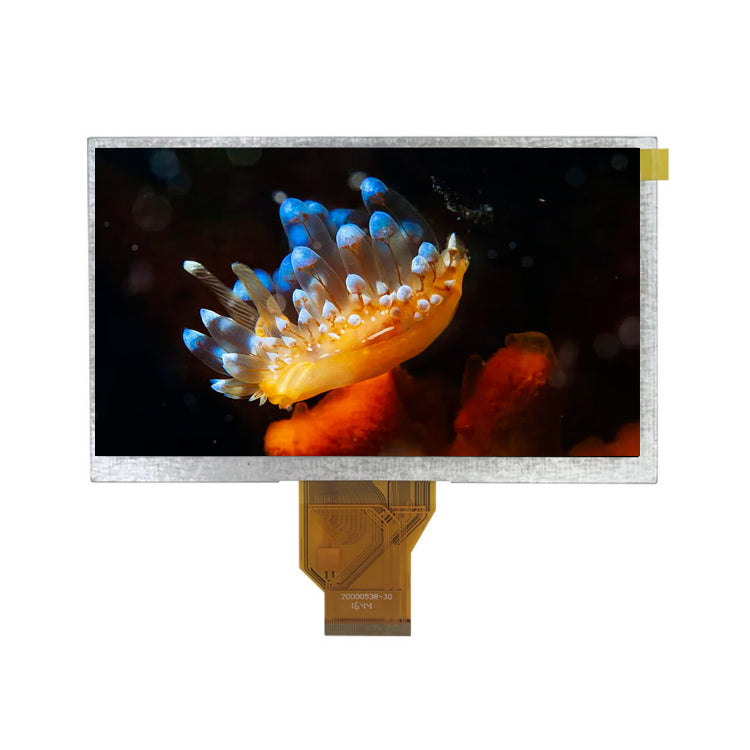

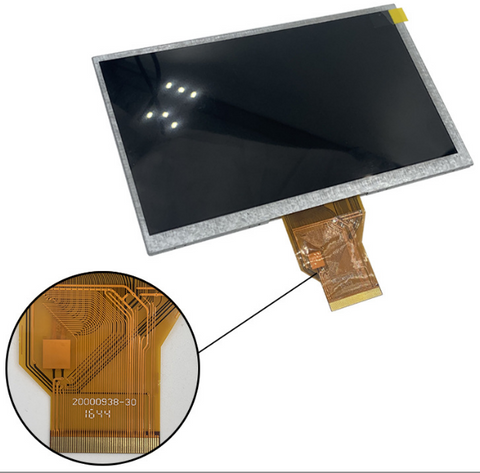

ET7D0002 7.0 inch 800x480 LCD Color Display 800 Brightness LCD Display For Vehicle-mounted Industrial Control Medical Instruments

ET7D0002 7.0 inch 800x480 LCD Color Display 800 Brightness LCD Display For Vehicle-mounted Industrial Control Medical Instruments

$22.80 USD
$26.00 USD $22.80 USD
Sale Sold out


7.0 inch 800x480 LCD Color Display 800 Brightness LCD Display For Vehicle-mounted Industrial Control Medical Instruments

Product 7" TFT LCD Brand Youritech Resolution  800x480
Part No. ET7D0002 W:H:L 16:09 Interface RGB24BIT
Mode TFT-LCD, Normally black Brightness 700 cd/m² Pins 50PINS
View Angle 70/70/50/70(Typ.) Contrast 300:1 (Typ.) Backlights 27Piece
Aactive Area 154.08(W)x85.92(H)mm Thickness 5.7mm Connection  3S9P
Frame Area 165(W)x100(H)mm Colar 16.7M Input 3.3V
Working Temp -20~70℃ Surface Anti-glare Response Time 30ms
Storage Temp -30~80℃ Refresh rate 60HZ Best View 12 O'Clock
For product datasheet and technical support, welcome to contact us at support@youritech.com;
We support customize and manufacturing based on your requirements,look forward to your contact if you need mass production or design, quick technical support and competitive price will be provided.
