7.8 Inch TFT LCD Display LVDS 400×1280 High Brightness Display For Marine Display

Product Introduction

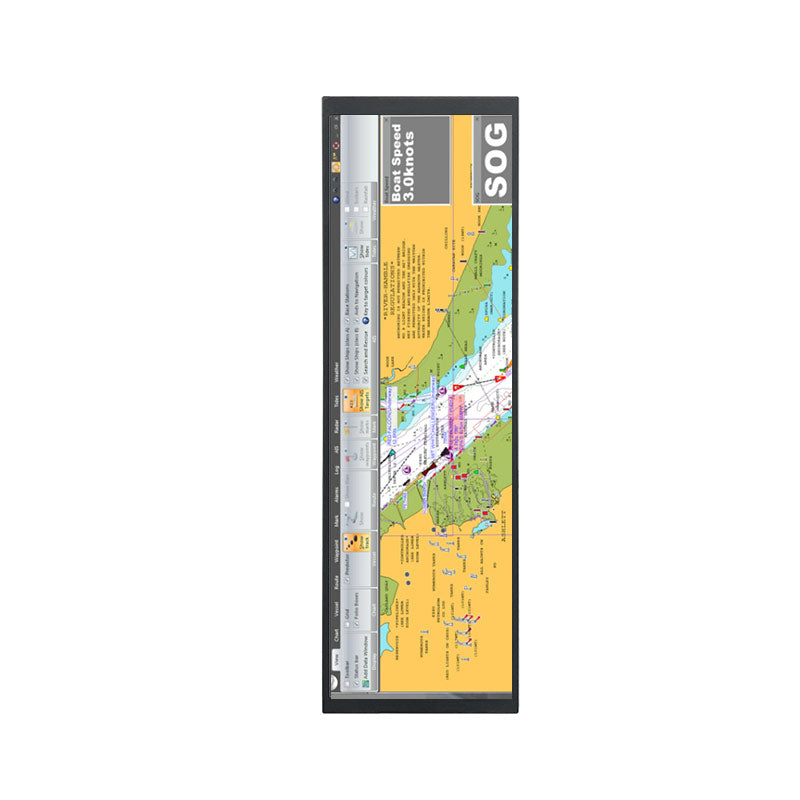

7.8 Inch TFT LCD Display 400×1280 LVDS High Brightness Display For Marine Display Overview

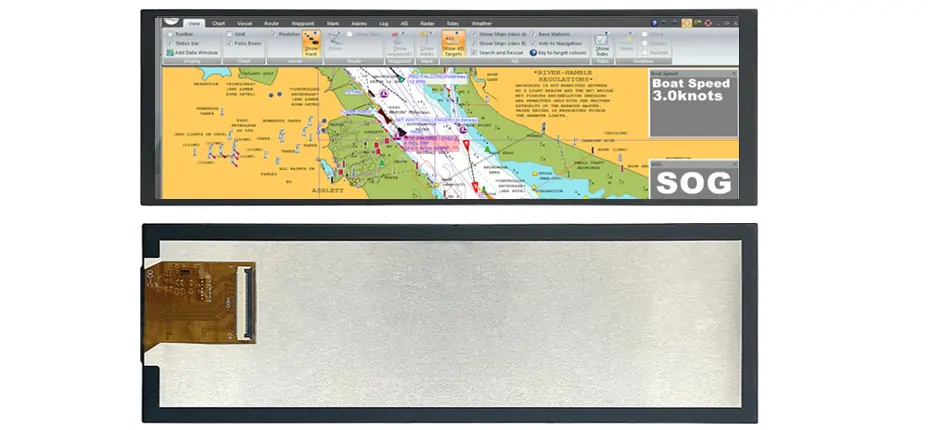

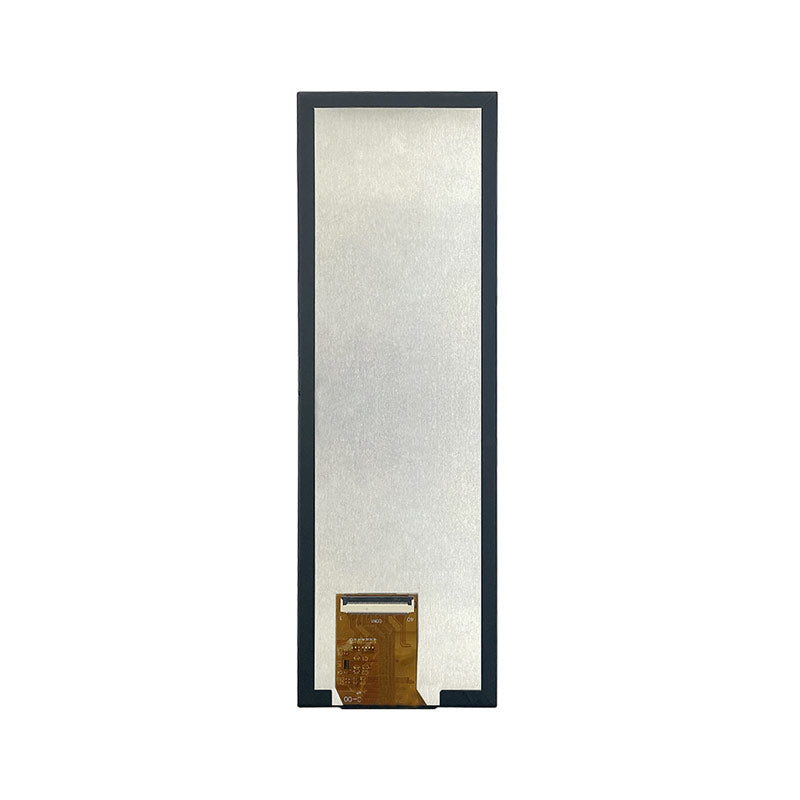

ET078HD02-T is a 7.8-inch diagonal TFT LCD display, transmissive mode, with LVDS interface. ET078HD02-T supports 400×1280 resolution with a 19:6 aspect ratio and wide viewing angles of 80°/80°/80°/80° (L/R/U/D). It features an active area of 59.4 × 190.08 mm, outline dimensions of 67.14 × 205.12 mm, and provides 700 cd/m² high-brightness output. The display operates over a wide temperature range of -20~70 °C and can be stored at -30~80 °C. This model does not include touch functionality and is suitable for marine and other high-brightness applications.

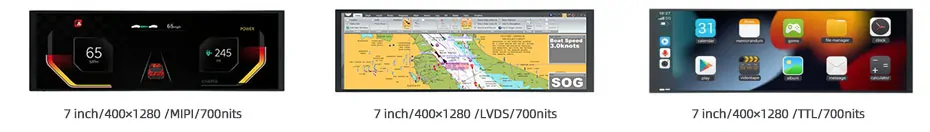

More 7.8 Inch Marine Display For Reference
ET078HD01-T (400×1280, MIPI, 700nits, -20~70°C, 67.14×205.12mm)
ET078HD02-T (400×1280, LVDS, 700nits, -20~70°C, 67.14×205.12mm)
ET078HD03-T (400×1280, TTL, 700nits, -20~70°C, 67.8×205.78mm)

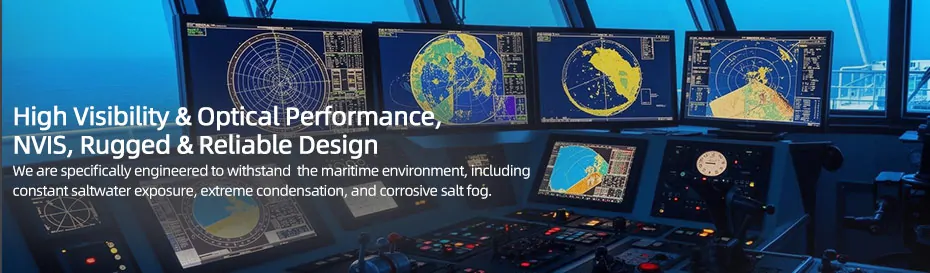

Key Features of Marine DisplayHigh Visibility & Optical Performance:
-Optical Bonding, reduce reflections and prevent internal fogging
-High Brightness, ranges from 500 to over 3000 cd/m² for direct sunlight readability
-Wide Dimming Range, adjust down to as low as 0.05 cd/m² for safe night operation on the bridge

Corrosion & Environmental Protection:
-Typically IP65 (dust-tight and protected against water jets) or IP67 (temporarily submersible)
-Salt Fog Resistance, built to resist corrosion from salt-laden air

Night Vision Compatibility (NVIS):
-NVIS Mode, LED backlighting compatible with MIL-STD-3009, switching to specific low-intensity green or red light
-Ultra-Low Luminance, dim to extremely low levels (0.05 cd/m²) to preserve natural night vision

Touchscreen Solutions:
-Ruggedized for gloved operation, Multiple touch technologies (resistive, capacitive, optical)
-Configurations tailored to operational requirements
-Reliable and responsive touch performance

Rugged & Reliable Design:
-Shock & Vibration Resistance, built to withstand constant engine vibration and wave impacts (MIL-STD-810)
-Wide Temperature Range: Operates in extreme cold (-40°C or lower) to intense heat (85°C+)

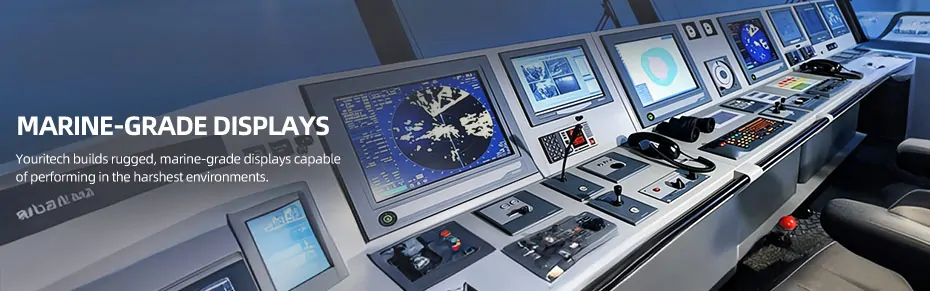

Applications For Marine Displays

Navigation & Chartplotting
-ECDIS (Electronic Chart Display and Information System)
-Radar display
-Chartplotters
-Route monitoring and planning

Integrated Bridge Systems (IBS)
-Centralized multi-function workstations combining radar
-ECDIS
-Conning information
-Alarm management
-Engine monitoring

Fishfinding & Sonar
-Commercial fishing
-Recreational fishfinding
-Underwater structure and bottom mapping

Mission & Combat Systems (Naval)
-Combat Management Systems (CMS)
-Tactical moving maps
-Sensor (radar/EO/IR) integration
-AI-powered target tracking

Performance Monitoring (Racing/High-End)
-True wind speed/direction (Boat speed, heel angle, polar performance, start-line timing)

Entertainment & Lifestyle
-Satellite TV, DVD/multimedia, audio distribution, onboard ambiance control

Security & Surveillance
-CCTV camera monitoring (engine room, deck, dock)
-Man-overboard (MOB) systems
-Remote vessel monitoring via satellite/web

Integrated Vessel Control
-Lighting (CZone), HVAC, tank monitoring, power management, engine diagnostics and control

Corrosion & Environmental Protection:
-Typically IP65 (dust-tight and protected against water jets) or IP67 (temporarily submersible)
-Salt Fog Resistance, built to resist corrosion from salt-laden air

Night Vision Compatibility (NVIS):
-NVIS Mode, LED backlighting compatible with MIL-STD-3009, switching to specific low-intensity green or red light
-Ultra-Low Luminance, dim to extremely low levels (0.05 cd/m²) to preserve natural night vision

Touchscreen Solutions:
-Ruggedized for gloved operation, Multiple touch technologies (resistive, capacitive, optical)
-Configurations tailored to operational requirements
-Reliable and responsive touch performance

Rugged & Reliable Design:
-Shock & Vibration Resistance, built to withstand constant engine vibration and wave impacts (MIL-STD-810)
-Wide Temperature Range: Operates in extreme cold (-40°C or lower) to intense heat (85°C+)
