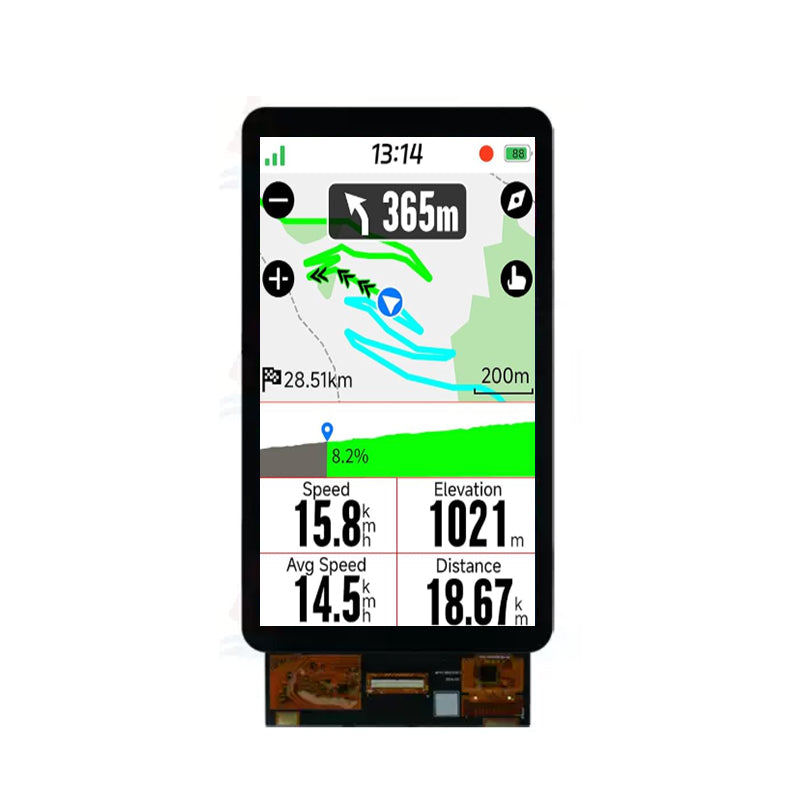

7 Inch AMOLED Display 1080×1920 LTPS OLED Screen with On-cell Touch

7 Inch AMOLED Display 1080×1920 LTPS OLED Screen with On-cell Touch

$166.69 USD
$166.69 USD
Sale Sold out
ET070AM02-KT
For product datasheet and technical support, welcome to contact us at support@youritech.com;
Regarding project mass production needs, please share the FORECAST to info@youritech.com for receiving volume discount pricing.
View full details

Product Introduction


7 Inch AMOLED Display Overview
ET070AM02-KT supports a display resolution of 1080×1920 with an aspect ratio of 9:16 (W:H), delivering sharp images and fine details. As for mechanical details, it features an active area of 86.94(W)×154.56(H) mm, a viewing area of 87.54(W)×155.16(H) mm, and an outline size of 99.04(W)×174.56(H)×2.22(D) mm. ET070AM02-KT provides 900 cd/m² display brightness, a 100000:1 contrast ratio, and a full viewing angle, ensuring vivid colors and clear visibility from different viewing directions. With a pixel pitch of 0.0805×0.0805 mm, this 7-inch LTPS AMOLED display delivers detailed visual performance with deep blacks and high contrast. The module features On-cell Touch, a Focal3519 (BGA) touch controller, and an IIC touch interface. ET070AM02-KT utilizes the GD7658A V110 driver IC and supports MIPI and SPI interfaces for display signal input. It operates at a typical voltage of 3V and features a 51-pin connector. Designed for demanding environments, it offers a service life of up to 20000 hours, an operating temperature range of -30°C to +85°C, and a storage temperature range of -40°C to +85°C.

Model ET070AM02-KT  7 Inch AMOLED Display 1080×1920 LTPS OLED Screen with On-cell Touch
Size 7" Touch Yes
Touch Type On-cell Touch Display Mode AMOLED
Resolution 1080×1920 Dot Pitch 0.0805 (H)*0.0805 (V)
Viewing Angle All viewing angle Driver IC GD7658A V110
Outline Dimension 99.04*174.56*2.22 mm Active Area 87.54*155.16 mm
Dot Area 86.94*154.56 mm Brightness 900 cd/m²
Contrast Ratio 100000:1 Interface MIPI (+SPI)
Pin Count 51 Pin Pitch --
Touch Interface IIC Touch IC Focal3519 (BGA)
Connection Type Plug-in type Operating Voltage 3 V
Operating Life 20000h Operating Temperature -30°C ~ +85°C
Storage Temperature -40°C ~ +85°C


AMOLED Displays Technology

YOURITECH. Comprehensive Manufacturing of  Touchscreen, Driver Board Options

Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.

Youritech Production and Manufacturing



Customization & Manufacturing

We support customize and manufacturing based on your requirements,look forward to your contact if you need mass production or design, quick technical support and competitive price will be provided.

Quality is constant

Diligence, processes, and attention to detail are at the core of our business. Our operational framework is built on the 4Cs:
four pillars of quality that underpin our role as the world’s leading display panel designer and manufacturer.

SHIPPING & DELIVERY FAQS

1. Where is my product ship from?
All of products are shipped from China/HK.

2. How long will it take for my order to arrive?
It depends on the shipping method you choose, if you have requirements for the delivery time, please choose the fastest delivery shipping method (DHL).

3. When my order will be shipped out?
Normally, displays take 2–5 days and the HDMI/Demo board takes 1–2 weeks because it needs to be fully tested and configured. If stock is sufficient, we will ship immediately.

4. What`re the function of HDMI board and demo board?

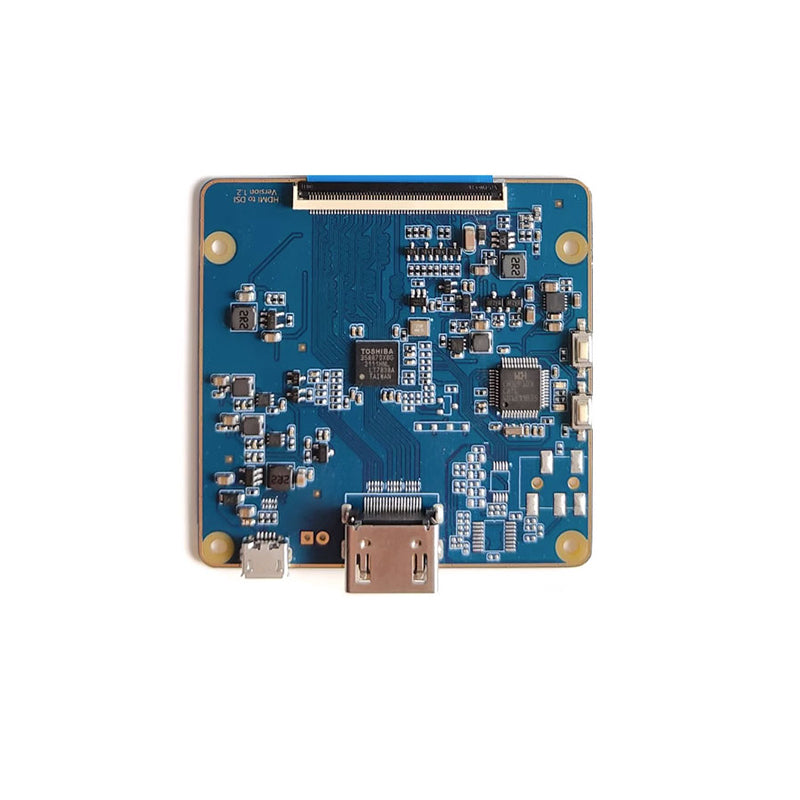

The HDMI board converts HDMI input into the panel's native signal (MIPI/eDP/LVDS), provides power rails and backlight control, it typically doesn`t have touch functionality unless the SKU indicates.
The demo board is a development tool for quickly lighting up and evaluating a display.
