7 Inch Round Display MIPI 1080×1080 High Brightness 1000nits IPS Circular Display with Capacitive Touch & HDMI Driver Board

7 Inch Round Display MIPI 1080×1080 High Brightness 1000nits IPS Circular Display with Capacitive Touch & HDMI Driver Board

$107.19 USD
$107.19 USD
Sale Sold out
More 7 Inch Circular Display Solution
For product datasheet and technical support, welcome to contact us at support@youritech.com;
Regarding project mass production needs, please share the FORECAST to info@youritech.com for receiving volume discount pricing.
View full details

Product Introduction

7 Inch Round Display 1080×1080 MIPI High Brightness 1000nits IPS Circular Display with Capacitive Touch & HDMI Driver Board Overview

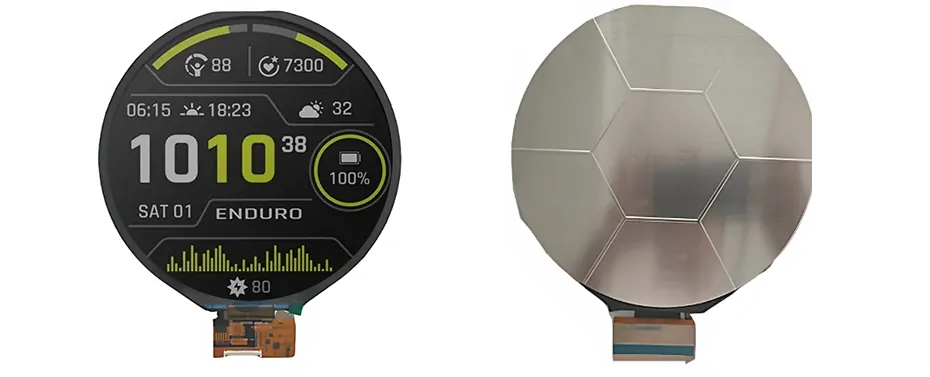

ET070CR01-GX is a 7-inch diagonal IPS circular display featuring a 1080×1080 resolution and a 1:1 aspect ratio. The display uses a 40-pin MIPI interface and adopts a transmissive display mode, delivering high brightness of 1000 cd/m² for clear and vivid images in various lighting conditions. It features an outline dimension of 192.75(W)×191.58(H)×4.75(D) mm and supports a wide viewing angle characteristic of IPS technology. The display operates within a temperature range of -20~70°C and is equipped with capacitive touch functionality. An HDMI driver board is also available, providing convenient connectivity and making the display suitable for a wide range of embedded, industrial, smart device, and interactive applications.
ET070CR01-GX
7 Inch Circular Display  Specification

Part No. ET070CR01-GX Size 7 inch
Resolution 1080 × 1080 Display Mode Transmissive
Panel Interface 40-Pin MIPI Touch Panel Yes
Outline Dimension 192.75 × 191.58 × 4.75 mm Active Area N/A
Viewing Angle (L/R/U/D) IPS Full Angle Brightness 1000 nits
Operation Temp. -20 ~ 70°C Storage Temp. N/A



7 Inch Circular Display Drawing
ET070CR01-GX

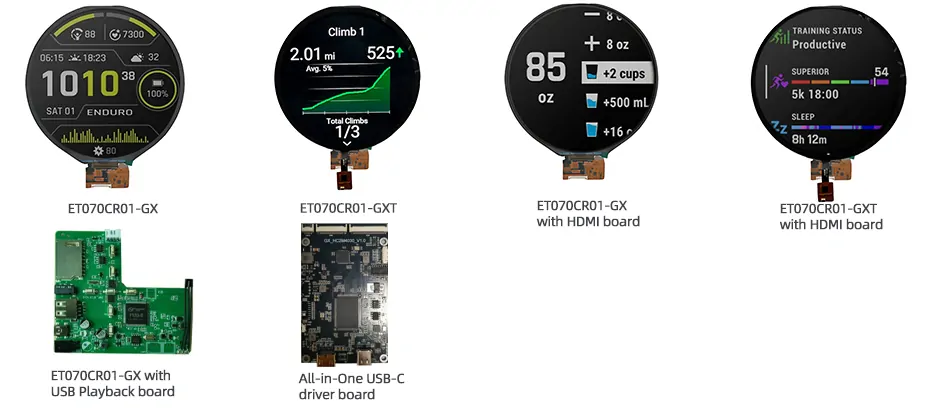

More 7 Inch Circular Display Solution For Reference

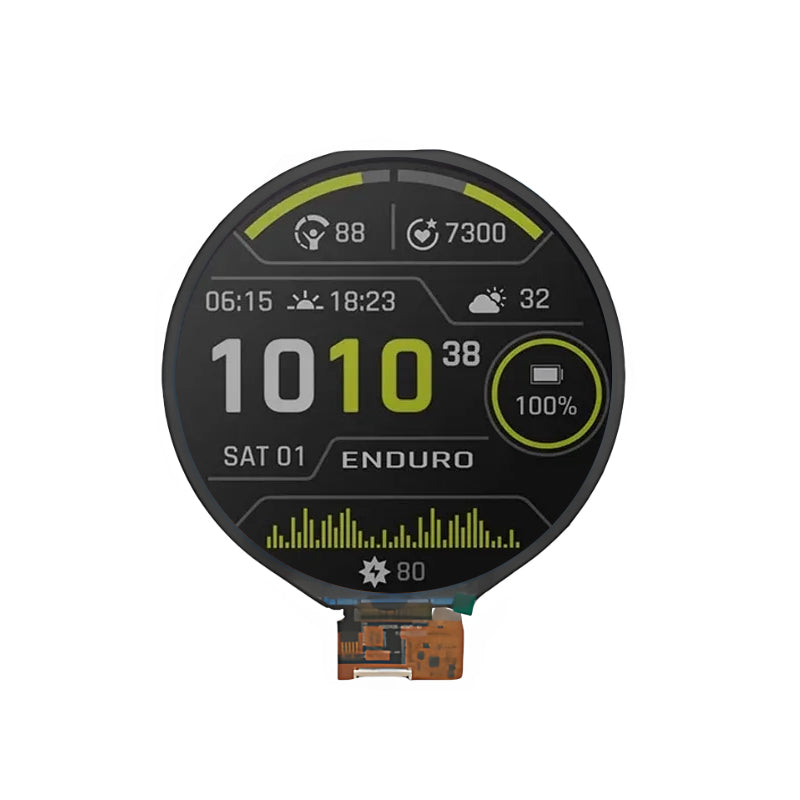

ET070CR01-GX (Non Touch)

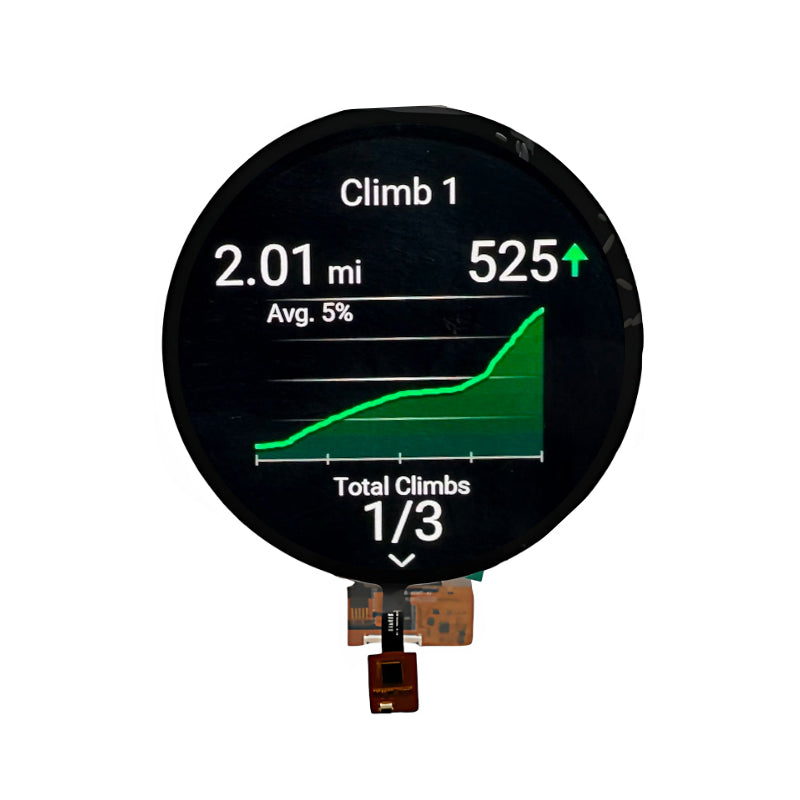

ET070CR01-GXT (Capacitive Touch)

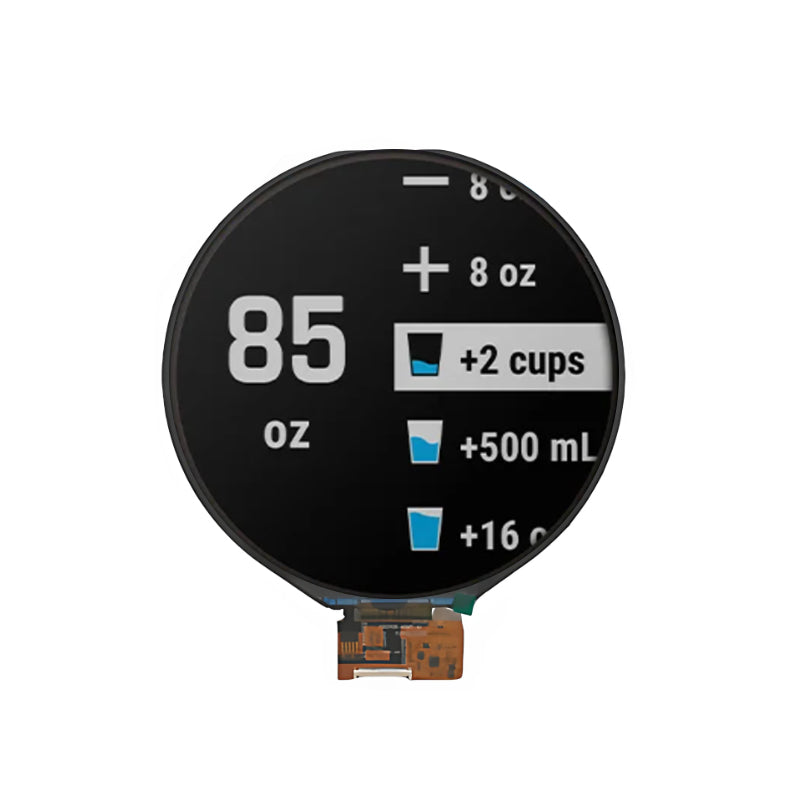

ET070CR01-GX with HDMI board

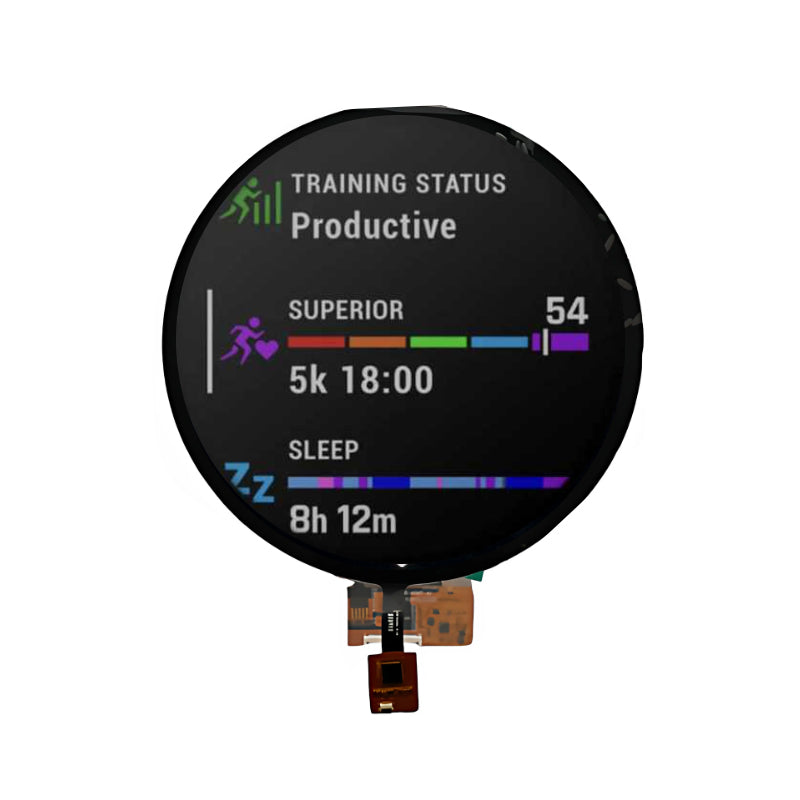

ET070CR01-GXT with HDMI board

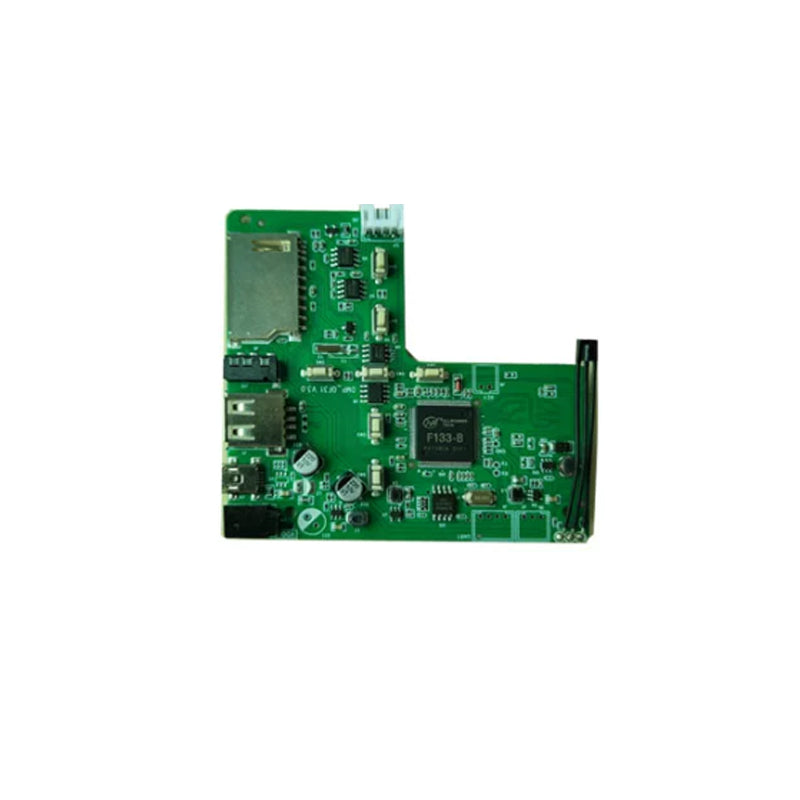

ET070CR01-GX with USB Playback board

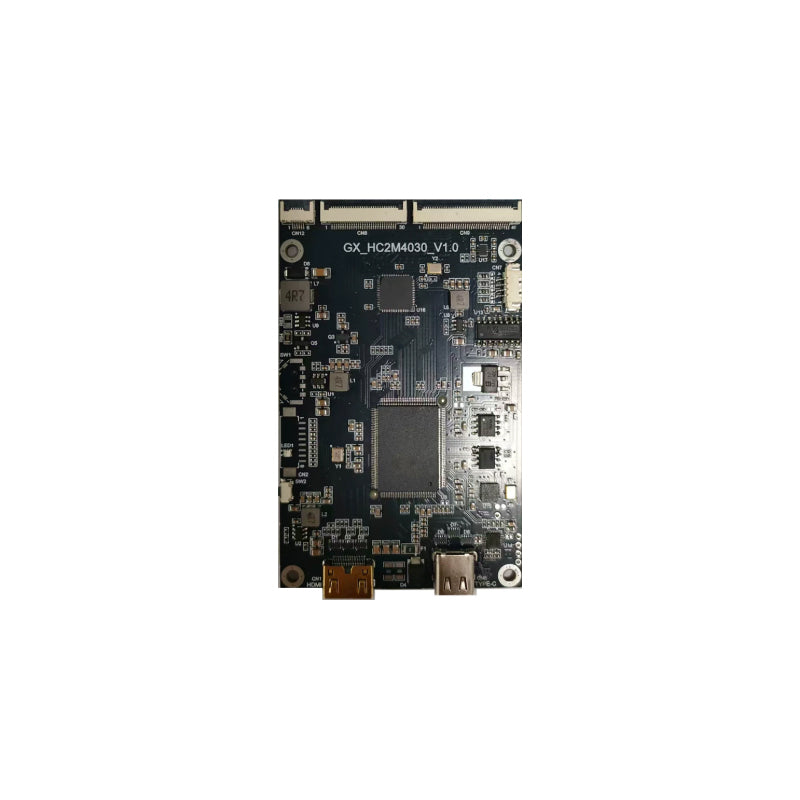

All-in-One USB-C driver board
ET070CR01-GX

Circular Display Application

Production and Manufacturing

Customization & Manufacturing

We support customize and manufacturing based on your requirements,look forward to your contact if you need mass production or design, quick technical support and competitive price will be provided.

Quality is constant

Diligence, processes, and attention to detail are at the core of our business. Our operational framework is built on the 4Cs:
four pillars of quality that underpin our role as the world’s leading display panel designer and manufacturer.

SHIPPING & DELIVERY FAQS

1. Where is my product ship from?
All of products are shipped from China/HK.

2. How long will it take for my order to arrive?
It depends on the shipping method you choose, if you have requirements for the delivery time, please choose the fastest delivery shipping method (DHL).

3. When my order will be shipped out?
Normally, displays take 2–5 days and the HDMI/Demo board takes 1–2 weeks because it needs to be fully tested and configured. If stock is sufficient, we will ship immediately.

4. What`re the function of HDMI board and demo board?
The HDMI board converts HDMI input into the panel's native signal (MIPI/eDP/LVDS), provides power rails and backlight control, it typically doesn`t have touch functionality unless the SKU indicates.
The demo board is a development tool for quickly lighting up and evaluating a display.
