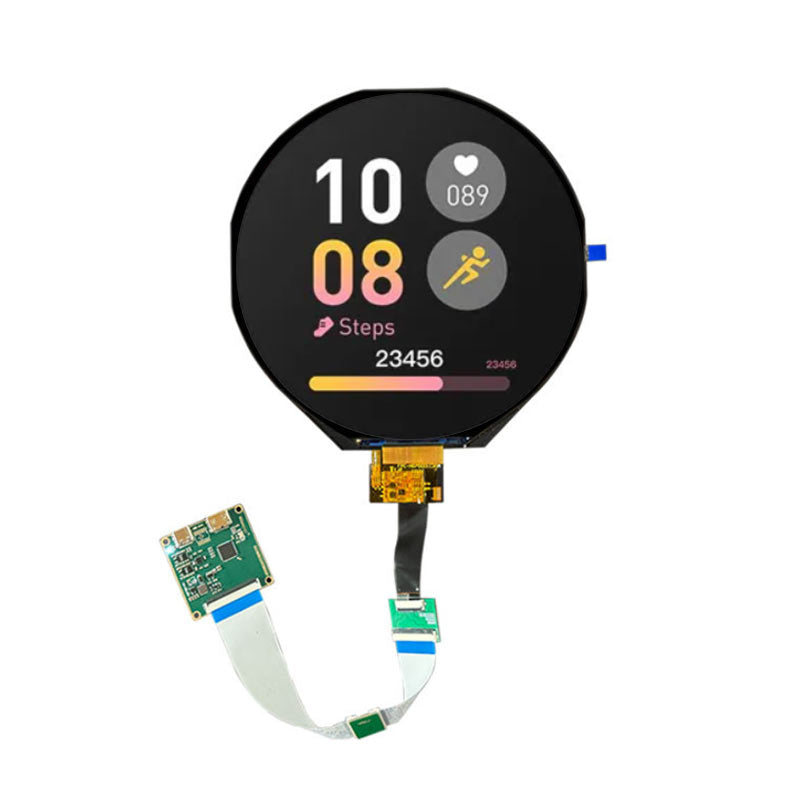

7 Inch TFT LCD Display 1080x1080 LVDS LED Backlit Sunlight Readable 800nits IPS Round LCD Display With Driver Board

7 Inch TFT LCD Display 1080x1080 LVDS LED Backlit Sunlight Readable 800nits IPS Round LCD Display With Driver Board

$108.58 USD
$108.58 USD
Sale Sold out
For product datasheet and technical support, welcome to contact us at support@youritech.com;
Regarding project mass production needs, please share the FORECAST to info@youritech.com for receiving volume discount pricing.
View full details

Product Introduction


7 Inch LCD Display Overview
ET070XRS-01 is a 7-inch IPS TFT LCD display featuring a 1080 × 1080 square resolution with LED backlight, designed for sunlight-readable applications. It delivers high brightness up to 800 nits and wide viewing angles of 85° in all directions, ensuring clear visibility and consistent image quality. The display has an active area of 177.47 × 177.47 mm and an outline dimension of 191.58 × 192.75 × 5.27 mm. With an LVDS interface and IPS display mode, ET070XRS-01 is suitable for stable and reliable operation in industrial and outdoor environments, supporting operating temperatures from 20 to 70 °C (storage −30 to 80 °C), and is supplied without touch functionality, integrated with a driver board.
7 Inch LCD Display  Specification

Part No. ET070XRS-01 Size 7 inch
Resolution 1080 × 1080 Display Mode IPS
Panel Interface LVDS Touch Panel No

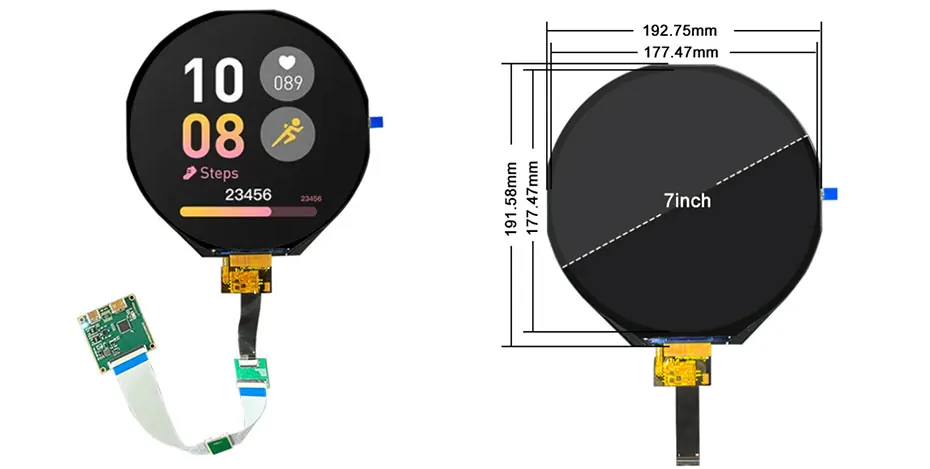

Outline Dimension 191.58 × 192.75 × 5.27 mm Active Area 177.47 × 177.47 mm
Viewing Angle (L/R/U/D) 85 / 85 / 85 / 85 Brightness 800 nits
Operation Temp. 20 ~ 70°C Storage Temp. 30 ~ 80°C
