8 Inch Flexible AMOLED Display 2480×1860 MIPI RM69380 On-Cell OLED Display

8 Inch Flexible AMOLED Display 2480×1860 MIPI RM69380 On-Cell OLED Display

$162.87 USD
$162.87 USD
Sale Sold out
ET080FL02-KT
For product datasheet and technical support, welcome to contact us at support@youritech.com;
Regarding project mass production needs, please share the FORECAST to info@youritech.com for receiving volume discount pricing.
View full details

Product Introduction


8 Inch AMOLED Display Overview

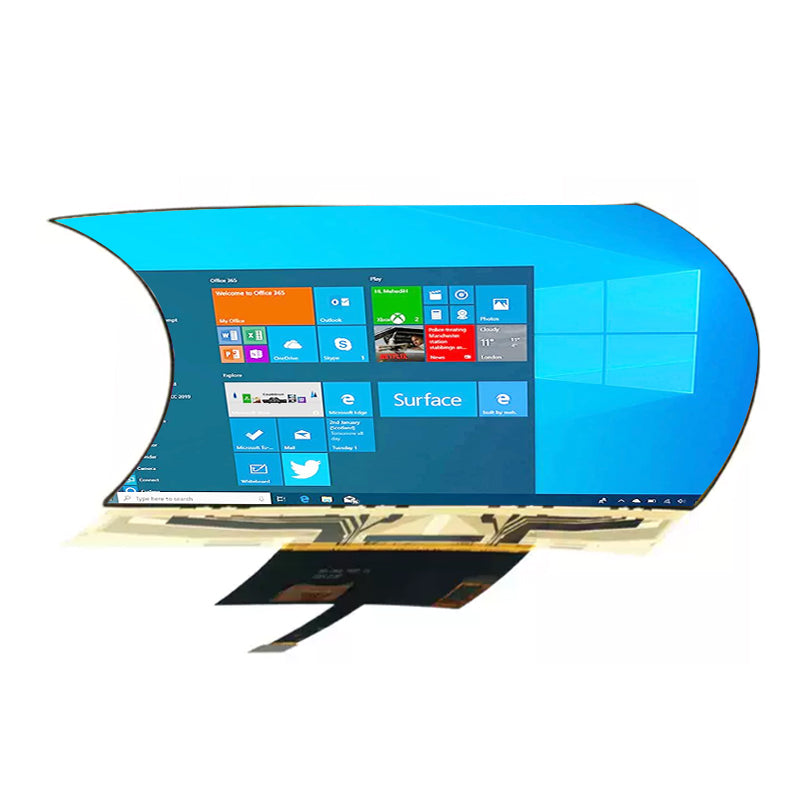

ET080FL02-KT is an 8-inch flexible AMOLED display featuring a 2480×1860 resolution and a MIPI interface. With a 99% color gamut and 16.7 million colors, this display delivers vivid colors, sharp details, and rich image quality. It offers a brightness of 600 cd/m², an ultra-high contrast ratio of 400,000:1, and full viewing angles for clear visuals from different directions. The flexible AMOLED panel has a slim profile, measuring 165.69 × 137.92 × 0.34 mm, with a display area of 162.69 × 122.02 mm. It integrates on-cell capacitive touch functionality, featuring an FT3881 touch controller and an IIC touch interface for responsive touch interaction. Driven by the RM69380 IC, the module uses a 40-pin plug-in connection and operates at 1.8 V. With a service life of 30,000 hours, a wide operating temperature range of -40°C to +80°C, and a storage temperature range of -40°C to +85°C, this 8-inch flexible AMOLED display is suitable for portable electronics, industrial equipment, and other applications requiring high-resolution visuals, integrated touch functionality, and reliable performance in demanding environments.

Model ET080FL02-KT 8 Inch Flexible AMOLED Display 2480×1860 MIPI RM69380 On-Cell OLED Display
Size 8.0" Touch Yes
Touch Type Capacitive touch Display Mode Flexible AMOLED
Display Colors 16.7M Color Gamut 99%
Response Time -- Resolution 2480x1860
Dot Pitch 0.065(H)*0.065(V) Viewing Angle All viewing angle
Driver IC RM69380 Outline Dimension 165.69*137.92*0.34mm
Active Area -- Dot Area 162.69*122.02mm
Brightness 600cd/m² Contrast Ratio 400000:1
Interface MIPI Pin Count 40
Pin Pitch -- Touch Interface IIC
Touch IC FT3881 Connection Type Plug-in type
Operating Voltage 1.8V Operating Life 30000h
Operating Temperature -40°C~+80°C Storage Temperature -40°C~+85°C


AMOLED Displays Technology

YOURITECH. Comprehensive Manufacturing of  Touchscreen, Driver Board Options

Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.

Youritech Production and Manufacturing



Customization & Manufacturing

We support customize and manufacturing based on your requirements,look forward to your contact if you need mass production or design, quick technical support and competitive price will be provided.

Quality is constant

Diligence, processes, and attention to detail are at the core of our business. Our operational framework is built on the 4Cs:
four pillars of quality that underpin our role as the world’s leading display panel designer and manufacturer.

SHIPPING & DELIVERY FAQS

1. Where is my product ship from?
All of products are shipped from China/HK.

2. How long will it take for my order to arrive?
It depends on the shipping method you choose, if you have requirements for the delivery time, please choose the fastest delivery shipping method (DHL).

3. When my order will be shipped out?
Normally, displays take 2–5 days and the HDMI/Demo board takes 1–2 weeks because it needs to be fully tested and configured. If stock is sufficient, we will ship immediately.

4. What`re the function of HDMI board and demo board?

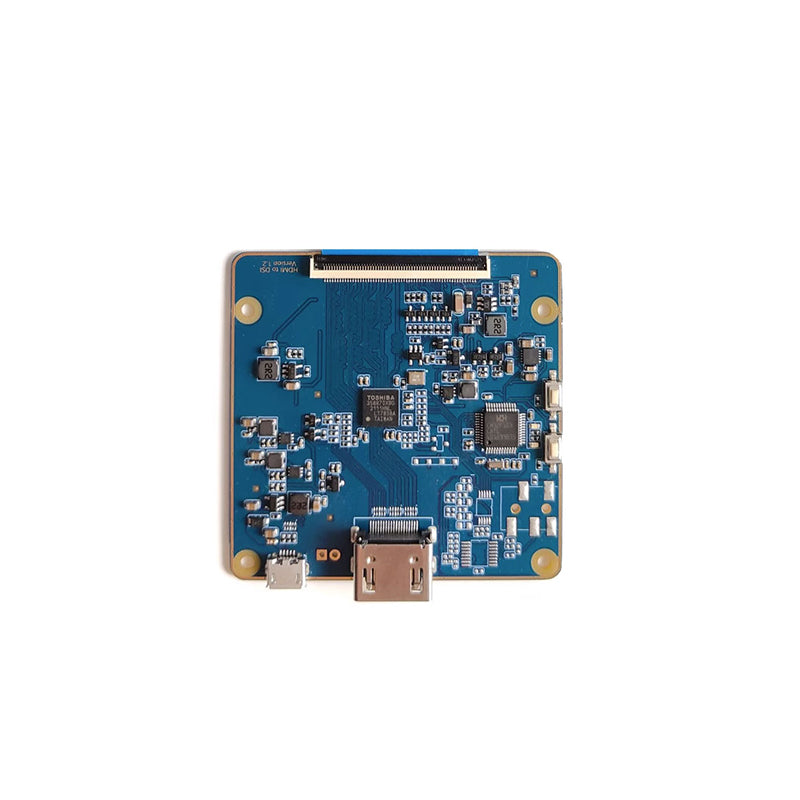

The HDMI board converts HDMI input into the panel's native signal (MIPI/eDP/LVDS), provides power rails and backlight control, it typically doesn`t have touch functionality unless the SKU indicates.
The demo board is a development tool for quickly lighting up and evaluating a display.
