8 Inch Flexible AMOLED Display 2480×1860 On-Cell Touch OLED Display with HDMI Board

8 Inch Flexible AMOLED Display 2480×1860 On-Cell Touch OLED Display with HDMI Board

$211.33 USD
$211.33 USD
Sale Sold out
ET080FL01-KTB
For product datasheet and technical support, welcome to contact us at support@youritech.com;
Regarding project mass production needs, please share the FORECAST to info@youritech.com for receiving volume discount pricing.
View full details

Product Introduction


8 Inch AMOLED Display Overview

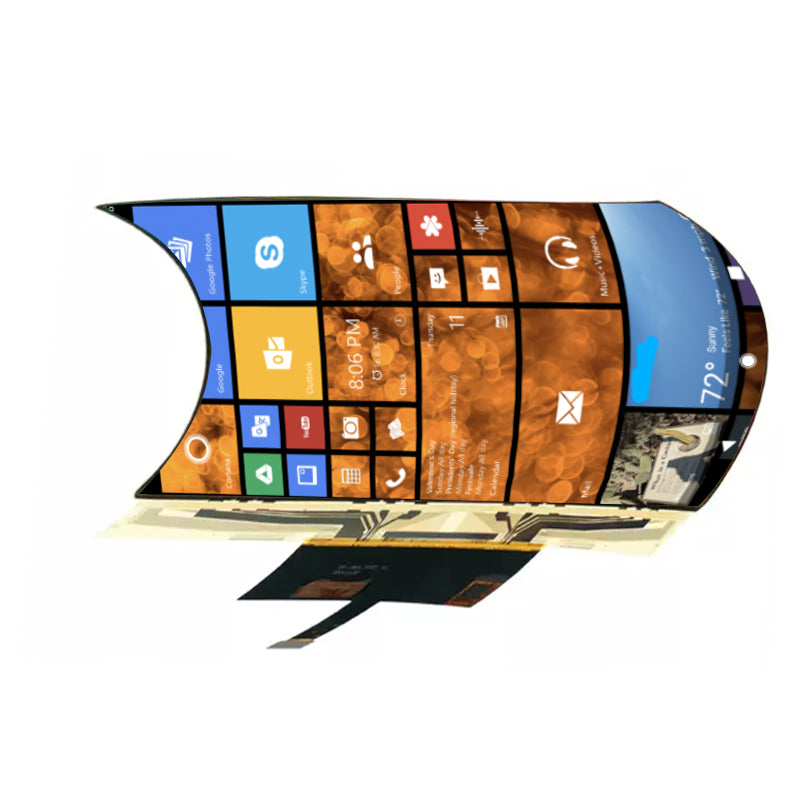

ET080FL01-KTB is an 8-inch flexible AMOLED display featuring a 2480×1860 resolution and an HDMI interface board for convenient integration with compatible host systems. With 16.7 million colors, a 99% color gamut, and a 400,000:1 contrast ratio, this display delivers vivid colors, sharp details, and deep blacks. Its 600 cd/m² brightness and full viewing angles provide clear, high-quality visuals from different viewing positions. The flexible AMOLED panel features a display area of 162.69 × 122.02 mm and an overall dimension of 165.69 × 137.92 × 13.60 mm, including the integrated board. It supports on-cell capacitive touch functionality, driven by the FT3881 touch controller, with a Micro USB touch interface for convenient touch connectivity. Powered by the RM69380 display driver IC, the module operates on a DC 12 V supply and offers a service life of 30,000 hours. It supports an operating temperature range of -20°C to +70°C and a storage temperature range of -30°C to +80°C. This 8-inch flexible AMOLED display with an HDMI board is suitable for embedded systems, portable devices, industrial applications, and multimedia projects requiring high-resolution visuals and integrated touch functionality.

Model ET080FL01-KTB 8 Inch Flexible AMOLED Display 2480×1860 On-Cell Touch OLED Display with HDMI Board
Size 8.0" Touch Yes
Touch Type Capacitive touch Display Mode Flexible AMOLED
Display Colors 16.7M Color Gamut 99%
Response Time -- Resolution 2480x1860
Dot Pitch 0.065(H)*0.065(V) Viewing Angle All viewing angle
Driver IC RM69380 Outline Dimension 165.69*137.92*13.60mm
Active Area -- Dot Area 162.69*122.02mm
Brightness 600cd/m² Contrast Ratio 400000:1
Interface HDMI Pin Count --
Pin Pitch -- Touch Interface Micro USB
Touch IC FT3881 Connection Type Plug-in type
Operating Voltage DC-12V Operating Life 30000h
Operating Temperature -20°C~+70°C Storage Temperature -30°C~+80°C

AMOLED Displays Technology

YOURITECH. Comprehensive Manufacturing of  Touchscreen, Driver Board Options

Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.

Youritech Production and Manufacturing



Customization & Manufacturing

We support customize and manufacturing based on your requirements,look forward to your contact if you need mass production or design, quick technical support and competitive price will be provided.

Quality is constant

Diligence, processes, and attention to detail are at the core of our business. Our operational framework is built on the 4Cs:
four pillars of quality that underpin our role as the world’s leading display panel designer and manufacturer.

SHIPPING & DELIVERY FAQS

1. Where is my product ship from?
All of products are shipped from China/HK.

2. How long will it take for my order to arrive?
It depends on the shipping method you choose, if you have requirements for the delivery time, please choose the fastest delivery shipping method (DHL).

3. When my order will be shipped out?
Normally, displays take 2–5 days and the HDMI/Demo board takes 1–2 weeks because it needs to be fully tested and configured. If stock is sufficient, we will ship immediately.

4. What`re the function of HDMI board and demo board?

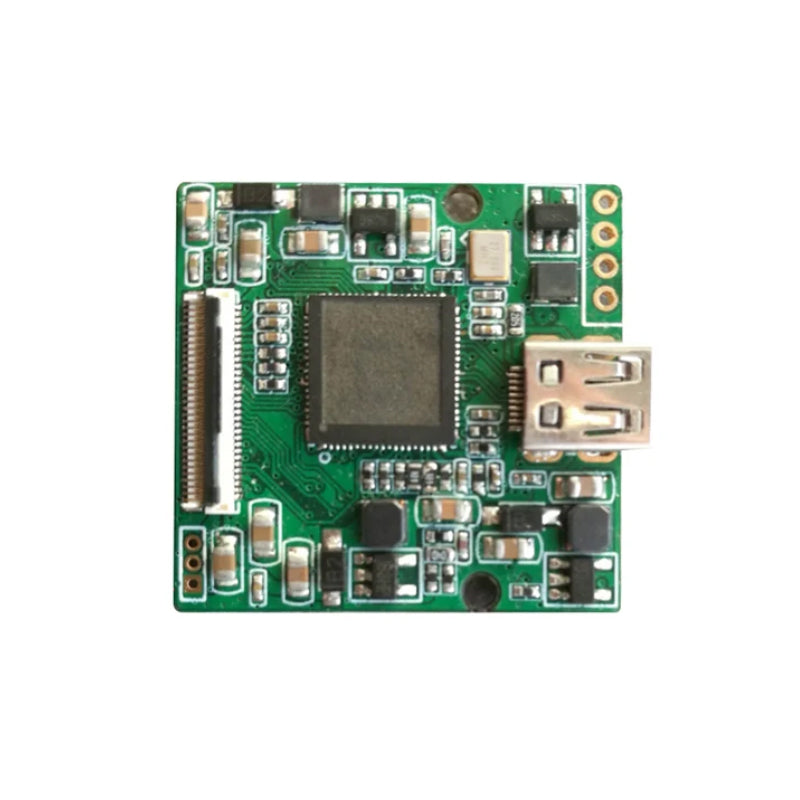

The HDMI board converts HDMI input into the panel's native signal (MIPI/eDP/LVDS), provides power rails and backlight control, it typically doesn`t have touch functionality unless the SKU indicates.
The demo board is a development tool for quickly lighting up and evaluating a display.
