8 Inch OLED Display 2480x1860 MIPI with On cell capacitive touch control flexible AMOLED

8 Inch OLED Display 2480x1860 MIPI with On cell capacitive touch control flexible AMOLED

$187.90 USD
$187.90 USD
Sale Sold out
ET080FL01-KT-a
For product datasheet and technical support, welcome to contact us at support@youritech.com;
Regarding project mass production needs, please share the FORECAST to info@youritech.com for receiving volume discount pricing.
View full details

Product Introduction


8 Inch AMOLED Display Overview

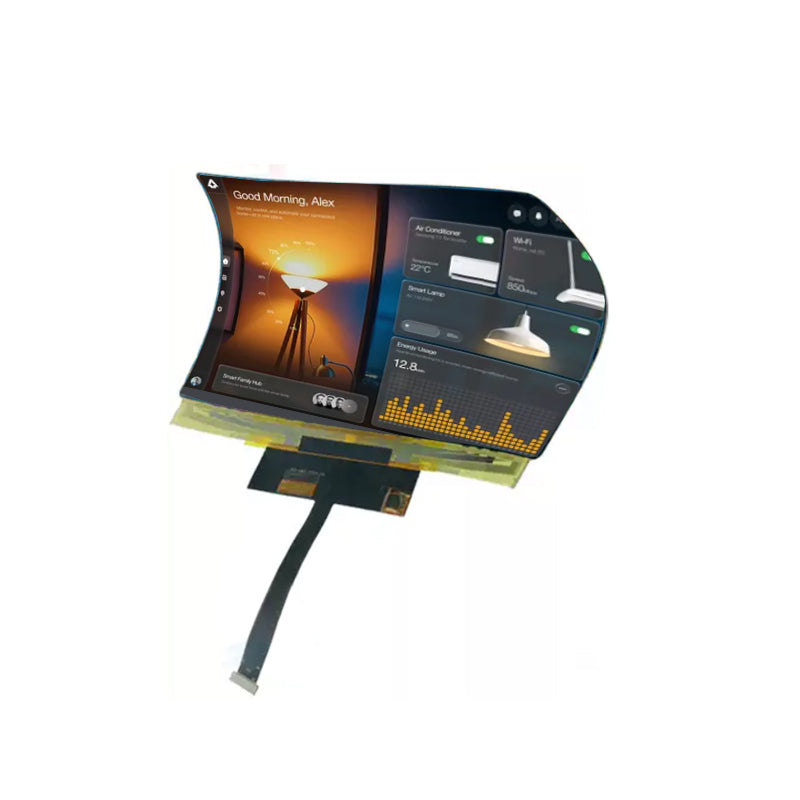

ET080FL01-KT-a is an 8.0-inch Flexible AMOLED display module featuring a high resolution of 2480 × 1860 pixels, delivering sharp images and detailed visual performance. It adopts flexible AMOLED technology with a capacitive touchscreen, making it suitable for advanced portable devices and embedded display applications. In terms of mechanical specifications, the module features an active area of 162.69(W) × 122.02(H) mm and an outline dimension of 165.69(W) × 137.92(H) × 0.34(D) mm, with a pixel pitch of 0.065(H) × 0.065(V) mm.ET080FL01-KT-a provides a typical brightness of 600 cd/m² and a contrast ratio of 400000:1, delivering high contrast and vivid image quality. It supports 16.7M colors with a 99% color gamut and a full viewing angle for consistent visual performance from different viewing directions. As a self-emissive display, Flexible AMOLED technology offers rich colors and deep blacks in an ultra-thin form factor. The module utilizes an MIPI interface for display signal input and features a 40-pin plug-in connector. It operates at a typical voltage of 1.8V and incorporates an RM69380 display driver IC. The integrated capacitive touch panel uses an IIC interface with an FT3881 touch controller. ET080FL01-KT-a has a typical service life of 30,000 hours, an operating temperature range of -40°C to +80°C, and a storage temperature range of -40°C to +85°C.


Product Specifications – ET080FL01-KT-a
Parameter Specification Parameter Specification
Model Number ET080FL01-KT-a Display Size 8.0 inch
Display Technology Flexible AMOLED Resolution 2480 × 1860 pixels
Display Colors 16.7M Color Gamut 99%
Viewing Angle Full Viewing Angle Brightness 600 cd/m²
Contrast Ratio 400000:1 Pixel Pitch 0.065(H) × 0.065(V) mm
Active Area 162.69 × 122.02 mm Outline Dimensions 165.69 × 137.92 × 0.34 mm
Display Driver IC RM69380 Display Interface MIPI
Pin Count 40 pins Connector Type Plug-in
Touch Function Yes Touch Technology Capacitive Touchscreen
Touch Interface IIC Touch Controller IC FT3881
Operating Voltage 1.8 V Service Life 30,000 hours
Operating Temperature -40°C to +80°C Storage Temperature -40°C to +85°C



AMOLED Displays Technology

YOURITECH. Comprehensive Manufacturing of  Touchscreen, Driver Board Options

Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.

Youritech Production and Manufacturing



Customization & Manufacturing

We support customize and manufacturing based on your requirements,look forward to your contact if you need mass production or design, quick technical support and competitive price will be provided.

Quality is constant

Diligence, processes, and attention to detail are at the core of our business. Our operational framework is built on the 4Cs:
four pillars of quality that underpin our role as the world’s leading display panel designer and manufacturer.

SHIPPING & DELIVERY FAQS

1. Where is my product ship from?
All of products are shipped from China/HK.

2. How long will it take for my order to arrive?
It depends on the shipping method you choose, if you have requirements for the delivery time, please choose the fastest delivery shipping method (DHL).

3. When my order will be shipped out?
Normally, displays take 2–5 days and the HDMI/Demo board takes 1–2 weeks because it needs to be fully tested and configured. If stock is sufficient, we will ship immediately.

4. What`re the function of HDMI board and demo board?
The HDMI board converts HDMI input into the panel's native signal (MIPI/eDP/LVDS), provides power rails and backlight control, it typically doesn`t have touch functionality unless the SKU indicates.
The demo board is a development tool for quickly lighting up and evaluating a display.
