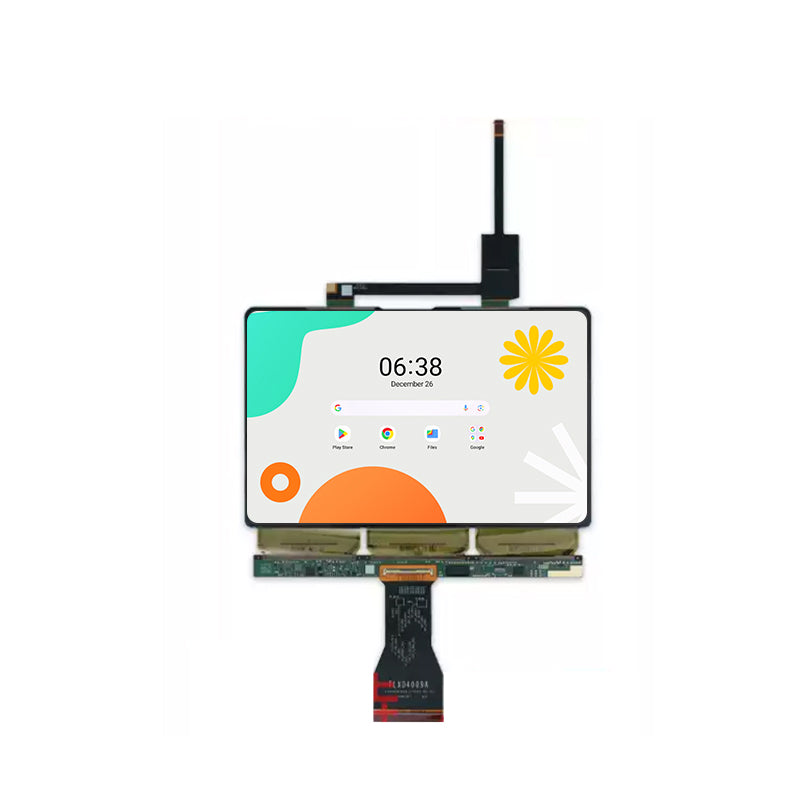

9.06 Inch AMOLED Display 2400×1504 LTPS eDP OLED Display with On-Cell Touch

9.06 Inch AMOLED Display 2400×1504 LTPS eDP OLED Display with On-Cell Touch

$286.50 USD
$286.50 USD
Sale Sold out
ET090AM01-KT
For product datasheet and technical support, welcome to contact us at support@youritech.com;
Regarding project mass production needs, please share the FORECAST to info@youritech.com for receiving volume discount pricing.
View full details

Product Introduction


9.06 Inch AMOLED Display Overview
ET090AM01-KT is a 9.06-inch LTPS AMOLED display featuring a resolution of 2400×1504, delivering sharp images and fine details. As for mechanical details, it features a dot matrix area of 195.05(W)×122.23(H) mm and an outline size of 200.11(W)×127.16(H)×1.04(D) mm. ET090AM01-KT provides 650 cd/m² display brightness, an ultra-high contrast ratio of 1,000,000:1, full viewing angles, and a fast response time of 1 ms. With a 101% color gamut and support for 10-bit RGB input, this display delivers vivid colors and smooth tonal transitions. This product utilizes LTPS AMOLED technology with an On-Cell touch structure, combining high-quality visuals with integrated touch functionality. ET090AM01-KT uses an eDP 1.4b interface for signal transmission and features three HX83211-A driver ICs. It operates at 3.3V and supports an operating temperature range of -10°C to +60°C and a storage temperature range of -30°C to +70°C. With a rated lifetime of 30,000 hours, this display is suitable for portable electronics, compact monitors, and other applications requiring high resolution, high contrast, and responsive touch performance.

Model ET090AM01-KT  9.06 Inch AMOLED Display 2400×1504 LTPS eDP OLED Display with On-Cell Touch
Display Mode AMOLED Display Color RGB 10bit input
Color Gamut 101% Response Time 1ms
Resolution 2400x1504 Viewing Angle All viewing angle
Driver IC HX83211-A*3 Outline Dimension 200.11*127.16*1.04mm
Dot Area 195.05*122.23mm Brightness 650cd/m²
Contrast Ratio 1000000:1 Interface eDP1.4b
Connection Type Solder type Operating Voltage 3.3V
Operating Life 30000h Operating Temperature -10℃~+60℃
Storage Temperature -30℃~+70℃


AMOLED Displays Technology

YOURITECH. Comprehensive Manufacturing of  Touchscreen, Driver Board Options

Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.

Youritech Production and Manufacturing



Customization & Manufacturing

We support customize and manufacturing based on your requirements,look forward to your contact if you need mass production or design, quick technical support and competitive price will be provided.

Quality is constant

Diligence, processes, and attention to detail are at the core of our business. Our operational framework is built on the 4Cs:
four pillars of quality that underpin our role as the world’s leading display panel designer and manufacturer.

SHIPPING & DELIVERY FAQS

1. Where is my product ship from?
All of products are shipped from China/HK.

2. How long will it take for my order to arrive?
It depends on the shipping method you choose, if you have requirements for the delivery time, please choose the fastest delivery shipping method (DHL).

3. When my order will be shipped out?
Normally, displays take 2–5 days and the HDMI/Demo board takes 1–2 weeks because it needs to be fully tested and configured. If stock is sufficient, we will ship immediately.

4. What`re the function of HDMI board and demo board?
The HDMI board converts HDMI input into the panel's native signal (MIPI/eDP/LVDS), provides power rails and backlight control, it typically doesn`t have touch functionality unless the SKU indicates.
The demo board is a development tool for quickly lighting up and evaluating a display.
