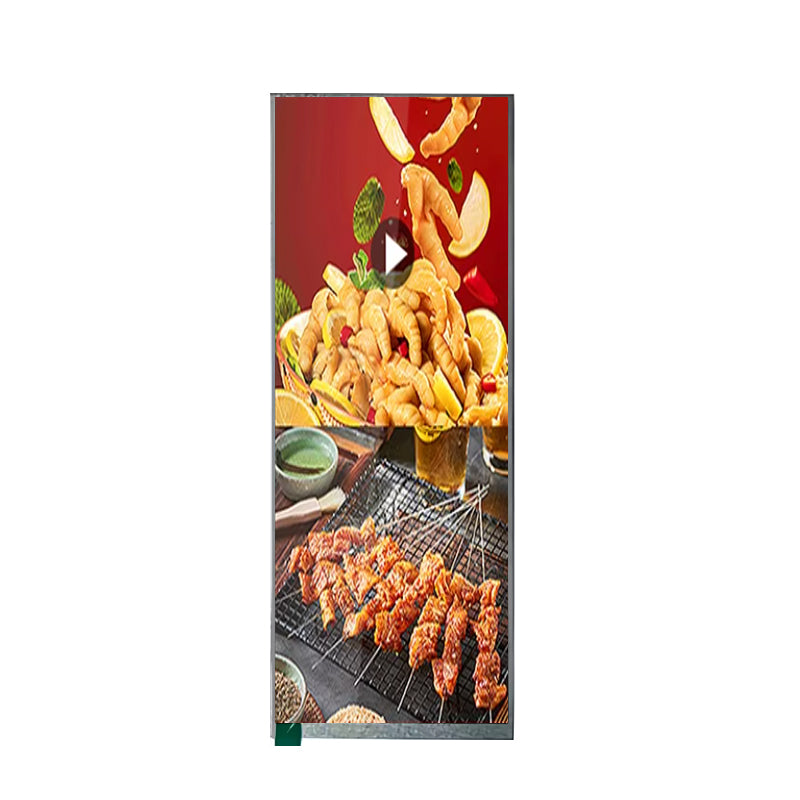

9.3 Inch Stretched LCD Display IPS 600×1600 40-Pin MIPI Bar Display with Touch & HDMI Driver Board

9.3 Inch Stretched LCD Display IPS 600×1600 40-Pin MIPI Bar Display with Touch & HDMI Driver Board

$31.70 USD
$31.70 USD
Sale Sold out
9.3 Inch Bar Displays Solution
For product datasheet and technical support, welcome to contact us at support@youritech.com;
Regarding project mass production needs, please share the FORECAST to info@youritech.com for receiving volume discount pricing.
View full details

Product Introduction

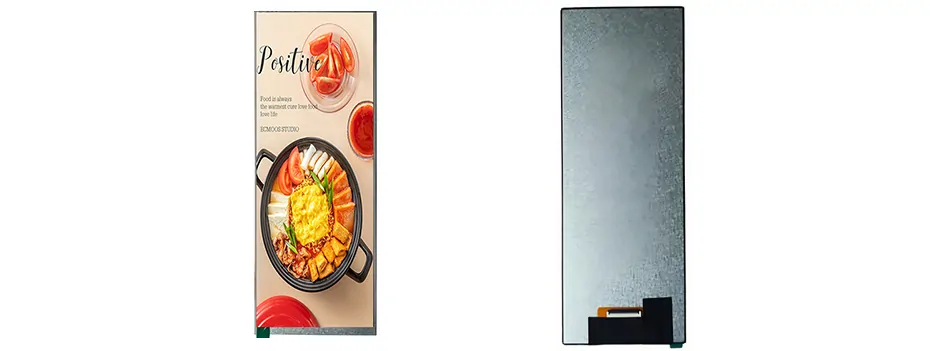

9.3 Inch Stretched Bar Display Overview
AV093SKQ-N80-5QP0 is a 9.3-inch diagonal IPS stretched LCD display screen product. AV093SKQ-N80-5QP0 supports a display resolution of 600×1600 with a 40-Pin MIPI interface and Normally Black display mode. It features an outline size of 89(W)×231(H)×4.6(D) mm and supports a wide viewing angle in all directions (L/R/U/D). AV093SKQ-N80-5QP0 provides 750 cd/m² display brightness and supports an operating temperature range of -20°C to 70°C. It can be equipped with a touch panel and an HDMI driver board, making it suitable for stretched bar displays, secondary monitors, embedded displays, and other applications requiring a long-form display solution.
9.3 Inch Stretched LCD Display IPS 600×1600 40-Pin MIPI Bar Display with Touch & HDMI Driver Board 9.3 Inch Stretched Bar Display Drawing
9.3 Inch Stretched LCD Display IPS 600×1600 40-Pin MIPI Bar Display with Touch & HDMI Driver Board

9.3 Inch Stretched Bar Display  Specification

Part No. AV093SKQ-N80-5QP0 Size 9.3″ inch
Resolution 600 × 1600 Panel Interface 40-Pin MIPI
Display Mode Normally Black Outline Dimension 89 × 231 × 4.6 mm
Active Area / Viewing Angle L/R/U/D ALL
Brightness 750nits Operation / Storage Temp -20~70°C / /
Touch Yes

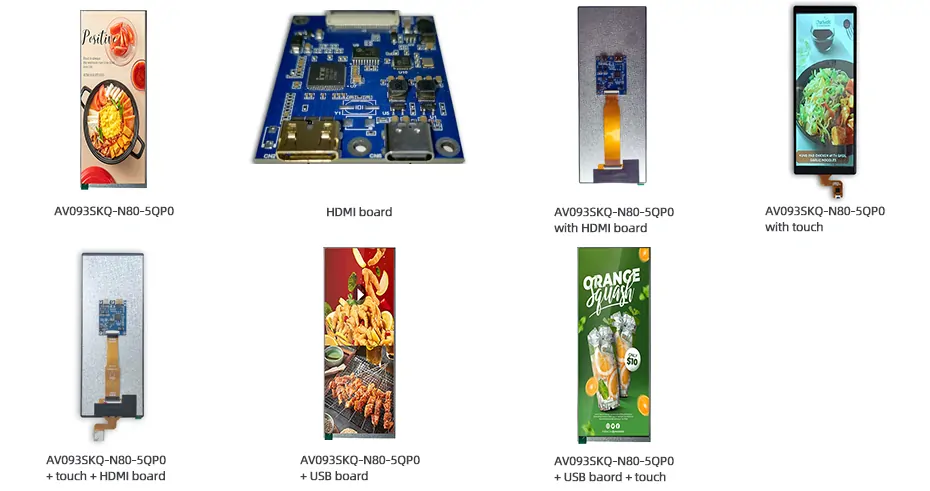

9.3 Inch Bar Displays Solution For Reference

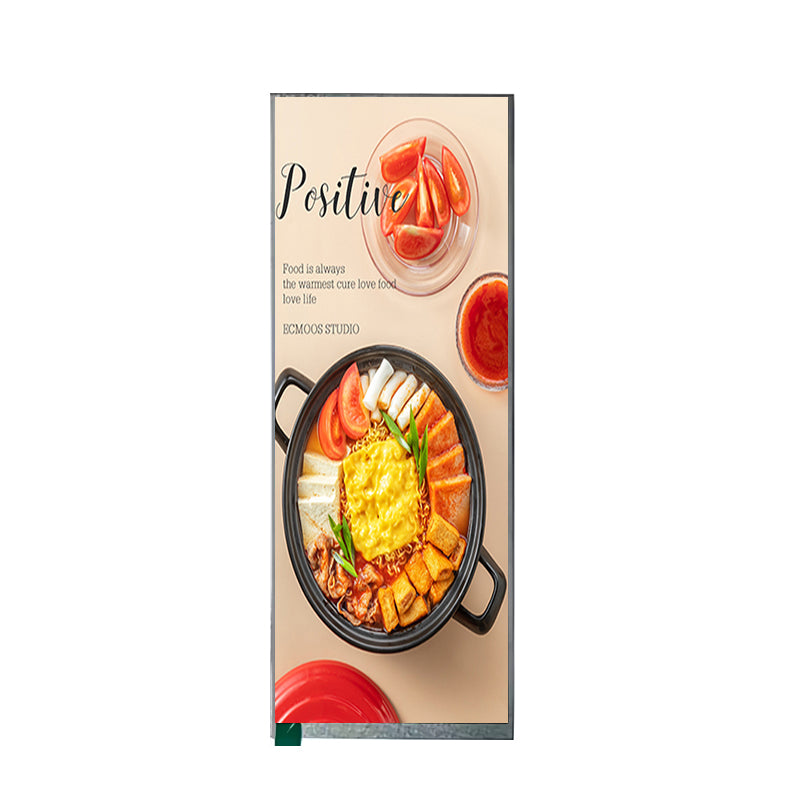

AV093SKQ-N80-5QP0

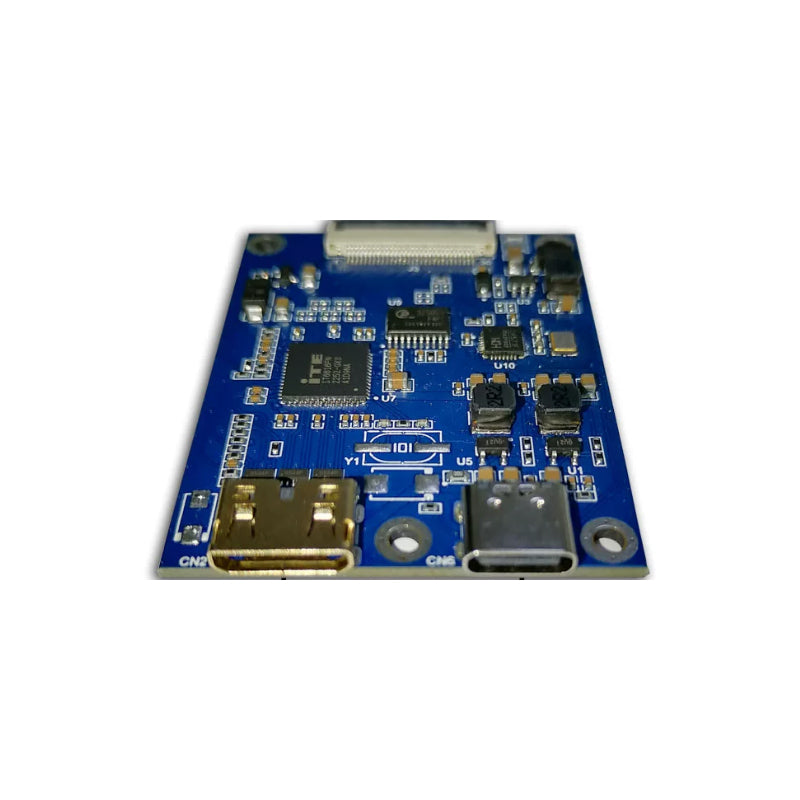

HDMI board

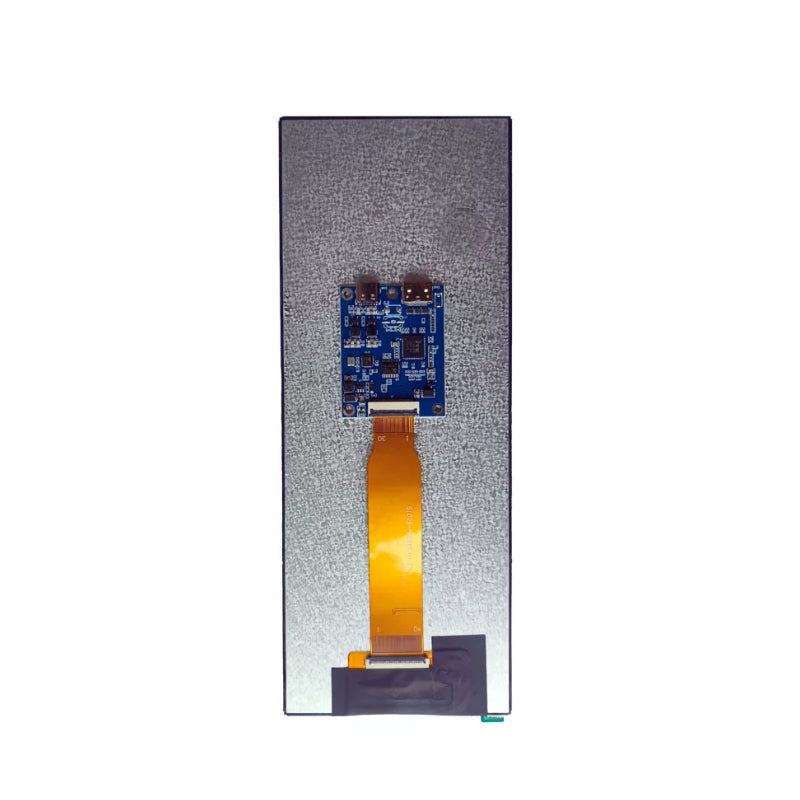

AV093SKQ-N80-5QP0 with HDMI board

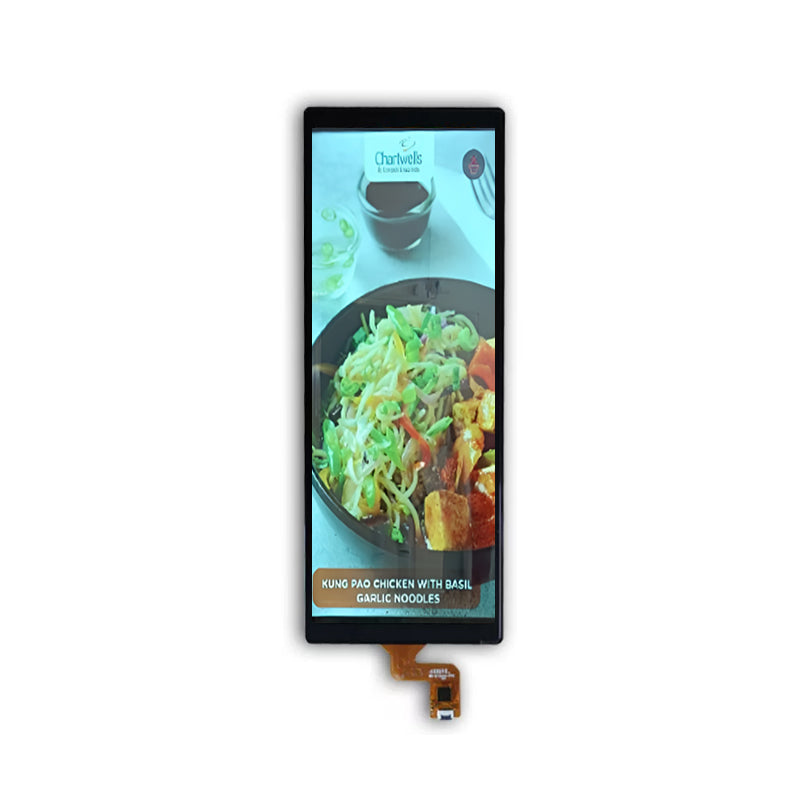

AV093SKQ-N80-5QP0 with touch

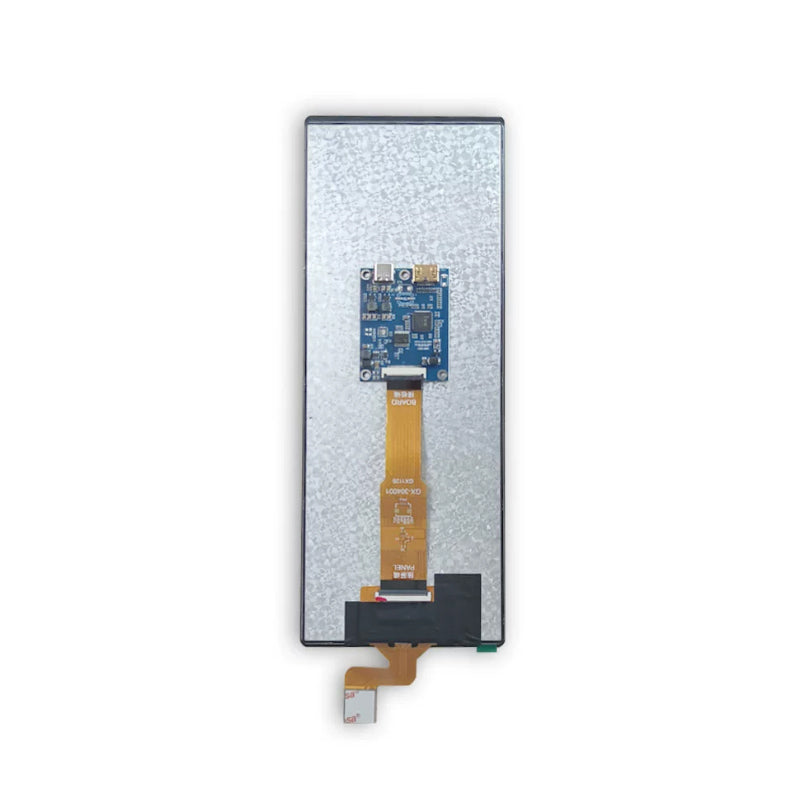

AV093SKQ-N80-5QP0 + touch + HDMI board
AV093SKQ-N80-5QP0 + USB board

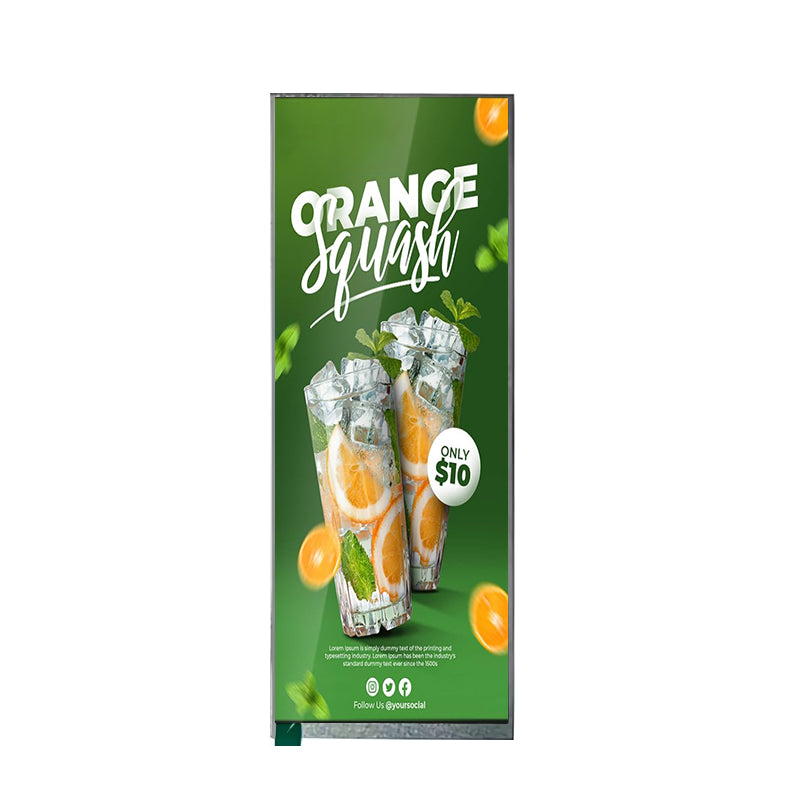

AV093SKQ-N80-5QP0 + USB baord + touch
