AMS326PM01 3.26 Inch OLED 854x480 RGB/SPI Interface Amoled Display

AMS326PM01 3.26 Inch OLED 854x480 RGB/SPI Interface Amoled Display

$43.16 USD
$49.04 USD $43.16 USD
Sale Sold out
For product datasheet and technical support, welcome to contact us at support@youritech.com;
Regarding project mass production needs, please share the FORECAST to info@youritech.com for receiving volume discount pricing.
View full details

Product Introduction

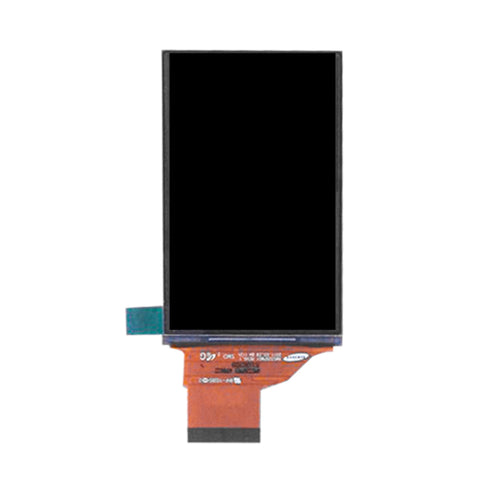

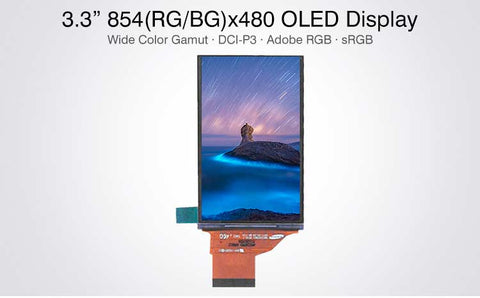

AMS326PM01 Original 3.26 Inch OLED 854x480 RGB/SPI Interface Amoled Display

Product size
3.3-inch
Type
AM-OLED , OLED
Pixel Format
854(RG/BG)×480 [FWVGA] 245PPI
Configuration
RG/BG PenTile
Active Area
72.16(H)×40.56(V) mm

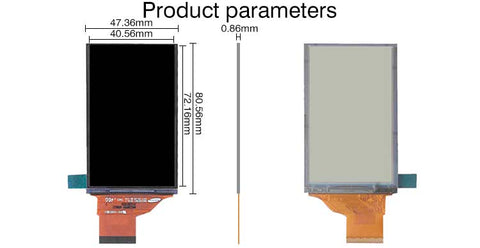

Outline Dim.
80.56(H)×47.36(V) ×0.86(D) mm
Bezel Area
-
Treatment
Glare (Haze 0%), Hard coating
Luminance
300 cd/m² (Typ.)
Contrast Ratio
10000:1 (Typ.) (TM)
View Direction
Symmetry
Response Time
1 (Max.)(Tr+Td)
Viewing Angle
80/80/80/80 (Typ.)(CR≥200)
Operating Mode
-
Support Color
16.7M 106% NTSC
Light Source
self
Weight
-
Designed For
Digital Still Camera
Frequency
60Hz
Touch Panel
Without
D-IC Detail
Built-in D53E6EA8805
Interface Type
Parallel RGB (1 ch, 8-bit) + SPI 61 pins FPC
Power Supply
1.8/3.0/3.0V (Typ.)(VCCIO1/VCCIO2/VCI)
Environment
Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C

Customization & Manufacturing

We support customize and manufacturing based on your requirements,look forward to your contact if you need mass production or design, quick technical support and competitive price will be provided.

Quality is constant

Diligence, processes, and attention to detail are at the core of our business. Our operational framework is built on the 4Cs:
four pillars of quality that underpin our role as the world’s leading display panel designer and manufacturer.

SHIPPING & DELIVERY FAQS

1. Where is my product ship from?
All of products are shipped from China/HK.

2. How long will it take for my order to arrive?
It depends on the shipping method you choose, if you have requirements for the delivery time, please choose the fastest delivery shipping method (DHL).

3. When my order will be shipped out?
Normally, displays take 2–5 days and the HDMI/Demo board takes 1–2 weeks because it needs to be fully tested and configured. If stock is sufficient, we will ship immediately.

4. What`re the function of HDMI board and demo board?
The HDMI board converts HDMI input into the panel's native signal (MIPI/eDP/LVDS), provides power rails and backlight control, it typically doesn`t have touch functionality unless the SKU indicates.
The demo board is a development tool for quickly lighting up and evaluating a display.
