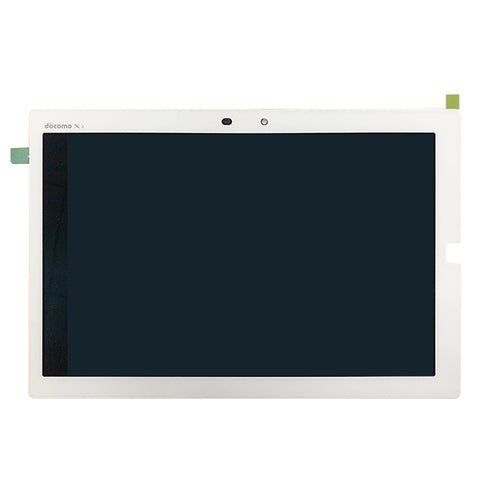

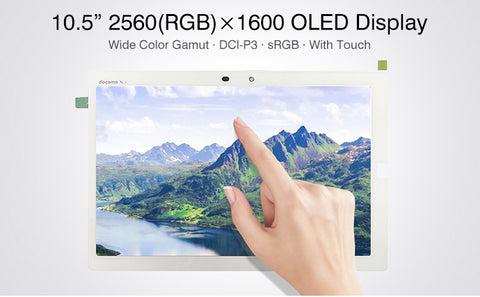

AMSA05BV09 10.5 inch 2K AMOLED 2560x1600 MIPI 4 lane OLED Display

AMSA05BV09 10.5 inch 2K AMOLED 2560x1600 MIPI 4 lane OLED Display

Regular price $164.00 USD
Regular price $200.00 USD Sale price $164.00 USD
Sale Sold out


AMSA05BV09 Original 10.5 inch 2K AMOLED 2560x1600 MIPI 4 lane OLED Display

LCD SPECIFICATION

Screen Size

10.5 inch

Screen Type

OLED

Pixel Number

2560(RGB)×1600

Arrangement

RGB S-Vertical Stripe

Active Area(mm)

 226.56 × 141.6 mm

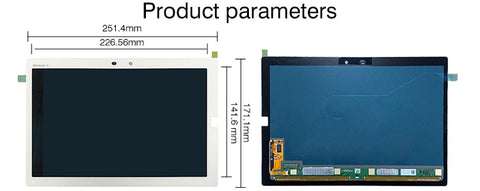

Outline(mm)

251.4 × 171.1 mm

Viewing Area(mm)

228.06*143.1 mm

Treatment

/

Luminance

270 cd/m² (Typ.)

Contrast Ratio

 54000 : 1 (Typ.) (TM)

Viewing Angle

/

Response

/

Good View at

Symmetry

 Work Mode

/

Color Depth

16.7M

 Backlight

/

Outline Shape

/

Used for

/

Refresh Rate

/

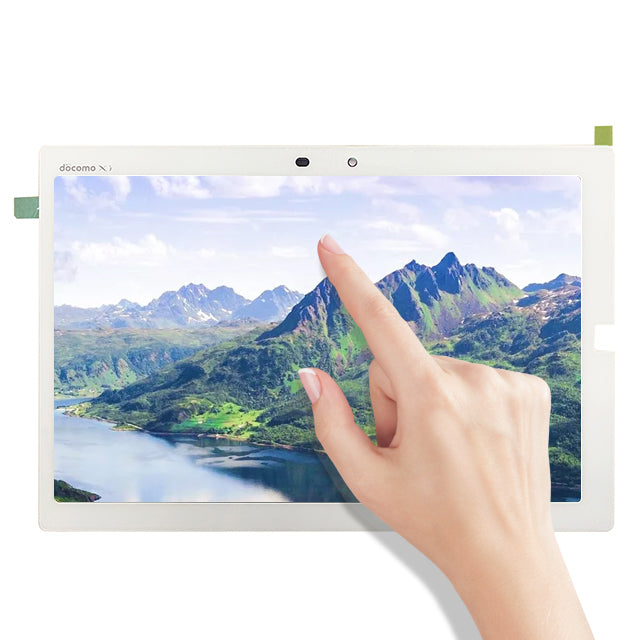

Touchscreen

YES

Signal Type

MIPI 4 Lanes , 80 pins

Voltage Supply

/

Max. Ratings

/

For product datasheet and technical support, welcome to contact us at support@youritech.com;
We support customize and manufacturing based on your requirements,look forward to your contact if you need mass production or design, quick technical support and competitive price will be provided.
