AT056TN53 V.1 5.6 Inch 640*480 40 Pins LCD Screen

AT056TN53 V.1 5.6 Inch 640*480 40 Pins LCD Screen

$52.80 USD
$60.00 USD $52.80 USD
Sale Sold out
For product datasheet and technical support, welcome to contact us at support@youritech.com;
Regarding project mass production needs, please share the FORECAST to info@youritech.com for receiving volume discount pricing.
View full details

Product Introduction

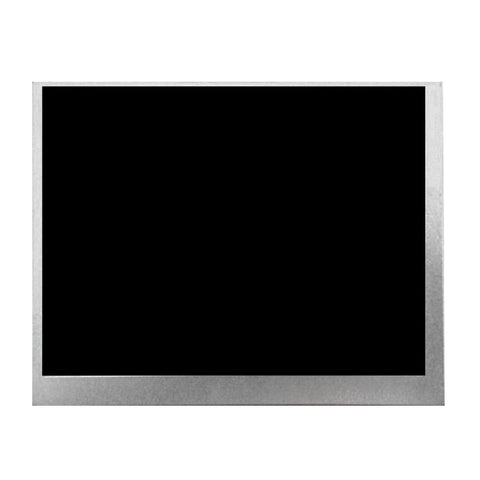

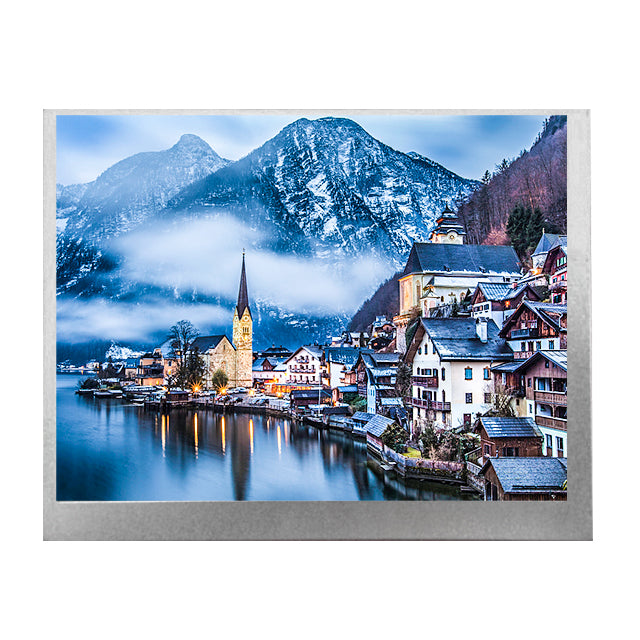

AT056TN53 V.1 Original 5.6 Inch 640*480 40 Pins LCD Screen

Product size

5.6-inch

Type

LCM , a-Si TFT-LCD

Pixel Format

640(RGB)×480 (VGA) 143PPI

Configuration

RGB Vertical Stripe

Active Area

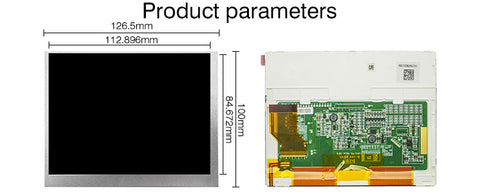

112.896 × 84.672 (H×V)

Outline Dim.

126.5 × 100 (H×V×D)

Bezel Area

115.90 × 87.67 (H×V)

Treatment

Antiglare

Luminance

350 (Typ.)(cd/m²)

Contrast Ratio

500 : 1 (Typ.) (TM)

View Direction

6 o'clock

Response Time

10/15 (Typ.)(Tr/Td) ms

Viewing Angle

70/70/50/70 (Typ.)(CR≥10)

Operating Mode

TN, Normally White, Transmissive

Support Color

262K 50% NTSC

Light Source

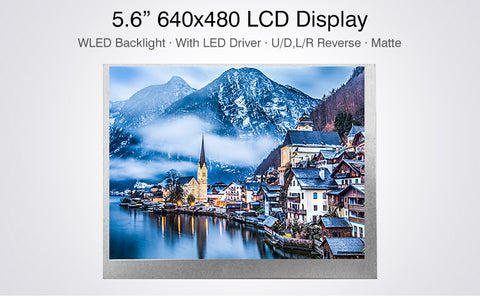

WLED , 20K hours , With LED Driver

Weight

83.1g (Typ.)

Designed For

Industrial Digital Photo Frame Video Door Phone VOIP Phone

Frequency

60Hz

Touch Panel

Without

Interface Type

Parallel RGB (1 ch, 6-bit) , 40 pins FPC

Power Supply

3.3V (Typ.)(VCC)

Environment

Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C

Customization & Manufacturing

We support customize and manufacturing based on your requirements,look forward to your contact if you need mass production or design, quick technical support and competitive price will be provided.
