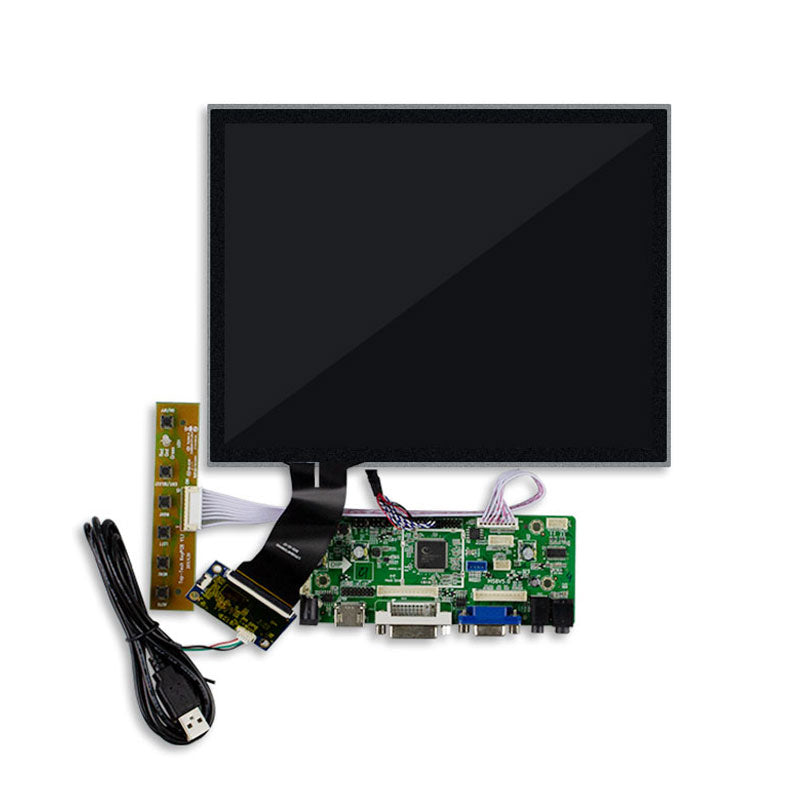

AT070TN92 Innolux 7 Inch 800x480 TFT LCD Display Parallel RGB (1 ch, 6/8-bit) LCD Screen With Touch Drive Board

AT070TN92 Innolux 7 Inch 800x480 TFT LCD Display Parallel RGB (1 ch, 6/8-bit) LCD Screen With Touch Drive Board

$33.70 USD
$33.70 USD
Sale Sold out
样式
For product datasheet and technical support, welcome to contact us at support@youritech.com;
Regarding project mass production needs, please share the FORECAST to info@youritech.com for receiving volume discount pricing.
View full details

Product Introduction

Overview

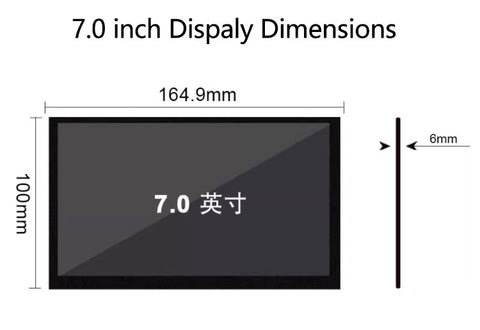

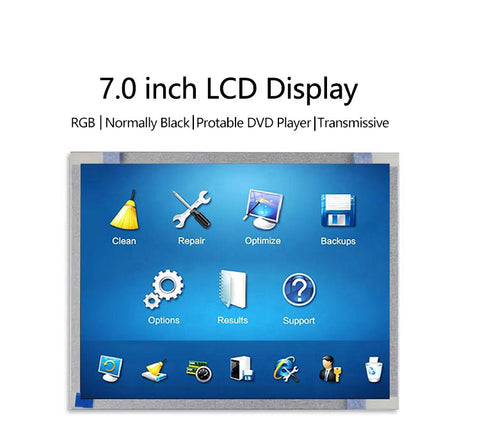

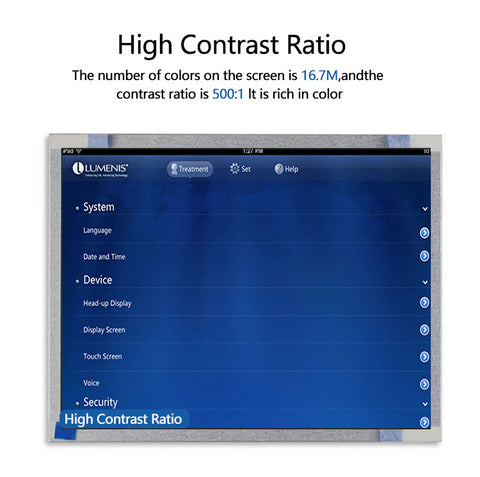

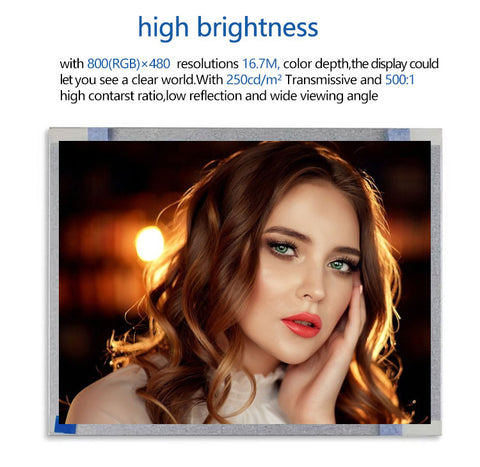

AT070TN92 is a 7.0 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, without backlight driver, without touch screen.,AT070TN92 supports display 800(RGB)×480 (WVGA) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. It features active area of 154.08(W)×85.92(H) mm, outline size of 164.9(W)×100(H)×6(D) mm, viewing area size of 156.7(W)×89.1(H) mm, with surface treament of Antiglare, net weight of 150g (Typ.). As a TN, Normally White, Transmissive LCM product, AT070TN92 can provides 250 cd/m² display brightness 500:1 transimissive contrast ratio, 70/70/50/70 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 10/15 (Typ.)(Tr/Td) ms.

Feature
-U/D,L/R Reverse
-Wide temperature range
-Support Color:262K/16.7M (6-bit / 6-bit + Dithering)
-WLED Backlight

Screen Size:7 inch
Resolution:800x480
Brand: Innolux
7 Inch 800x480 TFT LCD Display With Touch Drive Board

What's included in the package ?
AT070TN92 LCD
AT070TN92 LCD With Drive Board

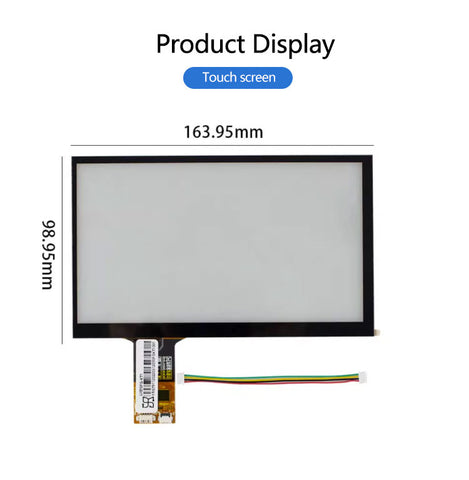

AT070TN92 LCD+Touch+Drive Board

Application

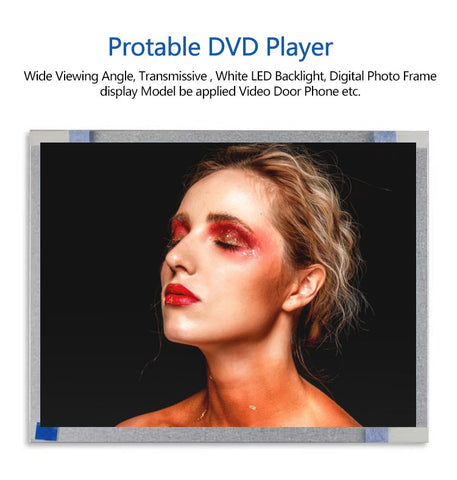

For Digital Photo Frame or Industrial LCD

Datasheet & Technical Support
For product datasheet and technical support, welcome to contact us at support@youritech.com;
We support customize and manufacturing based on your requirements,look forward to your contact if you need mass production or design, quick technical support and competitive price will be provided.


More Product Pictures

Customization & Manufacturing

We support customize and manufacturing based on your requirements,look forward to your contact if you need mass production or design, quick technical support and competitive price will be provided.

Quality is constant

Diligence, processes, and attention to detail are at the core of our business. Our operational framework is built on the 4Cs:
four pillars of quality that underpin our role as the world’s leading display panel designer and manufacturer.

SHIPPING & DELIVERY FAQS

1. Where is my product ship from?
All of products are shipped from China/HK.

2. How long will it take for my order to arrive?
It depends on the shipping method you choose, if you have requirements for the delivery time, please choose the fastest delivery shipping method (DHL).

3. When my order will be shipped out?
Normally, displays take 2–5 days and the HDMI/Demo board takes 1–2 weeks because it needs to be fully tested and configured. If stock is sufficient, we will ship immediately.

4. What`re the function of HDMI board and demo board?

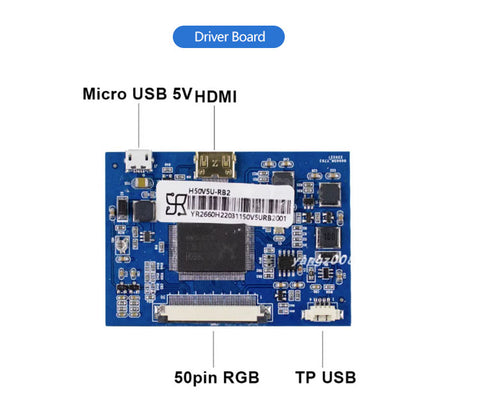

The HDMI board converts HDMI input into the panel's native signal (MIPI/eDP/LVDS), provides power rails and backlight control, it typically doesn`t have touch functionality unless the SKU indicates.
The demo board is a development tool for quickly lighting up and evaluating a display.
