AUO B101QAN01.0 MIPI Interface 10.1 inch 2K TFT 1600x2560 LCD Display Module

AUO B101QAN01.0 MIPI Interface 10.1 inch 2K TFT 1600x2560 LCD Display Module

$33.44 USD
$38.00 USD $33.44 USD
Sale Sold out
For product datasheet and technical support, welcome to contact us at support@youritech.com;
Regarding project mass production needs, please share the FORECAST to info@youritech.com for receiving volume discount pricing.
View full details

Product Introduction


AUO B101QAN01.0 MIPI Interface 10.1 inch 2K TFT 1600x2560 LCD Display Module

Product size
10.1-inch
Type
a-Si TFT-LCD, LCM
Pixel Format
1600(RGB)×2560, WQXGA, 300PPI
Configuration
RGB Vertical Stripe

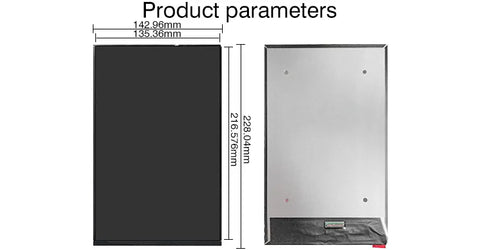

Active Area
135.36(W)×216.576(H) mm
Outline Dim.
142.96(W)×228.04(H)×3.9(D) mm
Brightness
 400 cd/m² (Typ.)
Treatment
mirror plane (Haze 0%)
Weight
120g (Max.)
Contrast Ratio
800:1
Viewing Angle
85/85/85/85 (Typ.)(CR≥10)
Operating Mode
AHVA,Transmissive/Normally Black
Frequency
60Hz
Touch Panel
With/Without CTP
Interface Type
61 pins MIPI (2 ch, 4 data lanes)
Power Supply
1.8/5.6/-5.6V (Typ.)(IOVCC/VSP/VSN)
Environment
Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C

Customization & Manufacturing

We support customize and manufacturing based on your requirements,look forward to your contact if you need mass production or design, quick technical support and competitive price will be provided.
